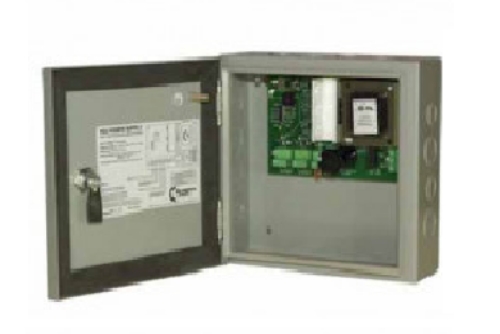

Cal-Royal CRPS2 Power Supplies for Electrified Exit Device

Cal-Royal CRPS20*Power Supplies for Electrified Exit Device - for Two Electric Exit Devices*

Features:

CRPS2 Enclosure dimensions: 11" x 11" x 4"

Delivers the necessary in-rush current to power two latch pullback exit devices

Two independent inputs / outputs

Solid-state design eliminates problems associated with mechanical relays

Thermal overload sensing reduces risk of failure due to overheating

Fire alarm disconnect link

Intelligent short circuit detection detects shorts much faster than fuses and isolates the short to the individual output

Removable Euro-style terminal blocks allow for easy installation

No hassle 3-year warranty

Specifications:

Input voltage - 120V AC, 60 Hz

Output voltage - 24V DC unregulated @ 2A

Temperature Range - 0 degree to 120 degree F

2 Solid-State input / output (input triggered by dry contact)

Power Tap - Continuous 24V DC @ .5A

LEDs - RED = Power indicator GREEN = Output indicator ORANGE = Battery Output Indicator

Model:Cal-royal CRPS2
