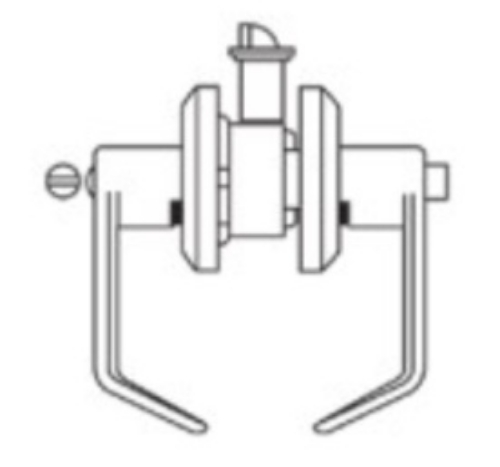

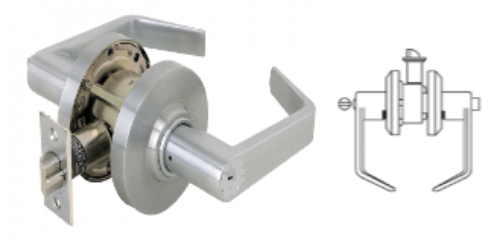

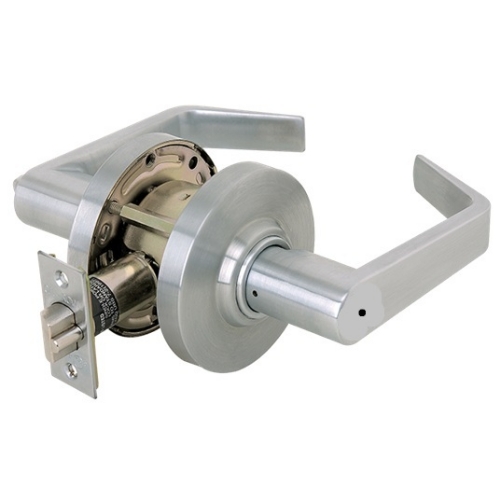

Cal-Royal CXP20 Grade 2, Privacy Lock - With Clutch

Cal-Royal CXP20 Grade 2, Privacy Lock -*With Clutch - ANSI: F76*

Latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside. Turning inside lever or closing door release push button.

Clutch:Featuring CLUTCH System, free turning handle to deter breaking of the handle. Fits all Major Manufacturers Thru Bolt Locations.

Door Range- 1-3/8" to 2" thickness doors.

Backset- 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike- ASA strike standard, "T" and full lip strike available.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

model:Cal-Royal CXP20,Cal-Royal CXP20US26D,Cal-Royal CXP20US10B,Cal-Royal CXP20US26,Cal-Royal CXP20US4,Cal-Royal CXP20US3,

ANSIStandards - Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim- Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
