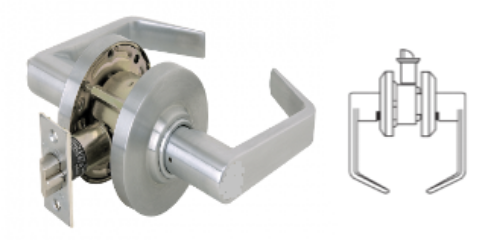

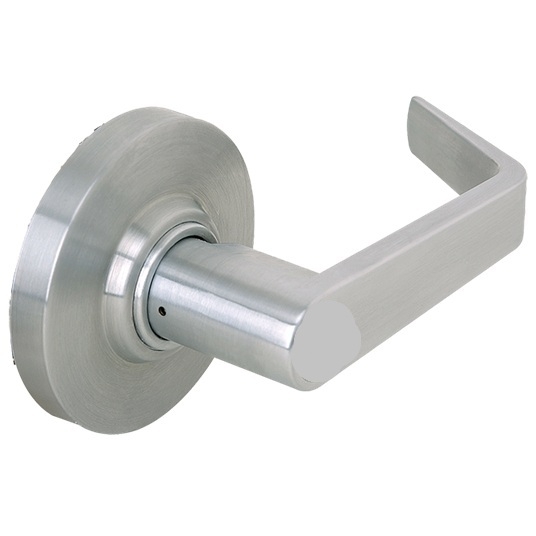

Cal-Royal XP30 Grade 2, Passage Set

Cal-Royal XP30 Grade 2, Passage Set - ANSI: F75

Latch bolt operated by lever from either side at all times.

Fits all Major Manufacturers Thru Bolt Locations.

Door Range- 1-3/8" to 2" thickness doors.

Backset- 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike- ASA strike standard, "T" and full lip strike available.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

model:Cal-Royal XP30,Cal-Royal XP30US26D,Cal-Royal XP30US10B,Cal-Royal XP30US26,Cal-Royal XP30US4,Cal-Royal XP30US3,

ANSIStandards - Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim- Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
