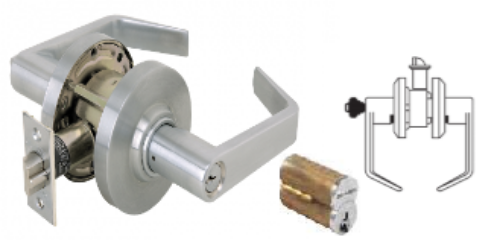

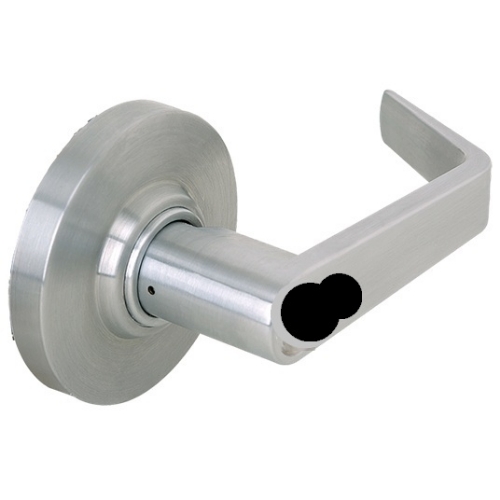

Cal-Royal ICXP05 Grade 2, Storeroom Lock - Accepts SFIC Core

Cal-Royal ICXP05 Grade 2, Storeroom Lock - Accepts Small-format Interchangeable Core (SFIC) (core not included)

Dead locking latch bolt operated by key in outside lever or by rotating inside lever. Outside lever is always fixed.

Fits all Major Manufacturers Thru Bolt Locations.

Door Range- 1-3/8" to 2" thickness doors.

Backset- 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike- ASA strike standard, "T" and full lip strike available.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

Interchangeable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

Keys:2 keys per lock.

model:Cal-Royal ICXP05,Cal-Royal ICXP05US26D,Cal-Royal ICXP05US10B,Cal-Royal ICXP05US26,Cal-Royal ICXP05US4,Cal-Royal ICXP05US3,

ANSIStandards - Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim- Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
