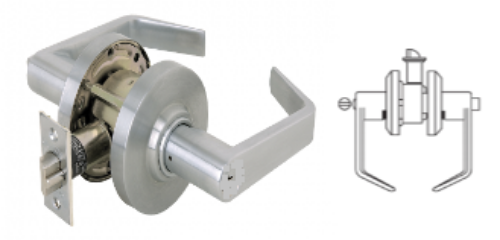

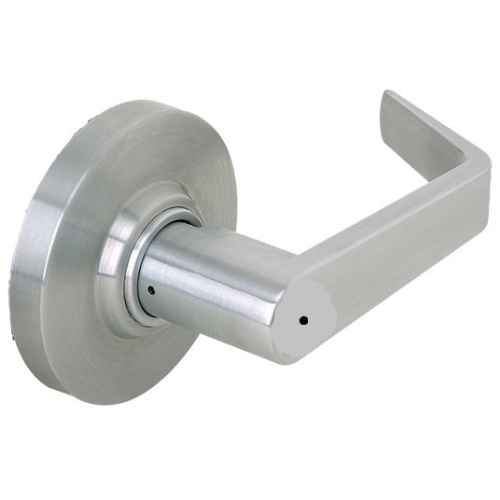

Cal-Royal XP20 Grade 2, Privacy Lock

Cal-Royal XP20 Grade 2, Privacy Lock - ANSI: F76

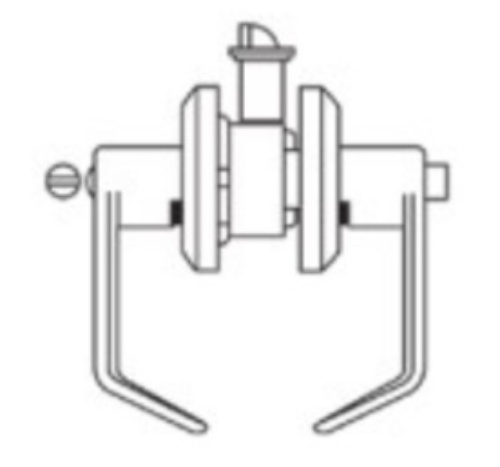

Latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside. Turning inside lever or closing door release push button.

Fits all Major Manufacturers Thru Bolt Locations.

Door Range- 1-3/8" to 2" thickness doors.

Backset- 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike- ASA strike standard, "T" and full lip strike available.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

model:Cal-Royal XP20,Cal-Royal XP20US26D,Cal-Royal XP20US10B,Cal-Royal XP20US26,Cal-Royal XP20US4,Cal-Royal XP20US3,

ANSIStandards - Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim- Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
