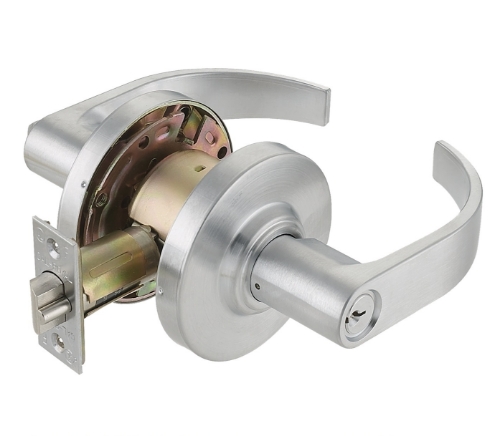

Cal-Royal CXPRL03 Grade 2, Classroom Lock - With Clutch

Cal-Royal CXPRL03 Grade 2, Classroom Lock -*With Clutch*

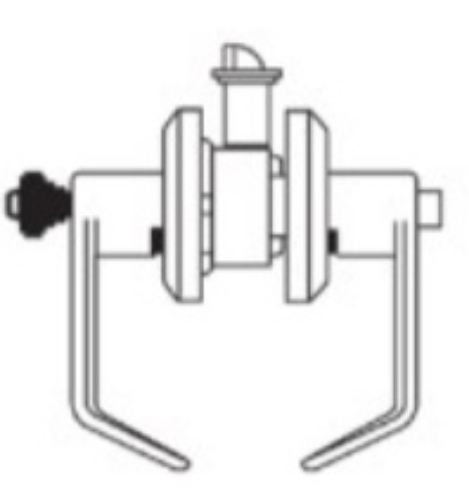

Dead locking latch bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latch bolt is operated by turning inside lever.

Clutch: Featuring CLUTCH System, free turning handle to deter breaking of the handle.

Fits all Major Manufacturers Thru Bolt Locations.

Door Range- 1-3/8" to 2" thickness doors.

Backset- 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike- ASA strike standard, "T" and full lip strike available.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

Cylinders & Keyways- 6 pin solid brass "C" keyway standard

Keys:2 keys per lock.

model: Cal-Royal CXPRL03, Cal-Royal CXPRL03US26D, Cal-Royal CXPRL03US10B,Cal-Royal CXPRL03US26, Cal-Royal CXPRL03US4, Cal-Royal CXPRL03US3,

ANSIStandards - Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim- Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
