About this item

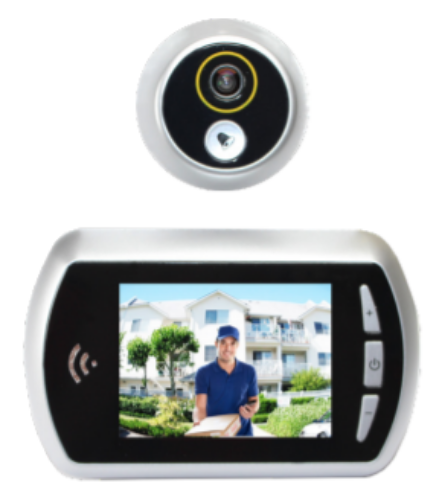

The Cal-Royal ELDVBEL150 addresses all three at once. It's a 3.5-inch LCD digital door viewer with an integrated doorbell, a 160-degree camera, automatic night vision, and image storage for up to 100 captures. The screen mounts on the inside of the door at any height. The outside camera lens blocks reverse viewing. Whoever is at the door cannot tell whether anyone has looked at them.
It fits existing door bores from 1/2" to 1-1/8" diameter without modification and requires no external wiring. Battery powered with three AA batteries included, it installs in minutes on any door between 1-3/8" and 2-3/8" thick. For other builders hardware accessories and exterior door products, browse our full builders hardware catalog.
How the ELDVBEL150 Works
When a visitor presses the doorbell button on the outside camera unit, two things happen at once: a 4-cycle audible chime sounds inside, and a live video image of the area outside the door appears on the 3.5" LCD monitor. The image is stored automatically. You can view it immediately or retrieve it later from the 100-image internal storage, which creates a visual log of every doorbell activation without any network connection, subscription, or app.
The 0.3 megapixel CMOS camera captures 160-degree wide-angle images that show the full door area rather than the narrow tunnel view of a standard peephole. The built-in automatic infrared (IR) feature activates in low-light and nighttime conditions without any manual switching. You get a clear image in darkness that a conventional peephole cannot provide.
ELDVBEL150 Technical Specifications
Camera resolution: 0.3 megapixel CMOS. Camera viewing angle: 160 degrees. Night vision: built-in automatic infrared (IR), activates in low light. Display: 3.5" TFT LCD, 320 x 240 resolution. Image storage: up to 100 images, automatic capture on doorbell activation. Doorbell: yes, 4-cycle audible chime. Bore compatibility: 1/2" to 1-1/8" (13mm to 29mm). Door thickness: 1-3/8" to 2-3/8" (35mm to 60mm). LCD unit base dimensions: 3-1/2" H x 5-1/2" W (90mm x 140mm). LCD unit top dimensions: 2-3/4" H x 5" W (83mm x 108mm). LCD unit projection from door face: 1" (25mm). Viewer lens material: brass tubing and plastic lens. Power: 3 x AA batteries (1.5V DC), included. Battery life: approximately 1,500 x 15-second viewing cycles, approximately 1 year in normal use. External wiring required: none. Weight: 8.5 oz (240g) net. Installation: standard power drill, new construction or retrofit. Finishes: Silver, Gold, DURO (Duranodic Dark Bronze).
Why Electronic Over Conventional for Commercial Applications
For hotel room doors, apartment unit entry doors, hospital patient rooms, and commercial office suite doors, the electronic viewer solves the accessibility problem that conventional peepholes create. A standard peephole is drilled at one height. An occupant in a wheelchair, a child, or a shorter adult cannot comfortably use it. The ELDVBEL150's inside LCD monitor can be viewed from a seated position or at arm's length, making it accessible to any occupant without crouching or standing on tiptoe.
The 100-image storage log is also valuable for commercial applications where door activity documentation matters. Every doorbell activation is automatically captured and stored. That's a security record that a conventional peephole can never provide.
Available Finishes
Silver, Gold, and DURO (Duranodic Dark Bronze) to complement adjacent door hardware finishes. For additional electronic hardware and access control products, browse our electronic hardware catalog.
