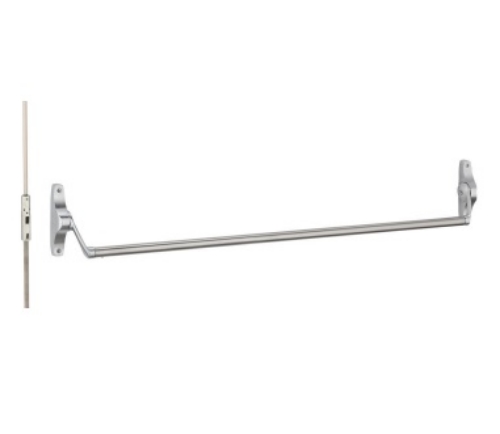

Von Duprin 5547-EO Concealed Vertical Rod Device

Von Duprin 5547-EO Concealed Vertical Rod Device - Exit Only

5547-EO concealed vertical rod devices for use on single or doublemetal doors. UL listed for accident hazard installations and fits door stiles as narrow as 1-3/4" (44mm). Specify if 2-1/4 " door

Crossbar length:42" (1067mm), Field sizeable.

Door height:if other than 8' (2438mm), extension rods must be ordered.

Finishes:US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US10B - Oil Rubbed Bronze, US26 - Bright Chrome, US26D - Satin Chrome.

Strike:Device is furnished with 471U and 304L Strikes.

Dogging Feature:Hex key dogging standard

Fasteners:Sex nuts and bolts for mounting are included for 1-3/4" (44mm) and 2-1/4" (57mm) thick doors.

Latch Bolt:1/2" (13mm) (MD) or 5/8" (16mm) WD throw latch bolt

Crossbar height to finished floor:36-13/16" (1011mm) at center

Fits door stiles as narrow as 1-3/4" (44mm)

All 55 series exit devices are UL listed for Accident Hazard or Fire Exit Hardware, and are tested in accordance to ANSI A156.3, 1994, Grade I.

Model:Von Duprin 5547EO, US3, US4, US10, US10B, US26, US26D
