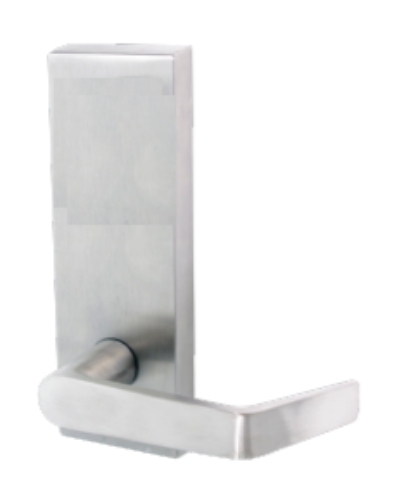

Cal-Royal ESC3330 Passage Exit Device Escutcheon Lever Trim - Stainless Steel

About this item

Cal-Royal ESC3330 Passage Exit Device Escutcheon Lever Trim - Stainless Steel

Passage, always operable and free. ANSI FUNCTION (14)

Non-Ferrous Alloy Material

Clutch Mechanism

Double Heavy Duty Spring Support to prevent sagging and enhance operation

Grade 1, Thru-Bolted design. Non-Handed design.

Easily field reversible

Includes Adjustable Heavy Duty Steel Spindle.

Available for Fire and Non-Fire Rated Rim and Vertical Rod Exit Devices

Door Thickness: Standard 1 3/4" to 2 1/4". Use Adjustable Spindle for 1 3/4", 2, 2 1/4" door thickness.

Escutcheon dimensions: 2 5/8" width x 8 1/16" length. Lever length: 4 5/8". Fits and covers 2 1/8" 161 cutout

 Model: Cal-Royal ESC3330,

Resources

• https://www.cal-royal.com/files/6600_Accessories.pdf
