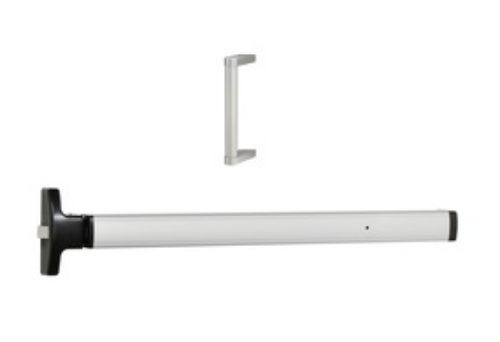

Falcon 1794NL-P/HB-P Rim Type Touchbar Night Latch/Hold Back with Pull, with 179CA, Rim Cylinder and 9970 Pull

Falcon 1794NL-P/HB-P Rim Type Touchbar Night Latch/Hold Back with Pull, with 179CA, Rim Cylinder and 9970 Pull

NL-P- Night latch with key retracts latch but does not unlock exit device with pull.

HB-P- Hold back with pull key retracts latch and holds latch back.

9970 Pull, Can be used with all devices (not for use on wood doors).

Length: 36"Minimum door size:  30"

Hand:Field reversible, non-handed

Strikes:PB48 top.

Latches:Standard top - SU latch. Standard bottom - hex bottom bolt.

Dogging feature:Hex key dogging standard, except EL where must use hold back feature on outside cylinder.

Doors:1 3 ⁄4" thick metal doors, specify if other.

Projections:3 3 ⁄8" in neutral position, 2 3 ⁄8" in dogged position. Pushbar height is 2 1 ⁄2".**

Stile:1 3 ⁄4" minimum.

Fasteners:All machine screw mounting. Device mounting fasteners are concealed, latch fasteners are exposed to egress side.

End caps:Black powder-coated metal end caps.

Vertical rods:7' standard, extension rods available up to 10'. Rod extension kits available.

ANSI:Certified ANSI A156.3 grade 1 standards.

High security:1690 High security devices are used for hurricane rated door openings. Consult door manufacturer’s listing.

**

**
