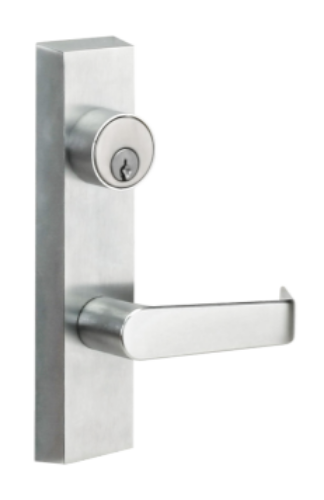

Cal-Royal GLSCVR9800 Entrance Exit Device Escutcheon Lever Trim, For Narrow Stile Exit Devices

Cal-Royal GLSCVR9800 Entrance Exit Device Escutcheon Lever Trim, For Narrow Stile Exit Devices

Clutch free-wheeling Entrance, key locks or unlocks escutcheon trim ANSI Function (08) Operates as classroom function

Free-wheeling clutch mechanism.

Grade 1, thru-bolted design. Reversible design

Hardened steel heavy duty tailpiece

Door Thickness:Standard 1 3/4"

Escutcheon Dimensions:1 13/16" width X 8" length Lever length: 5"

Keyway:6 pin solid brassCkeyway Mortise Cylinder standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59/60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow 1C, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa and Kaba High Security Cylinders.

(IC) Interchangeable Core:Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

(ICSC) Interchangeable Core:Indicates function available with Schlage Full size format Interchangeable Core.
