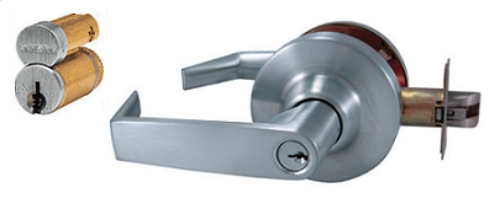

Design Hardware DH-Z-86SLFIC-F Storeroom Lever Lockset - Accepts Schlage LFIC Core

Product Details

Design Hardware DH-Z-86SLFIC-F Grade 2 Storeroom Lever Lockset - Accepts Schlage LFIC Core, (core not included)

Function Description:Storeroom-Deadlocking latchbolt operated by key in outside lever or rotating inside lever. Outside lever is always locked.

ANSI No.F86

Clutching:Clutching levers standard for vandal resistance on locking functions

Standard Latch:2 3/4" backset with 1 1/8" x 2 1/4" latchface - Stainless steel latch bolt with 3/4" projection

Optional Latches:2 3/4" backset with 1 1/8" x 2 1/4" latchface - Stainless steel latch w/ 1/2" projection 2 3/8" backset with 1" x 2 1/4" latchface - Stainless steel latch w/ 1/2" projection Door Thickness: Factory Set for 1 3/4" can be adjusted to fit 1 3/8" up to 2 thick Door Preparation: ANSI A115.2 - 2 1/8" crossbore with (2) 5/16" thru bolt holes

Lever Style:F-Flat Lever

Product Type:Cylindrical Lock

Rose/Escutcheon Trim:Round Rose

Series: Z Series

Strike:ANSI, 1-1/4" x 4-7/8" standard - T strike & Full lip strikes available

Cylinder :  Prepared for Schlage Large Format IC core (less core)

Handing :Non-Handed-Completely reversible

Model: Design Hardware DH-Z-86SLFIC-F-26D, DH-Z-86SLFIC-F-26D,

Design Hardware DH-Z-86SLFIC-F Storeroom Lever Lockset - Accepts Schlage LFIC Core

SKU: DH-Z-86SLFIC-F-26D

In Stock

Finish *

US26D - Satin Chrome
US26D - Satin Chrome

$171.86

$290.70

You saved $118.84

About this item



Design Hardware DH-Z-86SLFIC-F Grade 2 Storeroom Lever Lockset - Accepts Schlage LFIC Core, (core not included)

Function Description:Storeroom-Deadlocking latchbolt operated by key in outside lever or rotating inside lever. Outside lever is always locked.

ANSI No.F86

Clutching:Clutching levers standard for vandal resistance on locking functions

Standard Latch:2 3/4" backset with 1 1/8" x 2 1/4" latchface - Stainless steel latch bolt with 3/4" projection

Optional Latches:2 3/4" backset with 1 1/8" x 2 1/4" latchface - Stainless steel latch w/ 1/2" projection 2 3/8" backset with 1" x 2 1/4" latchface - Stainless steel latch w/ 1/2" projection Door Thickness: Factory Set for 1 3/4" can be adjusted to fit 1 3/8" up to 2 thick Door Preparation: ANSI A115.2 - 2 1/8" crossbore with (2) 5/16" thru bolt holes

Lever Style:F-Flat Lever

Product Type:Cylindrical Lock

Rose/Escutcheon Trim:Round Rose

Series: Z Series

Strike:ANSI, 1-1/4" x 4-7/8" standard - T strike & Full lip strikes available

Cylinder :  Prepared for Schlage Large Format IC core (less core)

Handing :Non-Handed-Completely reversible

Model: Design Hardware DH-Z-86SLFIC-F-26D, DH-Z-86SLFIC-F-26D,

Design_Hardware_DH_Z_LFIC
Design Hardware DH-Z-86SLFIC-F Storeroom Lever Lockset - Accepts Schlage LFIC Core

Product code: DH-Z-86SLFIC-F-26D

In Stock

$290.70

$171.86

ANSI :Meets & Exceeds ANSI  A156.2, Series 4000, Grade 2 Standards

UL Listings :UL Listed for "A" Label 3 Hour Fire Doors

ADA Compliance: Meets ADA and ANSI A117.1 accessibility codes Features

Cycle Testing:Tested to over 2 Million Cycles

Lock Chassis :Steel, Zinc dichromated for Corrosion Resistance Trim : 5 Solid zinc diecast levers, 3 3/8 wrought brass roses Lever Return: Anti-sag mechanism with independent lever return springs to prevent lever sag

Lead Lining Option:1/32" lead lined rose & 1/32" lead wrapped latch bolt (requires 1" bore)


Standard Lever Design :Flat (standard - stocked in US26D and US10B) Standard Finish : US26D & US10B (in stock in flat lever) Fasteners : Combination screws for wood or metal doors & frames Warranty : Limited Lifetime Warranty
