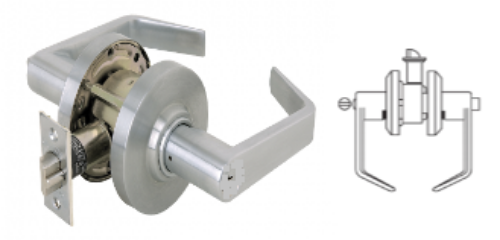

Cal-Royal HCXP20 Grade 2, Hospital Privacy Lock - With Clutch

Cal-Royal HCXP20 Grade 2, Hospital Privacy Lock*- With Clutch - ANSI: F76*

Latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by turning turn button. Turning inside lever or closing door releases push button.

Clutch:Featuring CLUTCH System, free turning handle to deter breaking of the handle.

Fits all Major Manufacturers Thru Bolt Locations.

Door Range- 1-3/8" to 2" thickness doors.

Backset- 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike- ASA strike standard, "T" and full lip strike available.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

model:Cal-Royal HCXP20,Cal-Royal HCXP20US26D,Cal-Royal HCXP20US10B,Cal-Royal HCXP20US26,Cal-Royal HCXP20US4,Cal-Royal HCXP20US3,

ANSIStandards - Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim- Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
