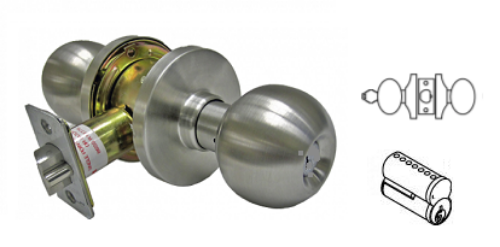

Cal-Royal ICGRB05-US32D Storeroom Lock - Satin Stainless Steel - Accepts SFIC Core

Cal-Royal ICGRB05-US32D Storeroom Lock - Satin Stainless Steel*- Accepts Small-format Interchangeable Core (SFIC) (core not included) *- ANSI F86

Deadlocking latchbolt operated by key in outside knob or rotating inside knob. Outside knob is always fixed.

Finish- US32D - Satin Stainless Steel

Exposed Trim- Wrought brass, bronze or stainless steel.

Door Ranges- Adjustable for 1-3/8" to 2" door thickness.

Backset- Standard 2-3/4", 2-3/8" available.

Strike- ANSI strike (standard) 4 7/8" x 1 1/4". Optional "T" or full lip strike available.

Small Format IC available combinated or uncombinated, 6 or 7 pin cores with BEST, FALCON, and ARROW.

Bore Diameter- 1" for latch. 2 1/8" for lock housing.

Handing- Completely reversible

Meets or exceeds requirements of BHMA/ANSI 156.2 series 4000 for grade 1 (FF-H-106C)

Model: Falcon GRB, GRB05, GRB05US32D, GRB0532D

Heavy duty crush-proof knobsThreaded roses hold lock firmly in place, tighten by special wrench furnished with each lockCorrosion treated steel housing 2- 1/16" diameterAnchor SpringCalibrated anchor for visible door thickness adjustmentLong bearing length for smooth, wear resistant operationCylinder knob removable for rekeying or replacementHigh precision 6-pin tumbler solid brass cylinder. Interchangeable with leading manufacturer cylinders3" Diameter rose and mechanism adjustment for various door thicknessHeavy gauge cold rolled steel spindles add greater strength and securityCast steel retractor with roller bearings and coil compression springs provide strength and durability1/2" Throw solid brass latch bolt, reversible and adjustable for flat or beveled doors. UL listed for A label (3 hour) single swing doorFriction grip nylon rings to resist roses looseningEasy operating turn/push button
