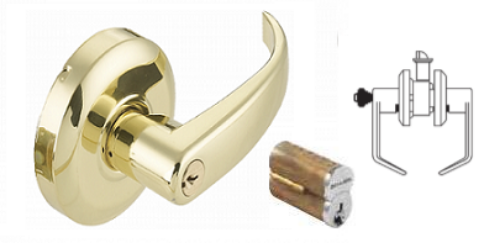

Cal-Royal ICRL03 Classroom Lock - Accepts SFIC Core

Cal-Royal ICRL03 Classroom Lock - Accepts Small-format Interchangeable Core (SFIC) (core not included)  -ANSI F84

Dead locking latch bolt operated by lever from either side except when outside lever is locked from outside by key. When outside lever is locked, latch bolt is operated by turning inside lever.

ANSI:Grade 2 Lock

Door Range:- 1-3/8" to 1-3/4" thickness doors.

Backset:- 2-3/4" Standard, 2-3/8", 3-3/4" and 5" optional.

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike:ASA strike standard, "T" and full lip strike available on request.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed. Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

Interchangeable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

Keying with control key and masterkey available.

Tactile & Lead Lining - Available upon request.

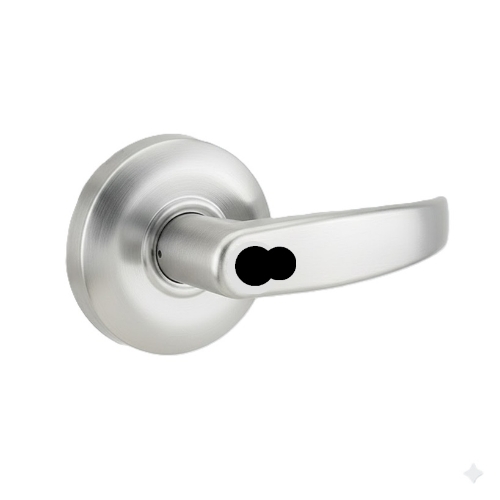

Model:Cal-Royal ICRL03,Cal-Royal ICRL03US26D,Cal-Royal ICRL03US1,Cal-Royal ICRL03US,3Cal-Royal ICRL03US4,Cal-Royal ICRL03US10,Cal-Royal ICRL03US10BE,Cal-Royal ICRL03US26,

ANSI Standards - Meets or exceeds requirements of BHMA/ANSI A 156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim - Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
