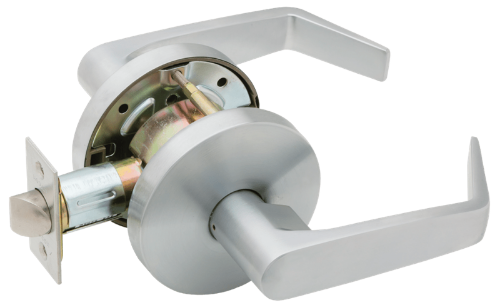

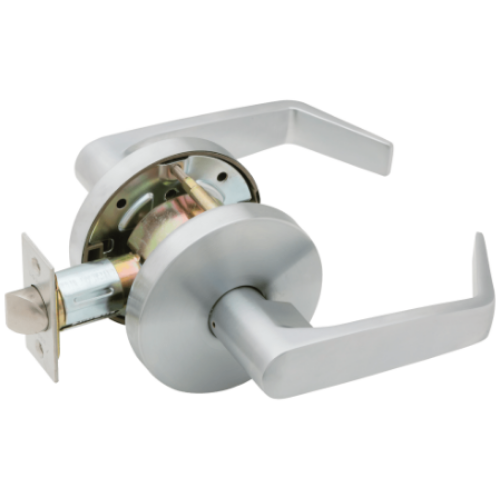

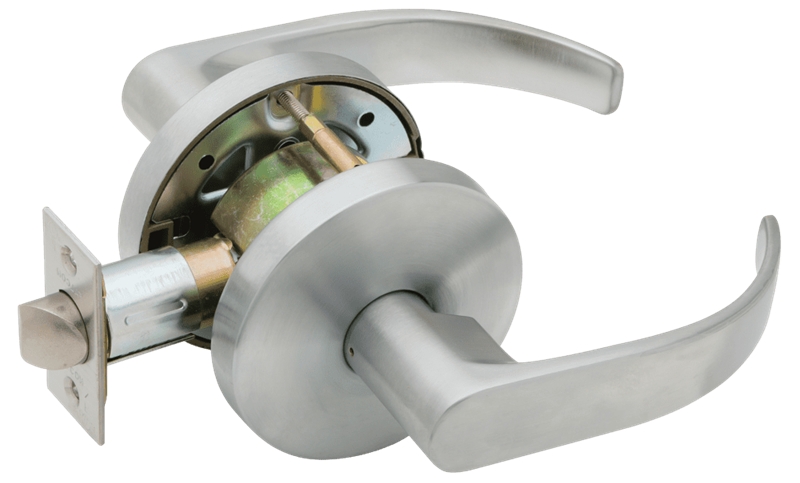

Falcon W101S - Grade 2 Passage Lever Set

Falcon W101S - Grade 2 Passage Lever Set -*ANSI F75*

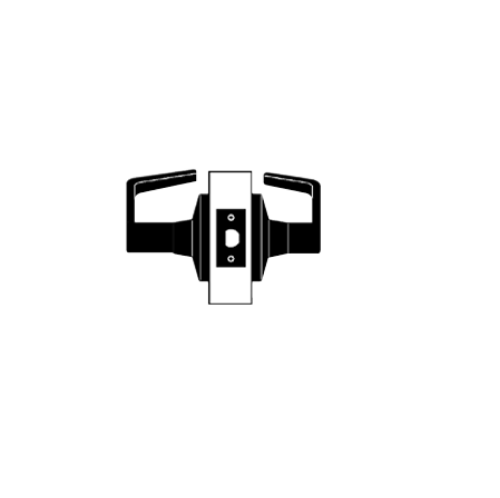

Latch bolt by levers at all times.

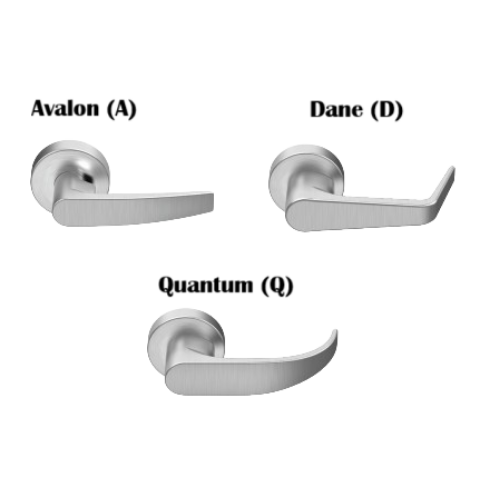

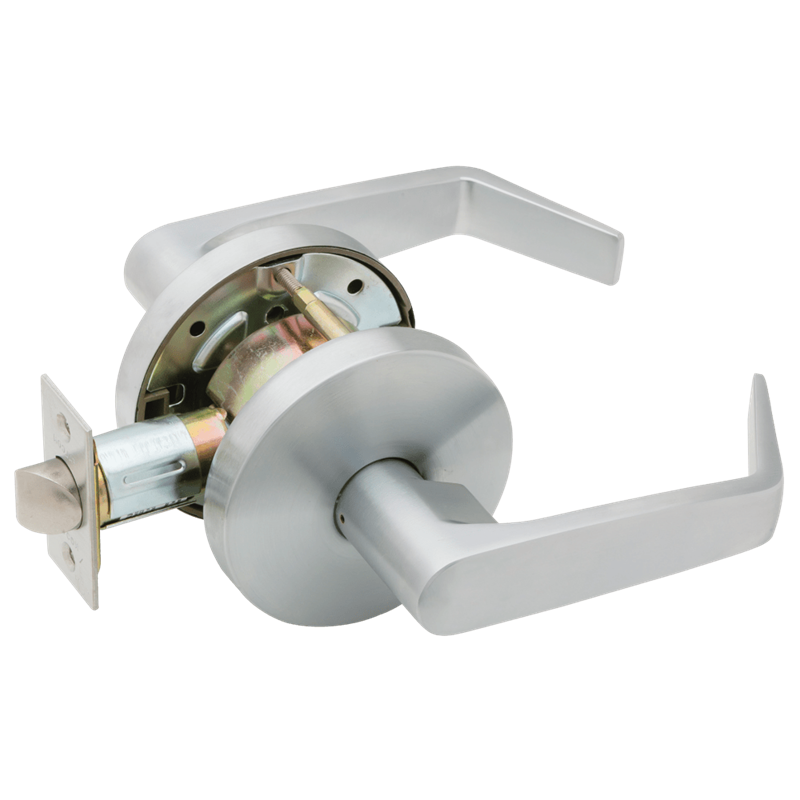

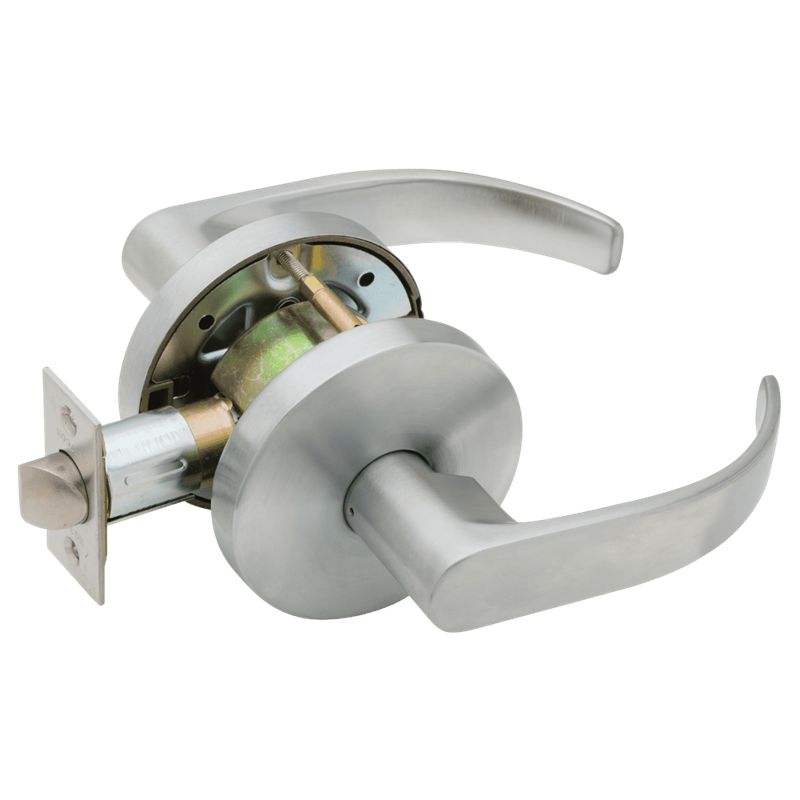

Lever:D - Dane, Q - Quantum

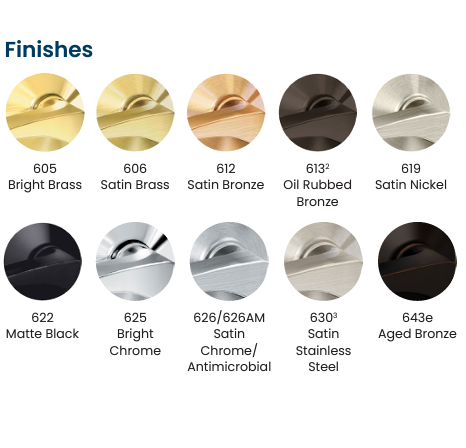

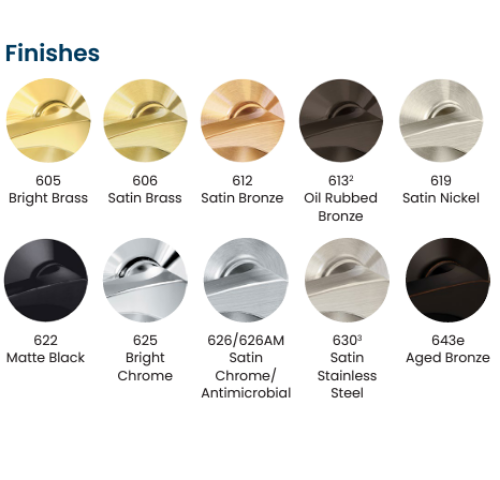

Finishes:Bright brass 605, Satin brass 606, Satin bronze 612, Oil rubbed bronze 613, Bright chrome 625, Satin chrome 626 Door Thickness: 1-3/8" to to 1-3/4" standard.

Backset:2-3/4" standard; 2-3/8" also available.

Handing:Locks are non-handed.

Trim:Roses are 3-5/8" diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.

Latches:1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8backset with 2-1/4" x 1latch faces or 2-3/4" backset with 2-1/4" x 1-1/8" latch faces.

Strikes:4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.

ANSI/BHMA:Meets ANSI/BHMA A156.2, Series 4000, Grade 2.

UL:3 hour A label.

Model:Falcon, W101, W101S, W101SD, W101SQ, W101SDAN, W101SQUA,  101SD626, W101SQ626, W101SDAN626, W101SQUA626, W101SD625, W101SQ625, W101SDAN625, W101SQUA625, W101SD605, W101SQ605, W101SDAN605, W101SQUA605, W101SD606, W101SQ606, W101SDAN606, W101SQUA606, W101SD613, W101SQ613, W101SDAN613, W101SQUA613

Mechanism:Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment:Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.

Screws:Furnished with combination screws for use in wood or metal doors and frames.
