Falcon MA441 DN Grade 1 Classroom Security Mortise Lock

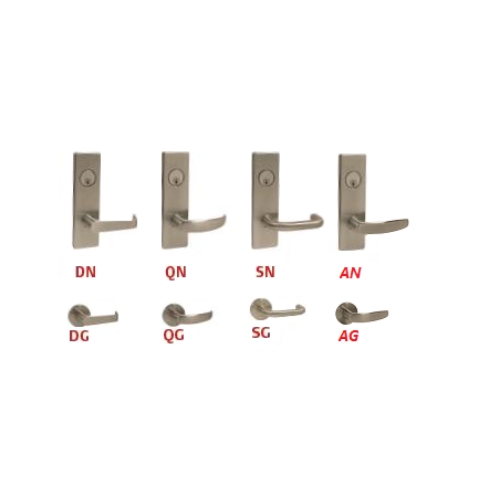

Falcon MA441 DN Classroom Security Mortise Lock - ANSIF32 - Dane Lever with Napa Escutcheon

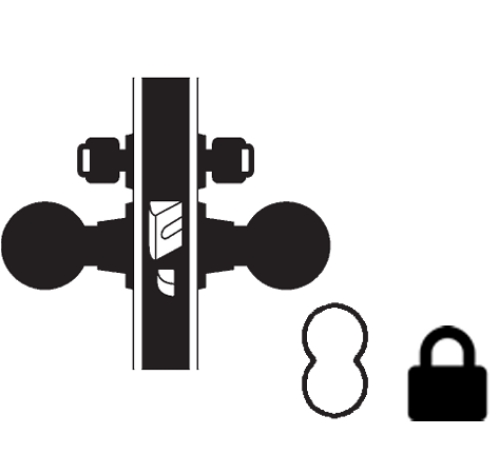

Latch bolt operated by knob/lever from either side except when outside knob/lever is locked from inside or outside by key. When outside knob/ lever is locked, latch bolt is retracted by key from inside or outside or by operating inside knob/lever. Auxiliary dead latch.

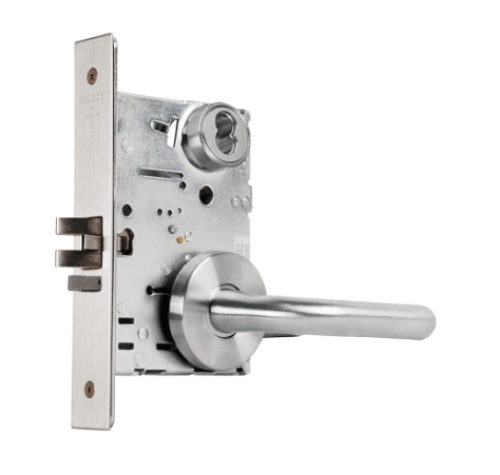

MA Series Lock Features

Door thickness: Standard accommodates thickness of 1-3/8to 2-1/2".

Backset: 2-3/4only.

Case: Cold formed steel, zinc dichromate plated, .090thick.

Hubs: Hardened steel.

Handing: Right hand is standard; left hand optional. Reversible in the field.

Cylinders: Solid brass cylinder and plug.Standard mortise cylinders are furnished as 5-or 6-pin as standard. 6 or 7-pin are available on interchangeable core cylinder.

Furnished with two nickel silver keys standard

Keyways: G keyway standard on standard cylinder. A keyway standard on I/C cylinder.

Bind Resistant Trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment. Provided with 8-32 screws for strength and thread sealant to prevent loosening.

Latch Bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3/4projection.

Dead Bolt: 1throw, stainless steel with two 13/16diameter hardened steel, free-turning, saw-resistant roller.

Faceplates: (Armored Front) 1-1/4x 8brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.

Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.

Electrified Functions: Available in 12 or 24 VDC. ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000.

UL: 3 hour A label.
