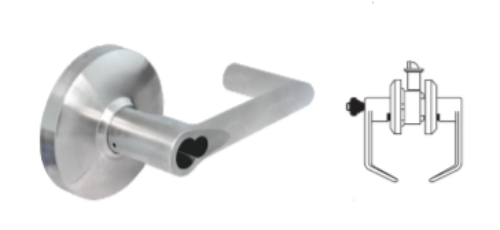

Cal-Royal ICSCCAUG05 Grade 1 Storeroom Lock - Accepts Schlage LFIC Core

Cal-Royal ICSCCAUG05 Grade 1,*Storeroom Lock*- Accepts Schlage Large-format Interchangeable Core (LFIC) (core not included) - ANSI F86

Deadlocking latch bolt operated by key in outside lever or by rotating inside lever. Outside lever is always locked

ANSI:A 156.2 Series 4000, grade 1.

Non-handed levers.

Backset:UL Listed 2 3/4" backset, 2 1/4" x 1 1/8" faceplate standard. 2-3/8" backset also available.

Strike:ASA - 4-7/8" x 1-1/4" Strike standard. 2-1/4" full lip or 2-3/4" x 1-1/8" T-strike also available.

Clutch:Featuring CLUTCH System, free turning handle to deter breaking of the handle.

Housing:Cold rolled steel and zinc dechromate finish for rust resistance with precision cast steel retractor. 2-1/8" diameter bore. Trim: Thru-bolted assembly through door with separate spring cage for each lever. Matching design to SL Series Grade 2 levers.

Lever:Full length 4-3/4" lever handle with 3/8" return on GN and SPA Design.

Rose:Rose diameter 3-1/2".

Key removable outside lever for fast rekeying.

Concealed mounting screws.
