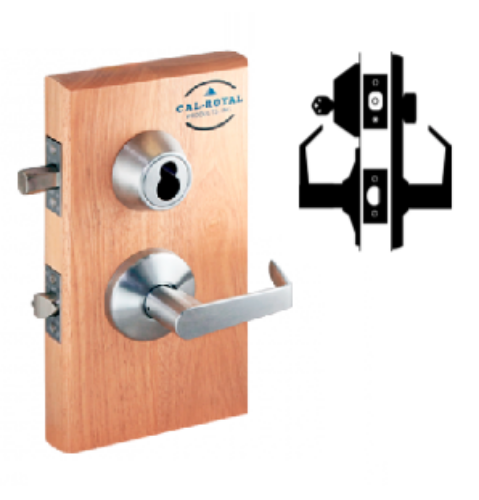

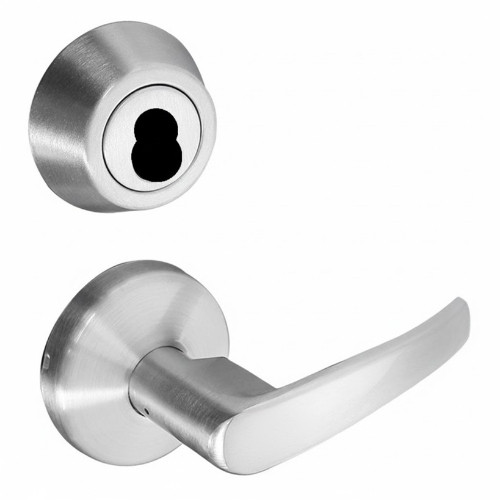

Cal-Royal ICSCJHIL30 Single Locking, Interconnected Passage Lever Lock - Accepts Schlage LFIC Core

Cal-Royal ICSCJHIL30*SingleLocking, Interconnected Passage Lever Lock- Accepts Schlage Large format Interchangeable Core (LFIC) (core not included)-4" Or 5 1/2" CTC Bore*

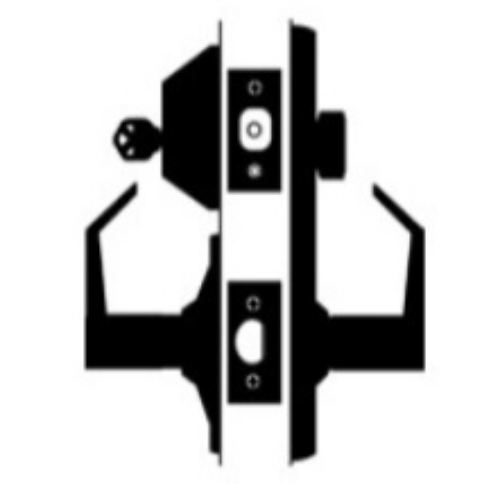

FUNCTIONS:*ANSI: F95*-Deadbolt thrown or retracted by key in upper lock from outside or by inside turn unit. Latch bolt retracted by lever from either side. Lever retracts deadbolt and latch bolt simultaneously for immediate exit.

DOOR RANGE: 1 3/8" - 1 3/4" door thickness.

ANSI STANDARDS: Meet ANSI A156.12 Series 5000 Grade 2 Requirements.

STRIKES: Standard "T" strike furnished with lockset. 2 3/4" x 1 1/8" square strike with deadbolt.

ESCUTCHEON: 9 3 /16" x 3 3 /16" brass plated. Packed with interior escutcheon. Optional external escutcheon available.

DEADBOLT: 1" Throw. UL-Listed Adjustable 2 3/4" or 2 ⅜" Brass with hardened steel pin. Standard 2 1/4" x 1" face plate, packed with plastic filler for 1 ⅛" door preparations.

LATCH BOLT: 1/2" Throw. UL-Listed for 3 hour doors. 2 3/4" standard backset.

LATCH FACEPLATE:  Standard 2 1/4" x 1" face plate, packed with plastic filler for 1 1/8" door preparations.

HOUSING: Steel and Zinc dichromate finish for rust resistance.

Model:Cal-Royal ICSCJHIL30,Cal-Royal ICSCJHIL30US26D,Cal-Royal ICSCJHIL30US3,Cal-Royal ICSCJHIL30US10B,Cal-Royal ICSCJHIL30US15,

GENERAL SPECIFICATIONS: Simultaneous retraction on both latch and deadbolts from inside by turning the lever in a panic-proof exit situation. Top lock is heavy duty deadbolt with the bottom lock having a cylindrical body. High security with a double locking point using the keyed lock function.
