Cal Royal NM8440 Heavy Duty Grade 1, Privacy with Deadbolt Mortise Lockset

Restrooms, exam rooms, hotel suites, dressing rooms, and single-occupancy offices all share one hardware requirement: the occupant needs to lock the door from the inside without a key, and building staff need a way in during an emergency without one either. The Cal-Royal NM8440 handles both. It's a Grade 1 privacy with deadbolt mortise lockset, ANSI Function F19, built to the Extra Heavy Duty ANSI A156.13 Series 1000 standard, exceeding one million operating cycles and carrying a UL Listed 3-hour fire rating.

For the full Cal-Royal NM Series function lineup, browse Cal-Royal mortise locks, or view all commercial mortise locks across every brand we carry.

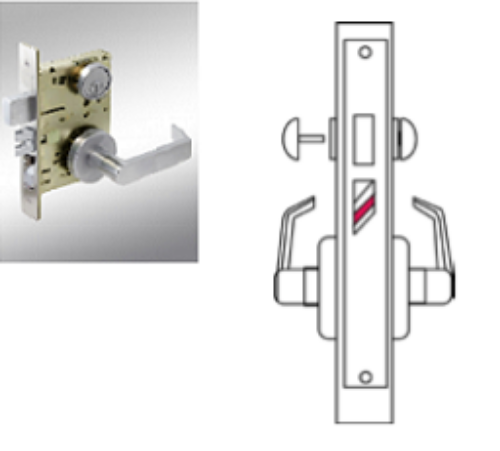

How the NM8440 Privacy with Deadbolt Function Works

The NM8440 is ANSI Function F19, which means it's a keyless privacy function with a full 1" deadbolt. Here's exactly how it operates. The latch bolt is retracted by the lever from either side at all times when the deadbolt is not engaged. When the occupant turns the inside thumbturn, two things happen simultaneously: the deadbolt extends 1" into the strike, and the outside lever is locked out completely. No key, no handle turn from outside will open the door. From the inside, rotating the inside lever simultaneously retracts the deadbolt and the latch bolt and unlocks the outside lever in one motion, for immediate egress without any extra steps. For emergency access from outside, a building manager inserts a small coin or emergency tool into the access hole in the outside trim and rotates, retracting the deadbolt without damaging the lock or the door.

This is the correct function for occupied spaces where momentary privacy is required, as distinct from ANSI F19B (the NM8445, which adds a visual "OCCUPIED" indicator and outside coin turn) or ANSI F22 (privacy bedroom/bath without a deadbolt).

Cal-Royal NM8440 Technical Specifications

ANSI function: F19, Privacy with Deadbolt. Keyless. ANSI standard: A156.13, Series 1000, Extra Heavy Duty, Operational and Security Grade 1. Federal Specification Type 86 conformance. Cycle test: exceeds 1,000,000 cycles. UL Listed fire rating: "A" Label, 3-hour, for use on single and pairs of fire doors. UL10C and UBC 7-2-1997 compliant. BHMA Certified Lifetime Warranty. Meets Buy American Act. Hurricane approved: Florida Building Code FL13922-R8 and Texas Evaluation ID DR-472. Door thickness: 1-3/4" standard. Backset: 2-3/4". Handed: yes, easily field reversible. Deadbolt: 1" throw, brass, chrome plated with hardened steel rollers. Latch bolt: brass, chrome plated, heavy-duty deadlatch. Lock case: heavy gauge zinc chromate steel. Front plate: heavy gauge steel, 8" x 1-1/4" x 3/32", accommodates flat doors and doors beveled 1/8" in 2". Armored front: wrought brass attached by machine screws to lock the case front. Strike: non-handed curved brass, 4-7/8" x 1-1/4", "F" mark stamped, curved-up strike available on request. Emergency outside access: coin or emergency tool via access hole in outside trim.

Why the Hardened Steel Deadbolt Rollers Matter

Most buyers focus on the Grade 1 certification and miss the deadbolt detail. The NM8440's 1" deadbolt is brass with chrome plating and hardened steel rollers on the bolt face. Those rollers reduce friction on the strike, which extends the useful life of both the deadbolt and the strike under repeated daily use. On a restroom door that gets locked and unlocked hundreds of times per day, that's the difference between a lock that works for decades and one that starts dragging after a few years.

Available Finishes and Interchangeable Core Options

The NM8440 is available in six standard ANSI/BHMA A156.18 finishes: US26D Satin Chrome, US32D Satin Stainless, US10B Oil Rubbed Bronze, US3 Bright Brass, US26 Bright Chrome, and US4 Satin Brass. Interchangeable core options are available for facilities running SFIC master key systems with BEST, Falcon, or Arrow cores, or LFIC systems with Schlage, Corbin/Russwin, Sargent, or Yale cores. The NM8440 is the keyless privacy function, sonIC preps apply to the emergency access trim only, not to a primary cylinder on the lock body.
