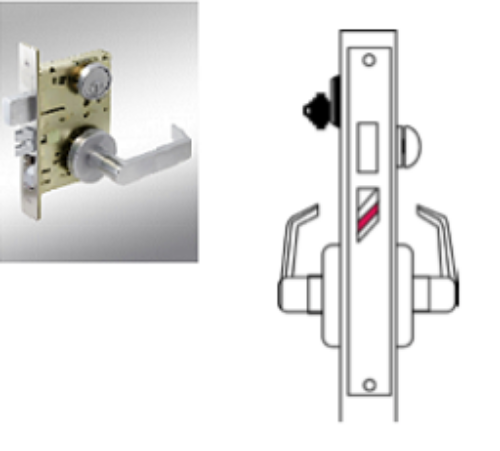

Cal Royal NM8473 Heavy Duty Grade 1, Dormitory / Bedroom Mortise Lockset

Cal Royal NM8473
Cal Royal NM8473
naxt
prev

Product Details

Cal Royal NM8473*Heavy Duty Grade 1, Dormitory / Bedroom Mortise Lockset*

For Trims Styles Click here

Function: F21Latch bolt retracted by knob or lever from either side. Deadbolt extended or retracted by key outside or thumb turn inside. Latch bolt and deadbolt are independent of each other.

Handing:Handed. Easily field-reversible For Doors 1 3/4" Backset: 2 3/4"

Cylinder:6-pin solid brass "C" keyway standard Lockcase: Heavy gauge zinc chromate steel

Front:Heavy gauge steel 8" x 1-1/4" x 3/32". Accommodates flat doors & doors beveled 1/8" in 2"

Armored Front:Wrought brass attached by machine screws to lockcase front

Deadbolt:1" throw, brass, chrome plated with hardened steel rollers

Latchbolt:Brass, chrome plated with heavy-duty deadbolt

Guardbolt:Extruded brass, chrome plated

Stopworks:Rocker type, brass, chrome plated

Strike:Brass, non-handed curved strike 4-7/8" x 1 1/4". Curved-up strike available upon request

UL Listing:UL Listed "A" Label (3 hours), for use on fire doors, single or pair of doors. "F" mark stamped on strike ANSI / BHMA:  Meets ANSI / BHMA A156.13, Series 1000, Operational & Security Grade 1 Standards. Lock body conforms to Federal Specification Type 86; and all dimensional and operational performances, Exceeds 1,000,000 cycles

Warranty:Lifetime warranty

Model:Cal Royal NM8473 Heavy Duty Grade 1 Mortise Lockset NM8473, SS, GS, JS, KS, TS, SE, KE, TE, JE, GE, US26D, NM8473SS, NM8473SSUS26D, NM8473GS, NM8473GSUS26D, NM8473JS, NM8473JSUS26D, NM8473KS, NM8473TS, NM8473SE, NM8473KE, NM8473TE,  NM8473JE, NM8473GE, NM8473KSUS26D, NM8473TSUS26D, NM8473SEUS26D, NM8473KEUS26D,

Cal Royal NM8473 Heavy Duty Grade 1, Dormitory / Bedroom Mortise Lockset

SKU: NM8473

In Stock
icon Chat
Picture for manufacturer Cal-Royal

Trim *

SS
SS

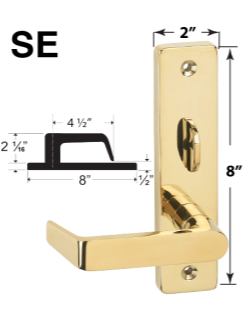

SE [+$15.64]
SE [+$15.64]

Finish *

US26D - Satin Chrome
US26D - Satin Chrome

Cylinder *

Conventional Mortise Cylinder (Standard)
Conventional Mortise Cylinder (Standard)
IC - Mortise housing - For SFIC (Best) [+$25.56]
IC - Mortise housing - For SFIC (Best) [+$25.56]
ICSC - Mortise housing - For LFIC Schlage [+$25.49]
ICSC - Mortise housing - For LFIC Schlage [+$25.49]
ICCR - Mortise housing - For LFIC Corbin / Russwin [+$25.51]
ICCR - Mortise housing - For LFIC Corbin / Russwin [+$25.51]
ICSA - Mortise housing - For LFIC Sargent [+$25.51]
ICSA - Mortise housing - For LFIC Sargent [+$25.51]
ICYA - Mortise housing - For LFIC Yale [+$25.51]
ICYA - Mortise housing - For LFIC Yale [+$25.51]

$229.45

$305.93

You saved $76.48

About this item



Resources

Cal Royal NM8473*Heavy Duty Grade 1, Dormitory / Bedroom Mortise Lockset*

For Trims Styles Click here

Function: F21Latch bolt retracted by knob or lever from either side. Deadbolt extended or retracted by key outside or thumb turn inside. Latch bolt and deadbolt are independent of each other.

Handing:Handed. Easily field-reversible For Doors 1 3/4" Backset: 2 3/4"

Cylinder:6-pin solid brass "C" keyway standard Lockcase: Heavy gauge zinc chromate steel

Front:Heavy gauge steel 8" x 1-1/4" x 3/32". Accommodates flat doors & doors beveled 1/8" in 2"

Armored Front:Wrought brass attached by machine screws to lockcase front

Deadbolt:1" throw, brass, chrome plated with hardened steel rollers

Latchbolt:Brass, chrome plated with heavy-duty deadbolt

Guardbolt:Extruded brass, chrome plated

Stopworks:Rocker type, brass, chrome plated

Strike:Brass, non-handed curved strike 4-7/8" x 1 1/4". Curved-up strike available upon request

UL Listing:UL Listed "A" Label (3 hours), for use on fire doors, single or pair of doors. "F" mark stamped on strike ANSI / BHMA:  Meets ANSI / BHMA A156.13, Series 1000, Operational & Security Grade 1 Standards. Lock body conforms to Federal Specification Type 86; and all dimensional and operational performances, Exceeds 1,000,000 cycles

Warranty:Lifetime warranty

Model:Cal Royal NM8473 Heavy Duty Grade 1 Mortise Lockset NM8473, SS, GS, JS, KS, TS, SE, KE, TE, JE, GE, US26D, NM8473SS, NM8473SSUS26D, NM8473GS, NM8473GSUS26D, NM8473JS, NM8473JSUS26D, NM8473KS, NM8473TS, NM8473SE, NM8473KE, NM8473TE,  NM8473JE, NM8473GE, NM8473KSUS26D, NM8473TSUS26D, NM8473SEUS26D, NM8473KEUS26D,

Cal Royal NM8473
Cal Royal NM8473 Heavy Duty Grade 1, Dormitory / Bedroom Mortise Lockset

Product code: NM8473

In Stock

$305.93

$229.45

BHMA Certified Lifetime Warranty, GRADE 1

Conforms to federal specification type 86; and to all dimensional and operational

performances of ANSI A156.13-1 80, Series 1000, Extra Heavy Duty

UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997

Optional Interchangeable Core

Rust-proof heavy duty 2 3/4" backset lock case

Individual spring to prevent lever sag, easily reversible

Forged brass lever handles exceed requirements of ADA (American Disability Act)

Auxiliary latch bolt

Armored front plate conceals lock mounting screws

1" throw heavy duty deadbolt with anti-saw hardened pins

Heavy duty 3/4" latch bolt with anti-friction latch, easily reversible

Optional Electrified Locks available

Conforms & Meets ADA Regulations
