Cal Royal SC8070LG US32D Heavy Duty Grade 1, Lockable Patient Room (Classroom Lock) Ligature Resistant Mortise Lockset - Stainless steel

Cal Royal SC8070LG US32D Grade 1 Ligature Resistant Mortise Lockset Lockable Patient Room Classroom Function Stainless Steel

The Cal Royal SC8070LG US32D is a heavy duty Grade 1 ligature resistant mortise lockset made for patient room and classroom style needs. It uses the ANSI F04 Lockable Patient Room (Classroom Lock) function, where the outside key locks or unlocks the outside lever, while the inside lever stays free for immediate exit. It also has an auxiliary latch that deadlocks the latchbolt when the door is closed.

This model is part of Cal Royal’s SC Series mortise locks and is listed as ANSI/BHMA A156.13 Grade 1. The LG ligature-resistant trim is designed to reduce points that could be used for hanging and includes a positive-stop feature to help prevent overextension and minimize the presence of a horizontal surface.

About this item

The Cal Royal SC8070LG US32D is a Grade 1 ligature resistant mortise lockset with ANSI F04 patient room function, where the outside key controls the outside lever and the inside lever is always free for exit.

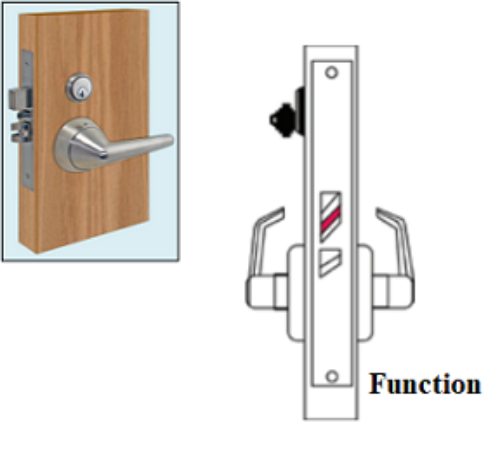

Function

ANSI F04 - It locks or unlocks the outside lever by key while keeping the inside lever free, and the auxiliary latch deadlocks the latchbolt when the door is closed.

Applications

Use it on patient rooms, behavioral health areas, and other controlled openings that need a ligature resistant trim style with classroom type key control from the corridor side.

Best for:

• Patient room doors that need key control at the outside lever

• Behavioral health and similar areas needing ligature resistant trim

• Commercial openings that call for ANSI/BHMA Grade 1 mortise hardware

• Projects that want interchangeable core housing options (SFIC and LFIC choices)

It helps by:

• Allowing staff to lock or unlock the outside lever with a key

• Keeping the inside lever always free for immediate exit

• Deadlocking the latchbolt with an auxiliary latch when the door is closed

• Using ligature resistant trim design elements like a positive stop to reduce horizontal surface presentation

Key highlights

• Grade 1 mortise lockset platform

• ANSI F04 patient room / classroom style key control

• Ligature resistant trim features such as positive stop design

• Multiple trim and cylinder housing choices available

What’s included

• SC8070LG mortise lockset (lock body and selected trim style)

• Selected cylinder or IC mortise housing option (based on the option chosen)

Key features

• Outside key locks and unlocks the outside lever

• Inside lever always allows exit

• Auxiliary latch deadlocks the latchbolt when the door is closed

• Ligature resistant trim design with positive stop feature

Keying options

• Conventional mortise cylinder (standard)

• IC mortise housing for SFIC (Best)

• ICSC mortise housing for LFIC Schlage

• ICCR mortise housing for LFIC Corbin / Russwin

• ICSA mortise housing for LFIC Sargent

• ICYA mortise housing for LFIC Yale

Warranty

• Merchandise warranty: goods are warranted against defects in manufacture for one year (per Cal Royal warranty document).

Specifications

• Model: SC8070LG

• Finish: US32D (stainless steel finish as listed on the page)

• Grade: ANSI/BHMA A156.13 Grade 1 (listed on the page)

• Function: ANSI F04 Lockable Patient Room (Classroom Lock)

• Trim options shown: LGK, LGS, LGX, LGE

• Cylinder type options shown: Conventional mortise cylinder (standard) or IC mortise housing options

• IC platform support (keyed functions available with Best, Falcon and Arrow, Schlage, Corbin / Russwin, Sargent, Yale LFIC options)
