Cal Royal SC8071LG US32D Heavy Duty Grade 1, Lockable Patient Room (Classroom Security Intruder Latchbolt) Ligature Resistant Mortise Lockset - Stainless steel

SC8060LG
SC8060LG
naxt
prev

Product Details

Cal Royal SC8071LG*US32DHeavy Duty Grade 1,Lockable Patient Room (Classroom Security Intruder Latchbolt)*Ligature Resistant Mortise Lockset - Stainless steel

For Trims Styles Click here

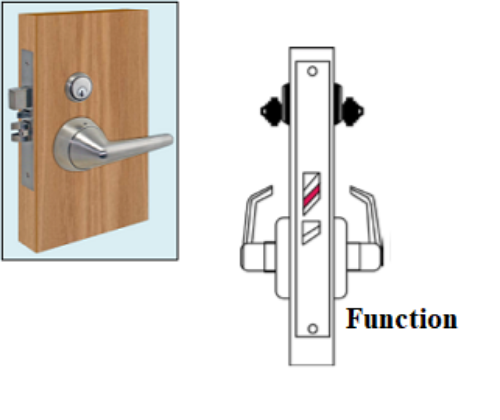

Function:*ANSI  F32 - Lockable Patient Room (Classroom Security Intruder Latchbolt)- *Latch bolt retracted by knob / lever from either side unless outside is locked by key from either side. When outside lever is locked, latch bolt is retracted by key outside or lever inside. Turning key from either side locks and unlocks outside lever. Auxiliary latch deadlocks latch bolt when door is locked. Inside knob / lever is always free for immediate egress.

FEATURESANSI A156.13-2017 Grade 1 Mortise locks

Outside lever clutch free-wheeling design.

The lever rotates when the lever is locked preventing excessive force from being applied to the horizontal lever. This design decreases the chance of the lever being broken or damaged

Ligature Resistant lever design helps to prevent intentional or accidental hanging

Anti-vandal cylinder guard is standard, deters forcible removal of cylinder with any type of wrench or hammer

Tamper resistant concealed mounting set screws

Non-handed, fully field reversible

Heavy duty escutcheon and sectional trim available

No exposed mounting screws

Can retrofit Schlage L9000 Series mortise lock bodies

CERTIFICATIONS

Meets ANSI / BHMA A156.13 Series 1000 Grade 1 Requirements

UL and cUL listed to Canadian safety standard for A label (3-hour fire door); stamped letter "F" and UL symbol on armor faceplate

Meets positive pressure requirements UL 10C and UBC 7-2 (1997)

Warranty:Lifetime warranty

Model:Cal Royal SC8071LG, SC8071LG US32D Heavy Duty Grade 1, Lockable Patient Room (Classroom Security Intruder Latchbolt)Ligature Resistant Mortise Lockset -Stainless steel, SC8071LG, SC8071LGLGK, SC8071LGLGX, SC8071LGLGS, SC8071LGLGE, SC8071LG US32D, SC8071LGUS32D, SC8071LGLGKUS32D, SC8071LGLGXUS32D, SC8071LGLGSUS32D, SC8071LGLGEUS32D,

Cal Royal SC8071LG US32D Heavy Duty Grade 1, Lockable Patient Room (Classroom Security Intruder Latchbolt) Ligature Resistant Mortise Lockset - Stainless steel

SKU: SC8071LG

In Stock
icon Chat
Picture for manufacturer Cal-Royal

Trim *

LGK
LGK
LGS [+$44.40]
LGS [+$44.40]
LGX [+$161.04]
LGX [+$161.04]
LGE [+$197.18]
LGE [+$197.18]

Cylinder *

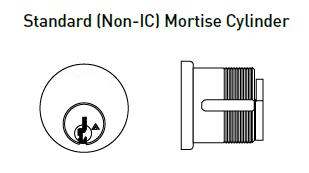

Conventional Mortise Cylinder (Standard)
Conventional Mortise Cylinder (Standard)

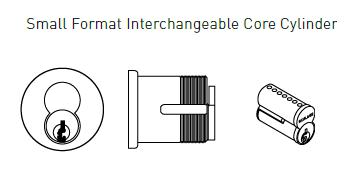

IC - Mortise housing - For SFIC (Best) [+$25.56]
IC - Mortise housing - For SFIC (Best) [+$25.56]

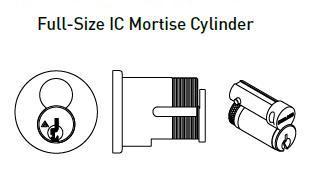

ICSC - Mortise housing - For LFIC Schlage [+$26.15]
ICSC - Mortise housing - For LFIC Schlage [+$26.15]
ICCR - Mortise housing - For LFIC Corbin / Russwin [+$26.15]
ICCR - Mortise housing - For LFIC Corbin / Russwin [+$26.15]
ICSA - Mortise housing - For LFIC Sargent [+$26.15]
ICSA - Mortise housing - For LFIC Sargent [+$26.15]
ICYA - Mortise housing - For LFIC Yale [+$26.15]
ICYA - Mortise housing - For LFIC Yale [+$26.15]

$807.12

$956.59

You saved $149.47

About this item



Resources

Cal Royal SC8071LG*US32DHeavy Duty Grade 1,Lockable Patient Room (Classroom Security Intruder Latchbolt)*Ligature Resistant Mortise Lockset - Stainless steel

For Trims Styles Click here

Function:*ANSI  F32 - Lockable Patient Room (Classroom Security Intruder Latchbolt)- *Latch bolt retracted by knob / lever from either side unless outside is locked by key from either side. When outside lever is locked, latch bolt is retracted by key outside or lever inside. Turning key from either side locks and unlocks outside lever. Auxiliary latch deadlocks latch bolt when door is locked. Inside knob / lever is always free for immediate egress.

FEATURESANSI A156.13-2017 Grade 1 Mortise locks

Outside lever clutch free-wheeling design.

The lever rotates when the lever is locked preventing excessive force from being applied to the horizontal lever. This design decreases the chance of the lever being broken or damaged

Ligature Resistant lever design helps to prevent intentional or accidental hanging

Anti-vandal cylinder guard is standard, deters forcible removal of cylinder with any type of wrench or hammer

Tamper resistant concealed mounting set screws

Non-handed, fully field reversible

Heavy duty escutcheon and sectional trim available

No exposed mounting screws

Can retrofit Schlage L9000 Series mortise lock bodies

CERTIFICATIONS

Meets ANSI / BHMA A156.13 Series 1000 Grade 1 Requirements

UL and cUL listed to Canadian safety standard for A label (3-hour fire door); stamped letter "F" and UL symbol on armor faceplate

Meets positive pressure requirements UL 10C and UBC 7-2 (1997)

Warranty:Lifetime warranty

Model:Cal Royal SC8071LG, SC8071LG US32D Heavy Duty Grade 1, Lockable Patient Room (Classroom Security Intruder Latchbolt)Ligature Resistant Mortise Lockset -Stainless steel, SC8071LG, SC8071LGLGK, SC8071LGLGX, SC8071LGLGS, SC8071LGLGE, SC8071LG US32D, SC8071LGUS32D, SC8071LGLGKUS32D, SC8071LGLGXUS32D, SC8071LGLGSUS32D, SC8071LGLGEUS32D,

SC8060LG
Cal Royal SC8071LG US32D Heavy Duty Grade 1, Lockable Patient Room (Classroom Security Intruder Latchbolt) Ligature Resistant Mortise Lockset - Stainless steel

Product code: SC8071LG

In Stock

$956.59

$807.12



SC8060LG
Cal Royal SC8071LG US32D Heavy Duty Grade 1, Lockable Patient Room (Classroom Security Intruder Latchbolt) Ligature Resistant Mortise Lockset - Stainless steel

Product code: SC8071LG

In Stock

$956.59

$807.12
