Cal Royal SC8080LG US32D Heavy Duty Grade 1, Medicine Storeroom (Storeroom Lock) Ligature Resistant Mortise Lockset - Stainless steel

Cal Royal SC8080LG*US32DHeavy Duty Grade 1, Medicine Storeroom (Storeroom Lock)Ligature Resistant Mortise Lockset - Stainless steel*

For Trims Styles Click here

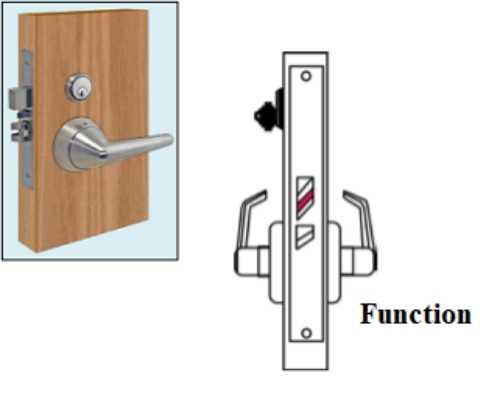

Function: ANSI F04-Medicine Storeroom (Storeroom Lock) -Latch bolt operated by key from outside or rotating inside lever, outside lever is always inoperative. Auxiliary latch deadlocks latch bolt when door is closed. Inside lever is always free for immediate egress.

FEATURESANSI A156.13-2017 Grade 1 Mortise locks

Outside lever clutch free-wheeling design.

The lever rotates when the lever is locked preventing excessive force from being applied to the horizontal lever. This design decreases the chance of the lever being broken or damaged

Ligature Resistant lever design helps to prevent intentional or accidental hanging

Anti-vandal cylinder guard is standard, deters forcible removal of cylinder with any type of wrench or hammer

Tamper resistant concealed mounting set screws

Non-handed, fully field reversible

Heavy duty escutcheon and sectional trim available

No exposed mounting screws

Can retrofit Schlage L9000 Series mortise lock bodies

CERTIFICATIONS

Meets ANSI / BHMA A156.13 Series 1000 Grade 1 Requirements

UL and cUL listed to Canadian safety standard for A label (3-hour fire door); stamped letter "F" and UL symbol on armor faceplate

Meets positive pressure requirements UL 10C and UBC 7-2 (1997)

Warranty:Lifetime warranty

Model:Cal Royal SC8070LG, SC8080LG US32D Heavy Duty Grade 1, Office / Entrance Ligature Resistant Mortise Lockset -Stainless steel, SC8080LG, SC8080LGLGK, SC8080LGLGX, SC8080LGLGS, SC8080LGLGE, SC8080LG US32D, SC8080LGUS32D, SC8080LGLGKUS32D, SC8080LGLGXUS32D, SC8080LGLGSUS32D, SC8080LGLGEUS32D,
