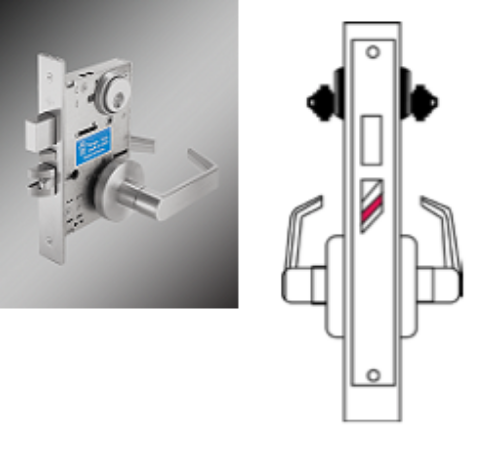

Cal Royal SC8466 US26D Extra H.D. Grade 1, Store Door Mortise Lockset - Satin Chrome

Cal Royal SC8466 US26D*Extra Heavy Duty Grade 1, Store DoorMortise Lockset - With Clutch Free-Wheeling - Satin Chrome*

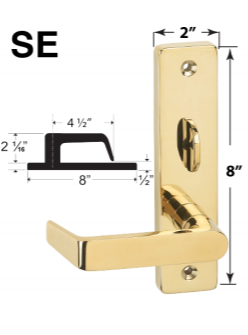

For Trims Styles Click here

Function:* *ANSI F14-S tore Door Lock- Latch bolt operated by lever from either side. Deadbolt projected or retracted by key on either side. Latch bolt and deadbolt are independent of each other.

For Doors: 1 3/4" (44.5mm) thick standard.Lock Hand:Lock bodies are easily field reversible, no need to specify hand when ordering

Backset & Strike:2 3/4" (70mm) only backset. Brass or stainless steel strike; ANSI Standard A115.1; curve lip with dust box

Lock Case:Heavy Duty wrought steel, zinc dichromate plated

Center To Center:Center of lever to center of cylinder is 3 7 /8" (98mm)

Armor Faceplate:Brass or stainless steel; 8" x 1 7 /32" (203mm x 31.3mm); ANSI Standard A115.1

Deadbolt:1" (25.4mm) throw; hardened stainless steel

Latch Bolt:3/4" (19mm) throw; one-piece stainless steel with anti-friction reversible tongue

Cylinder & Keyways:6-pin solid brass "C" keyway standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59 / 60, Corbin-Russwin L4, Sargent LA-LB-LC, Falcon / Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, Kaba and Cal-Royal HSK High Security Cylinders.

Interchangeable core (IC):Interchangeable Core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW (SFIC). Also available with SCHLAGE,CORBIN / RUSSWIN D-1 thru 4, SARGENT LA , and YALE GA Large Format Cylinders.

Toggle Button:High rust-resistant chrome plated zinc alloy Warranty: Lifetime warranty

Model:Cal Royal SC8466 Extra Heavy Duty Grade 1, Store Door Mortise Lockset - With Clutch Free-Wheeling - Satin Chrome, SC8466SS, SC8466SE, SC8466 SS,  SC8466SE,

ANSI / BHMA -  Meets ANSI / BHMA A156.13, Series 1000, Operational & Security Grade 1 Standards

UL / cUL  - UL and UL Listed to Canadian safety standard for A label (3-hour fire door); stamped letter F and UL symbol on armor faceplate

POSITIVE PRESSURE - Meets positive pressure requirements UL 10C and UBC 7-2 (1997)

ADA - Meets ADA requirements, specifically designed for Barrier Free Application
