Cal Royal SC8466LG US32D Heavy Duty Grade 1, Store Door Ligature Resistant Mortise Lockset - Stainless steel

Cal Royal SC8466LG*US32DHeavy Duty Grade 1,Asylum*Store Door  Ligature Resistant Mortise Lockset - Stainless steel

For Trims Styles Click here

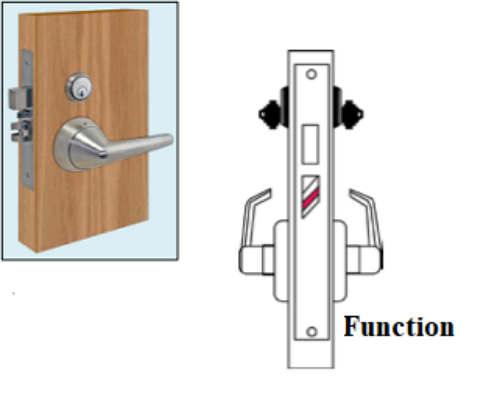

Function:*ANSI (F14) -Asylum*Store Door- Latch bolt operated by lever from either side. Deadbolt projected or retracted by key on either side. Latch bolt and deadbolt are independent of each other.

FEATURESANSI A156.13-2017 Grade 1 Mortise locks

Outside lever clutch free-wheeling design.

The lever rotates when the lever is locked preventing excessive force from being applied to the horizontal lever. This design decreases the chance of the lever being broken or damaged

Ligature Resistant lever design helps to prevent intentional or accidental hanging

Anti-vandal cylinder guard is standard, deters forcible removal of cylinder with any type of wrench or hammer

Tamper resistant concealed mounting set screws

Non-handed, fully field reversible

Heavy duty escutcheon and sectional trim available

No exposed mounting screws

Can retrofit Schlage L9000 Series mortise lock bodies

CERTIFICATIONS

Meets ANSI / BHMA A156.13 Series 1000 Grade 1 Requirements

UL and cUL listed to Canadian safety standard for A label (3-hour fire door); stamped letter "F" and UL symbol on armor faceplate

Meets positive pressure requirements UL 10C and UBC 7-2 (1997)

Warranty:Lifetime warranty

Model:Cal Royal SC8466LG, SC8466LG US32D Heavy Duty Grade 1, PassageLigature Resistant Mortise Lockset -Stainless steel, SC8466LG, SC8466LGLGK, SC8466LGLGX, SC8466LGLGS, SC8466LGLGE, SC8466LG US32D, SC8466LGUS32D, SC8466LGLGKUS32D, SC8066LGLGXUS32D, SC8466LGLGSUS32D, SC8466LGLGEUS32D,
