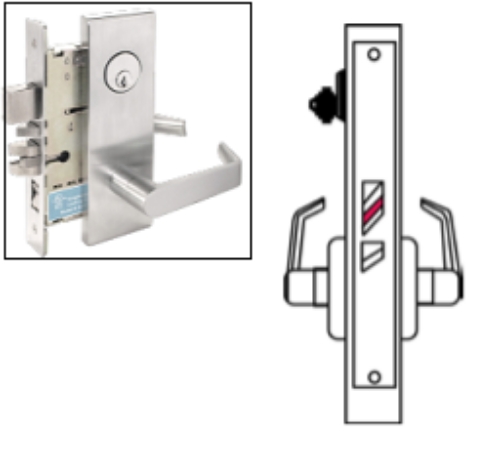

Cal Royal WI8080 SE US26D Heavy Duty Grade 1, Wide Escutcheon Storeroom Mortise Lockset - Satin Chrome

Cal Royal WI8080 SE US26D Heavy Duty Grade 1,*Wide Escutcheon*Storeroom Mortise Lockset - Satin Chrome

Function: ANSI  F07  -Latch bolt operated by key from outside or rotating inside lever, outside lever is always inoperative. Auxiliary latch deadlocks latch bolt when door is closed. Inside lever is always free for immediate egress.

Handing:Handed. Easily field-reversible For Doors 1 3/4" Backset: 2 3/4"

Cylinder:6-pin solid brass "C" keyway standard Lockcase: Heavy gauge zinc chromate steel

Front:Heavy gauge steel 8" x 1-1/4" x 3/32". Accommodates flat doors & doors beveled 1/8" in 2"

Armored Front:Wrought brass attached by machine screws to lockcase front

Deadbolt:1" throw, brass, chrome plated with hardened steel rollers

Latchbolt:Brass, chrome plated with heavy-duty deadbolt

Guardbolt:Extruded brass, chrome plated

Stopworks:Rocker type, brass, chrome plated

Strike:Brass, non-handed curved strike 4-7/8" x 1 1/4". Curved-up strike available upon request

UL Listing:UL Listed "A" Label (3 hours), for use on fire doors, single or pair of doors. "F" mark stamped on strike ANSI / BHMA:  Meets ANSI / BHMA A156.13, Series 1000, Operational & Security Grade 1 Standards. Lock body conforms to Federal Specification Type 86; and all dimensional and operational performances, Exceeds 1,000,000 cycles

Warranty:Lifetime warranty

Model:Cal Royal WI8050 Heavy Duty Grade 1 Mortise Lockset WI8050, SS, GS, JS, KS, TS, SE, KE, TE, JE, GE, US26D, US32D, US10B, WI8050SS, WI8050SSUS26D, WI8050GS, WI8050GSUS26D, WI8050JS, WI8050JSUS26D, WI8050KS, WI8050TS, WI8050SE, WI8050KE, WI8050TE,  WI8050JE, WI8050GE, WI8050KSUS26D, WI8050TSUS26D, WI8050SEUS26D, WI8050KEUS26D,

BHMA Certified Lifetime Warranty, GRADE 1

Conforms to federal specification type 86; and to all dimensional and operational

performances of ANSI A156.13-1 80, Series 1000, Extra Heavy Duty

UL listed 3-hour rating, conforms to standards UL10C and UBC 7-2-1997

Optional Interchangeable Core

Rust-proof heavy duty 2 3/4" backset lock case

Individual spring to prevent lever sag, easily reversible

Forged brass lever handles exceed requirements of ADA (American Disability Act)

Auxiliary latch bolt

Armored front plate conceals lock mounting screws

1" throw heavy duty deadbolt with anti-saw hardened pins

Heavy duty 3/4" latch bolt with anti-friction latch, easily reversible

Optional Electrified Locks available

Conforms & Meets ADA Regulations
