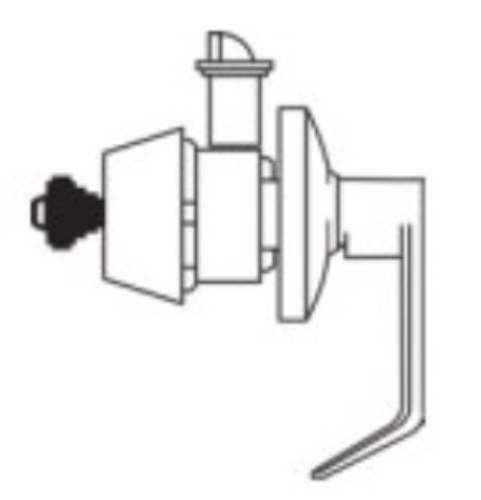

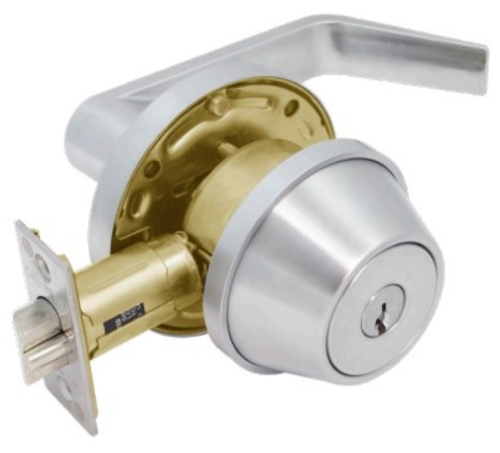

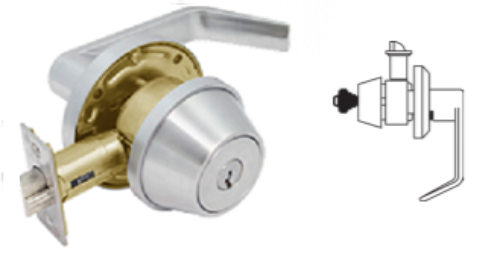

Cal-Royal XP-T360-05 Grade 2, Storeroom Lock

Cal-Royal XP-T360-05 Grade 2, Storeroom Lock And Single Cylinder Deadbolt Combination - ANSI: F86

Dead locking latch bolt operated by key in outside deadbolt or by rotating inside lever. Outside deadbolt is always fixed.

Fits all Major Manufacturers Thru Bolt Locations.

Door Range- 1-3/8" to 2" thickness doors.

Backset- 2-3/8"

Front- 2-1/4" x 1 1/8", adjustable for flat or beveled doors 1/8" in 2".

Strike- ASA strike standard, "T" and full lip strike available.

Latchbolt- 1/2" Throw solid brass, reversible for RH or LH applications. UL listed.

Latch and Stick Screws - 8-32 X 1" FPH dual purpose.

Keying - 6-pin "C" keyway cylinder, 2 keys per lock.

Keys:2 keys per lock.

model:Cal-Royal XP-T360-05,Cal-Royal XP-T360-05US26D,Cal-Royal XP-T360-05US10B,Cal-Royal XP-T360-05US26,Cal-Royal XP-T360-05US4,Cal-Royal XP-T360-05US3,

ANSIStandards - Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000, grade 2(FF-H 106C), 400,000 cycles.

Exposed Trim- Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish.
