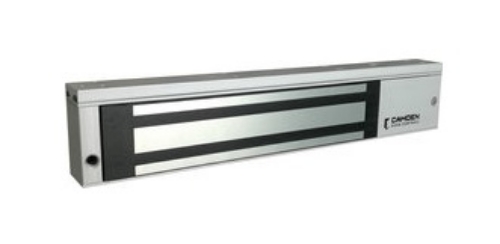

Camden CX-91S-12 Series Surface Mount Single Door Magnetic Lock - 1200 lbs

Camden CX-91S-12 Single Door Magnetic Lock, 12/24 VDC, 1200lb Holding Force, Surface Mount, Satin Aluminum Clear Anodized FinishTDS Option -

With adjustable timer, door status switch, lock sensor/relay & LED.

FEATURES

• Weather and vandal resistant construction proven over thousands of installations.

• Surface and mortise mount models.

• Compatible with all access/egress systems.

• Field selectable 12/24 VDC operation.

• On board MOV power surge protection prevents damage to the mag lock.

• A range of mounting brackets and spacers available.

• Lifetime warranty.

SPECIFICATIONS

Voltage: 12/24 VDC.

Current Draw:   CX-91S-06: 480 mA @ 12 VDC. 240 mA @ 24 VDC.

Temp Range: CX-90 & 91 Series: 32 Degree F to 131 Degree F (0 Degree C to 55 Degree C).

Contact Rating: CX-91 Series TDS/TLS: Bond Sensor: 2A @ 24 VDC. Door Status Switch: 0.5A @ 28V AC/DC.

Time Delay: CX-91 Series TDS/TLS: 5 to 25 seconds.

Holding Force:  1,200 lbs. (544 kg.)

Dimensions:  CX-91S-12: 10-1/2" x 2-5/8" x 1-9/16" (266mm x 67mm x 40mm).

Armature Plate:600 Lbs.: 7-1/4" x 1-1/2" x 15/32" (185mm x 38mm x 12mm).
