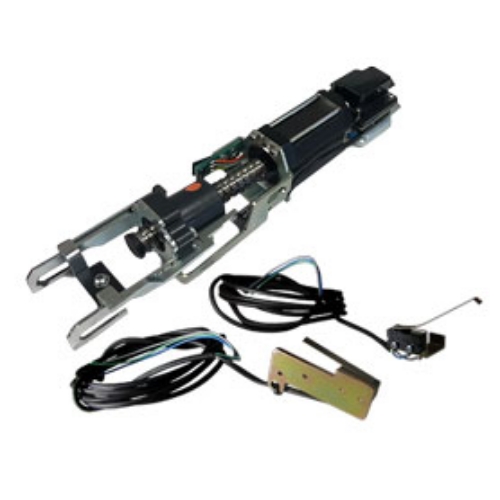

Command Access MLRK1-AR REX Motorized Latch Retraction Kit, for Adams Rite 8000 Series - Request to Exit

Command Access MLRK1-AR REX Motorized Latch Retraction Kit, for Adams Rite 8000 Series - * Request to Exit* *MLRK1-AR-REX Kit for Adams Rite P88/88/86/84/82 Series. EU V - Request to Exit The MLRK1-AR is a robust, straightforward field-installable motorized latch retraction kit for Adams Rite P88/88/86/84/82 series exit devices. It utilizes a CAT-designed custom assembly to maximize the pulling force. The only hole you'll need to drill is the raceway! It uses our new 1-touch PTS "Push to Set" technology, making post-installation adjustments a breeze. An optional built-in REX switch is available on all units! - Adams Rite P88/88/86/84/82 Series- 1 Touch 'PTS' Push to Set Technology- Easy Installation - Fast, Quiet, Smooth- True Electronic Dogging - Full Push Pad Retraction- 3 Year No Hassle Warranty + Add Locking Hardware PS to take both to 5 Years!- UL Listed *FEATURES:  Next Generation MM5 Smart Module: On board diagnostics with audible feedback for adjustment and power issues1 Touch 'PTS': Quick & easy post-installation adjustmentElectric dogging rated for continuous dutyAuto re-engage if push pad is pulled from dogged positionLow Torque Mode: Now capable of pulling all devices, even tall vertical rod doors!Up to 300' wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralizedlocation; i.e. the same closet as the access control panel8" cable with Robust Quick Molex Connect for MM5 module to connect to incoming power.3 Year 'No Hassle' Warranty

SPECIFICATIONS Voltage:- Voltage range - 24VDC +/- 10%- System protection - Unit shutdown when voltage exceeds 28VDC- Standard - Average Current Peak: 1.4A, Average Current Hold: 200mA- PTS Adjustment - approx. 1/4"Cutdown:- 36" - .75"- 42" - 6.75"- 48" - 5"Wire Run:- 300- with 18ga wire Product Details:- MLRK1 Box: 14.25" x 6": x 2.5"- Weight: 3 Lbs- Master Pack Qty: 6 ea. Accessories:- Request-to-Exit - Field Installable REX kit orbuilt-in to kit.
