Command Access MLRK1-COR Motor Latch Retract Kit, Corbin 4000/5000 Series

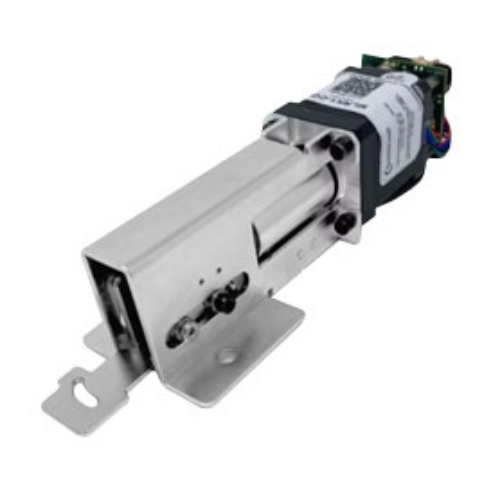

Command Access MLRK1-COR Motor Latch Retract Kit, Corbin 4000/5000 Series The MLRK1-COR is a high quality, cost-effective method of converting a Corbin Russwin 4/5000 & Yale 7000 series device to an electrified motor-driven latch retraction exit device. All our kits retract not just the latch/latches but the push pad too. Allowing electronically dogged devices to remain in a push/pull state for as long as it is desired. Patent Pending Push to Set (PTS) Technology allows for an easy post-installation adjustment of the latch/latches. Last but not least, it features our motor module with built-in audible diagnostics & equipped with 2 different torque settings from energy-conscious, to High Torque to get the tough jobs done!  "PTS" Push to set technologyPowerfully Built & Easy to Install!Fast, quiet, smoothTrue Electronic Dogging - Full push pad retractionUL ListedRetrofits Corbin Russwin 4/5000 & Yale 7000 series exit devicesFEATURES: MM4S Smart Module: On board diagnostics with audible feedback for adjustment and power issuesRemote MM4S module for easy accessibility y & servicing."PTS": 5 second electronic adjustment for easy post installation adjustmentElectric dogging rated for continuous duty - Auto re-engage if push pad is pulled from dogged positionLow Current Draw - Field switchable to "High Torque" modeUp to 300' wire run with 2-18ga wire - Long wire runs provides installer with convenience of placing the Command locking hardware power supply in a centralized location; i.e. the same closet as the access control panel8' cable with Quick Connect for MM4S module to easily connect to power supply leadRequest-to-exit kit available3-year "no hassle" warranty

SPECIFICATIONS Voltage:- Voltage range - 24 to 28 VDC- System protection - unit shutdown when voltage exceeds 28VDC- Standard - Average Current Peak: 900A, Average Current Hold: 215mA- High Torque - Average Current Peak: 2A, Average Current Hold: 250mA- PTS adjustment - approx. 1/4"Wire Run:- 300- with 18ga wire Product Details:- Weight: 2 LbsAccessories:- Request-to-Exit - Field Installable REX kit or built-in to kit.Device Cutdown Details: 36" - 4? from end cap 48" - 10? from end capAccessories:Request-to-Exit - Field Installable REX kit
