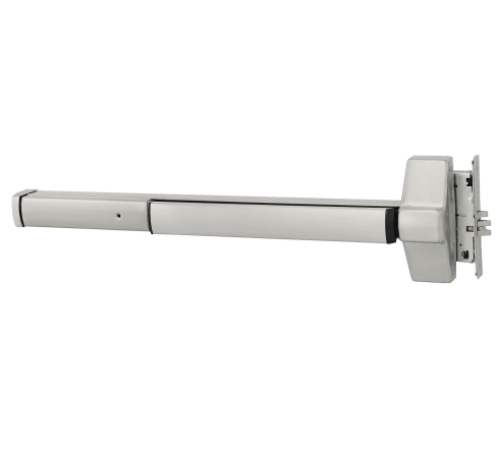

Corbin Russwin ED5600/5600A Mortise Exit Device

The mortise exit device is the highest-security configuration in the standard exit device lineup. Where a rim device uses a surface-mounted rim latch and a vertical rod device uses top-and-bottom rods, a mortise exit device uses a mortise lock body fitted into the door itself, with the same lock case construction used in high-security commercial mortise locks. The Corbin Russwin ED5600 combines that mortise security with the panic egress performance of the full ED5000 Series. It's Grade 1, UL 305 listed for panic hardware, certified to ANSI A156.3, and backed by a 5-year warranty. The ED5600 is for standard width stile applications on wood and metal doors. The ED5600A carries the fire-rated "A" label for fire door applications.

For the complete Corbin Russwin ED5000 Series including rim, surface vertical rod, concealed vertical rod, and mortise configurations, browse Corbin Russwin ED5000 exit devices. For all commercial panic hardware, view our full exit hardware catalog.

Why Specify a Mortise Exit Device Over a Rim Device

A rim device mounts on the door face and latches using a surface rim strike. The latch point is entirely external. A mortise exit device fits into the door prep the same way a standard mortise lock does, with the lock case inside the door thickness and the latch projecting into a mortise strike in the frame. The mortise configuration provides greater resistance to forced entry because the lock case is embedded in the door, not surface-mounted, and the 2-piece mechanical latch with auxiliary deadlocking provides positive latching that resists shim and loid attacks that can compromise surface rim latches.

For high-security school entrances, government building egress doors, and institutional facilities where the door specification already calls for a mortise prep, the ED5600 is the natural fit. It also provides a more finished appearance on the door face, with no surface-mounted rim case or vertical rods visible from inside the corridor.

Corbin Russwin ED5600 Technical Specifications

Series: ED5000. Device type: mortise exit device. Includes: mortise lock body and ANSI curved lip strike. ANSI standard: A156.3, Type 1, Grade 1. Exceeds ANSI/BHMA Grade 1 requirements for cycle and strength. ADA: meets ANSI A117.1 Accessibility Code. UL/cUL Listed: yes, panic hardware per UL 305. Fire rating: ED5600A carries 3-hour A label for single doors 4' x 8' and double doors 8' x 8'. NFPA: complies with NFPA 101 Life Safety Code; fire-rated version complies with NFPA 80. California State Fire Marshal: approved per section 13144.1 California Health and Safety Code. Handing: device is non-handed; mortise lock body is handed but field reversible; lever trim may be handed. Minimum stile width: 4-1/2" (114mm). Bar length: standard 36" bar fits 30" to 36" doors; optional 48" bar fits 36" to 48" doors, specify W048. Door thickness: standard 1-3/4" (44mm). Door type: wood and metal. Latchbolt: 2-piece mechanical, 3/4" (19mm) throw, stainless steel with auxiliary deadlocking latch. Chassis: heavy-duty cold-forged steel. Mechanisms: heavy-gauge steel, electroplated for corrosion resistance. Springs: stainless steel. Bearings: nylon. Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged. Strike: non-handed, ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to center. Dogging: single-point 1/4 turn hex key, standard. Fasteners: machine screws and wood door fasteners (panic); sex nuts and bolts (fire-rated). Warranty: 5-year limited.

ED5600 vs. ED5600A: Fire Rating

The standard ED5600 is the non-fire-rated version for applications where the door is not fire-labeled. The ED5600A carries the UL A label three-hour fire rating for fire-rated door assemblies in single door openings up to 4' x 8' and double door openings up to 8' x 8'. If your opening is fire-rated, specify ED5600A. The "A" designation indicates the specific fire label class and must match your door label. Always confirm fire door label requirements with your AHJ before specifying.

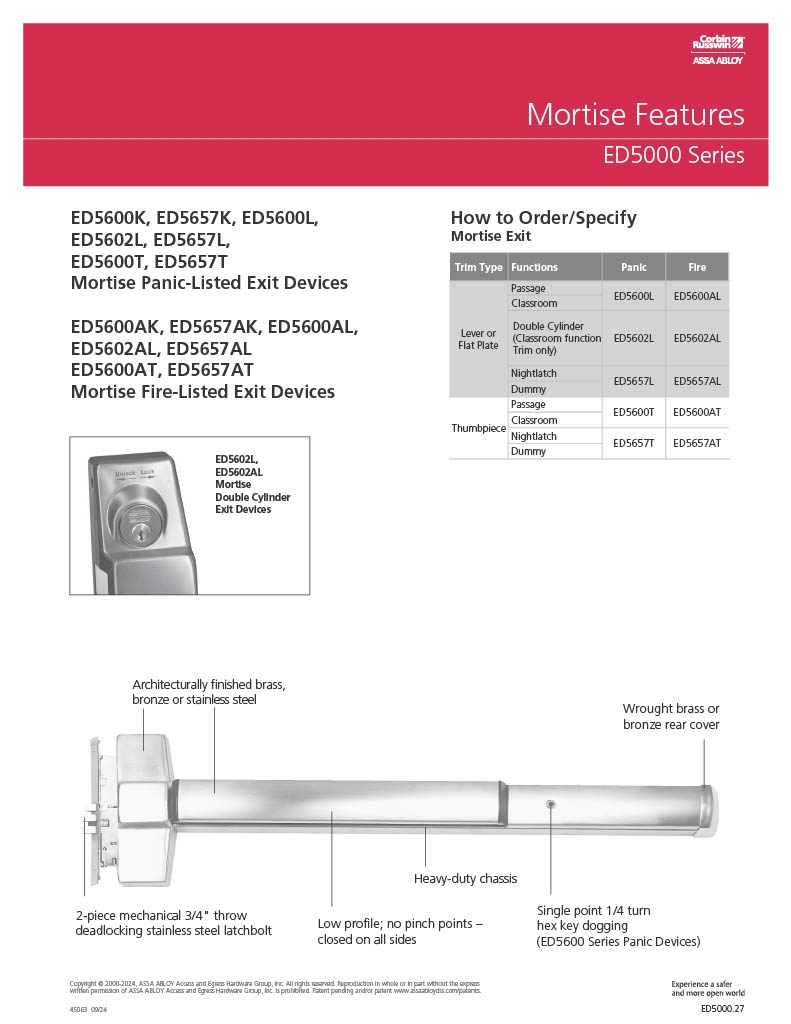

Available Trims and Function Options

The ED5600 ships exit-only and includes the mortise lock body. Outside trim is ordered separately. Compatible trims cover classroom (855ET), passage (810ET), and nightlatch escutcheon pull configurations. The ED5000 Series trim collection includes the Muséo and Vineyard Collections for projects where architectural aesthetics are part of the specification. Through-bolted trims provide additional strength and security. For all compatible outside trims, browse Corbin Russwin exit device trims.
