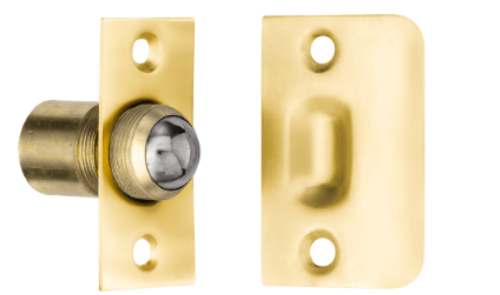

Ives 347 Dual Adjustable Ball Catch

The Ives 347 addresses both installation variables with dual adjustment: the threaded barrel compensates for different door clearances, and the spring tension is separately adjustable to match the closing feel the application requires.

Most ball catches adjust only one of these. The 347's dual adjustment handles both on the same unit, which makes it the correct specification when standard door clearance is inconsistent across a set of doors, when replacement is going into an existing bore that may be slightly off-center, or when the holding strength needs fine-tuning after installation without replacing the unit. Made from wrought brass throughout. Free-rolling ball for smooth quiet action. Lip strike designed for jamb mounting. ANSI/BHMA A156.9 B23013 certified. For all Ives builders hardware, browse our builders hardware catalog.

Dual Adjustment Explained

First adjustment is door clearance via the threaded barrel. The barrel that houses the ball threads in or out to move the ball forward or backward relative to the door face. When the door has more gap between the edge and the jamb face, the barrel threads out to position the ball further forward so it still reaches the strike depression. When the gap is tighter, the barrel threads in. This compensates for normal variation in door hanging without requiring shimming or custom strike placement.

Second adjustment is spring tension. A set screw or adjustment mechanism controls how tightly the spring holds the ball against the strike. Higher tension means the door holds more firmly and requires more pull to open. Lower tension means light pressure opens it. On interior residential doors, lighter tension is typical. On cabinet doors or doors that see drafts, higher tension prevents unwanted drift. Adjusting both independently after installation gets the catch exactly right for each opening.

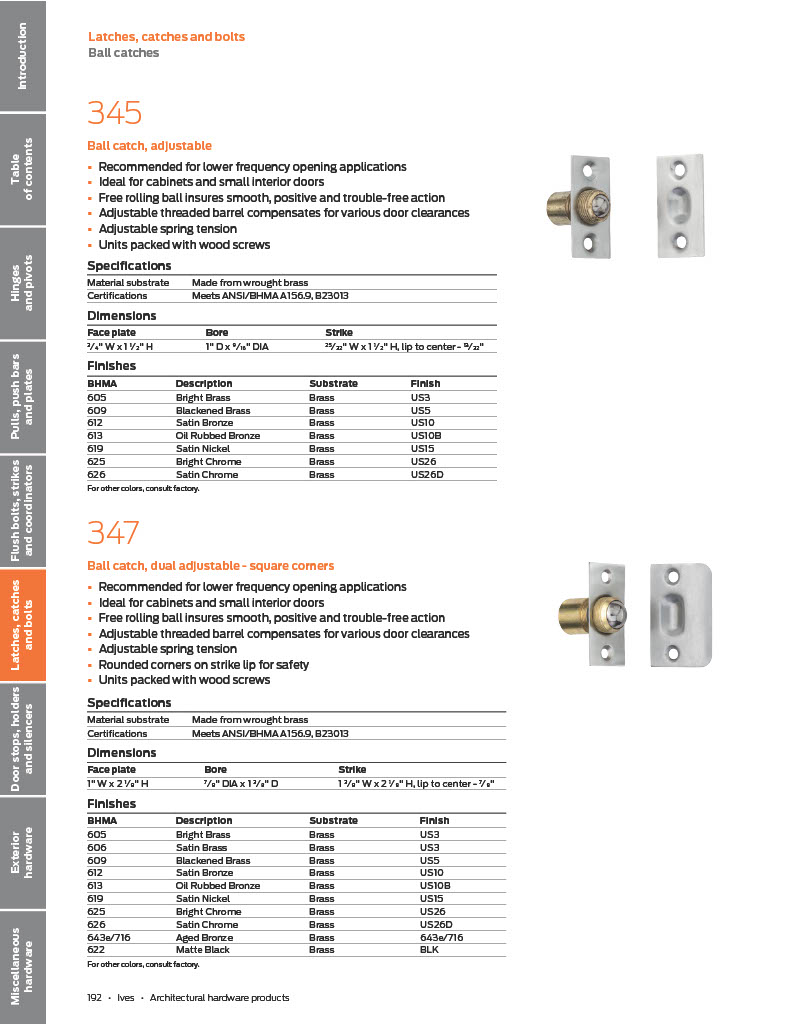

Ives 347 Specifications

• SKU: 347 B3 (standard); select finish at time of order

• Also known as: Ives 347B3, 347B4, 347B5, 347B10, 347B10B, 347B15, 347B26, 347B26D, ives ball catch 347, ives brass ball catch 347b

• Standard: ANSI/BHMA A156.9 B23013

• Material: Wrought brass

• Type: Dual adjustable ball catch, catch-in-door installation

• Ball: Free rolling

• Barrel: Adjustable threaded (compensates for door clearance variation)

• Spring: Adjustable tension

• Strike type: Lip strike for jamb mounting

• Face plate: 1" W x 2-1/8" H

• Bore required: 7/8" diameter x 1-3/8" deep

• Strike dimensions: 1-3/8" W x 2-1/8" H; lip to center 7/8"

Finish Options: All Eight Variants

Eight wrought brass and bronze finish options cover standard commercial and architectural specifications:

347B3 is Bright Brass (605). 347B4 is Satin Brass (606). 347B5 is Antique Brass (609). 347B10 is Satin Bronze (612). 347B10B is Oil Rubbed Bronze (613). 347B15 is Satin Nickel (619). 347B26 is Polished Chrome Plated (625). 347B26D is Satin Chrome Plated (626).

The B10B Oil Rubbed Bronze (613) is among the most specified finish variants for applications where existing hardware is in antique or oil rubbed bronze finish and the ball catch needs to match. The 347B10B is the correct model code for that finish.
