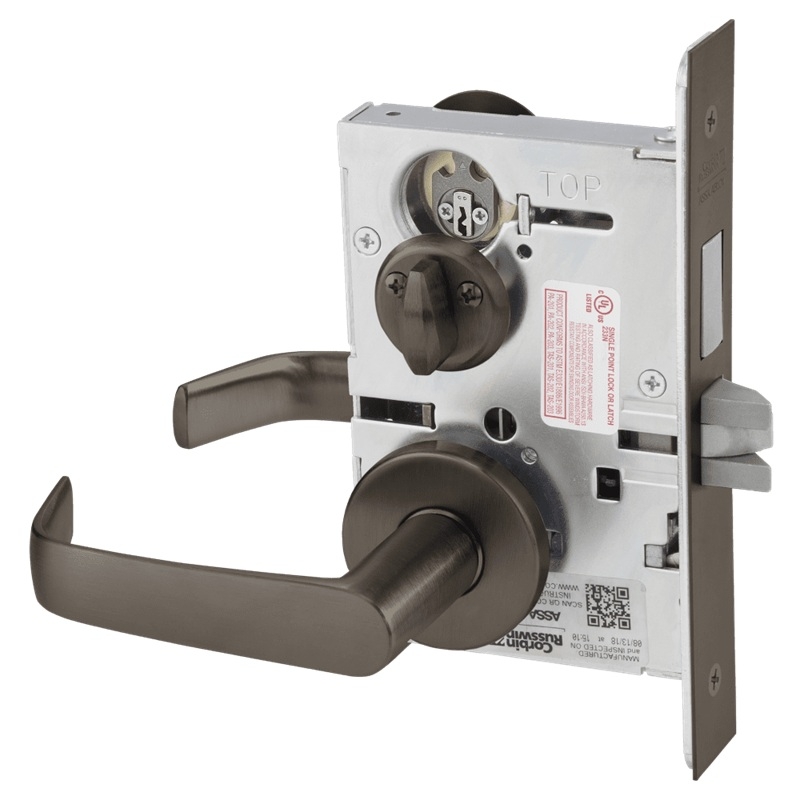

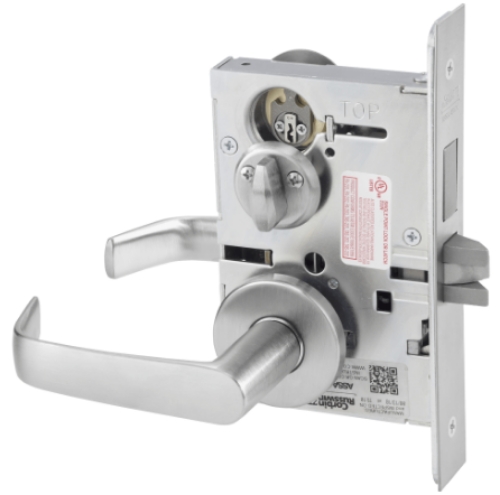

Corbin Russwin ML2030 NSA Privacy, Bedroom or Bathroom Mortise Lock, NS Lever, A Rose

Picture of Corbin Russwin ML2030 NSA Privacy, Bedroom or Bathroom Mortise Lock, NS Lever, A Rose
2030
ML2024-NSA
ML2024-Finishes
1-Page2-ML2
1-Page3-ML2
Picture of Corbin Russwin ML2030 NSA Privacy, Bedroom or Bathroom Mortise Lock, NS Lever, A Rose
Picture of Corbin Russwin ML2030 NSA Privacy, Bedroom or Bathroom Mortise Lock, NS Lever, A Rose
Picture of Corbin Russwin ML2030 NSA Privacy, Bedroom or Bathroom Mortise Lock, NS Lever, A Rose
Picture of Corbin Russwin ML2030 NSA Privacy, Bedroom or Bathroom Mortise Lock, NS Lever, A Rose
2030
ML2024-NSA
ML2024-Finishes
1-Page2-ML2
1-Page3-ML2
Picture of Corbin Russwin ML2030 NSA Privacy, Bedroom or Bathroom Mortise Lock, NS Lever, A Rose
Picture of Corbin Russwin ML2030 NSA Privacy, Bedroom or Bathroom Mortise Lock, NS Lever, A Rose
Picture of Corbin Russwin ML2030 NSA Privacy, Bedroom or Bathroom Mortise Lock, NS Lever, A Rose
naxt
prev

Product Details

Corbin Russwin ML2030-NSA Mortise Privacy Lock

Privacy Bedroom or Bathroom - ANSI F19

Latchbolt by grip either side unless outside grip locked by thumbturn Deadbolt by thumbturn grip inside or by emergency release tool outside. Inside grip simultaneously retracts latchbolt and deadbolt and unlocks outside grip.

Handing: Quick reversible. The lockset can be re-handed without disassembling the lock case

Door Thickness: 1-3/4" (44mm) standard.

Backset: 2-3/4" (70mm).

Lockcase: Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.

Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcasem front.

Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4"(19mm) throw.

Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.

Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw.

Hub Knob: stainless steel, 9/32" (7mm) x 9/32" (7mm). Lever: steel, 5/16" (8mm). (Including ) 3/8" (10mm) stainless steel.

Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm). C. to c. knob/lever to thumbturn: 2-7/16" (62mm).

Strike: Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available

Warranty: Ten-year limited.

Model: Corbin Russwin ML2030NSA, ML2030NSA605, ML2030NSA606, ML2030NSA612, ML2030NSA613, ML2030NSA625, ML2030NSA626, ML2030NSA630, ML2030NSA722

Corbin Russwin ML2030 NSA Privacy, Bedroom or Bathroom Mortise Lock, NS Lever, A Rose

SKU: ML2030 NSA

In Stock

$822.88

Finish *

626 - Satin Chrome
626 - Satin Chrome
613 - Oil Rubbed Bronze
613 - Oil Rubbed Bronze

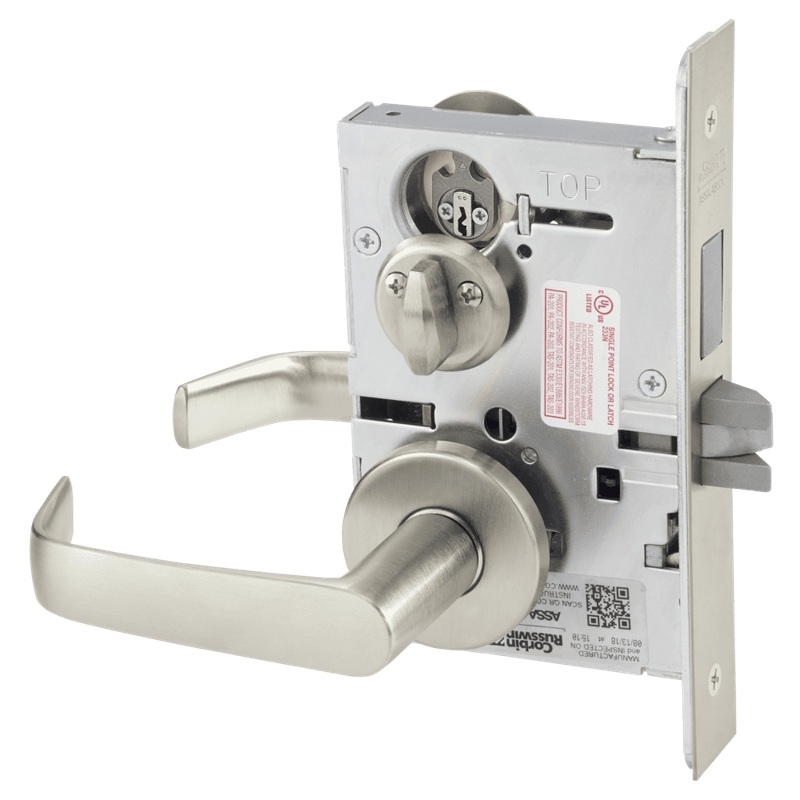

630 - Satin Stainless Steel
630 - Satin Stainless Steel

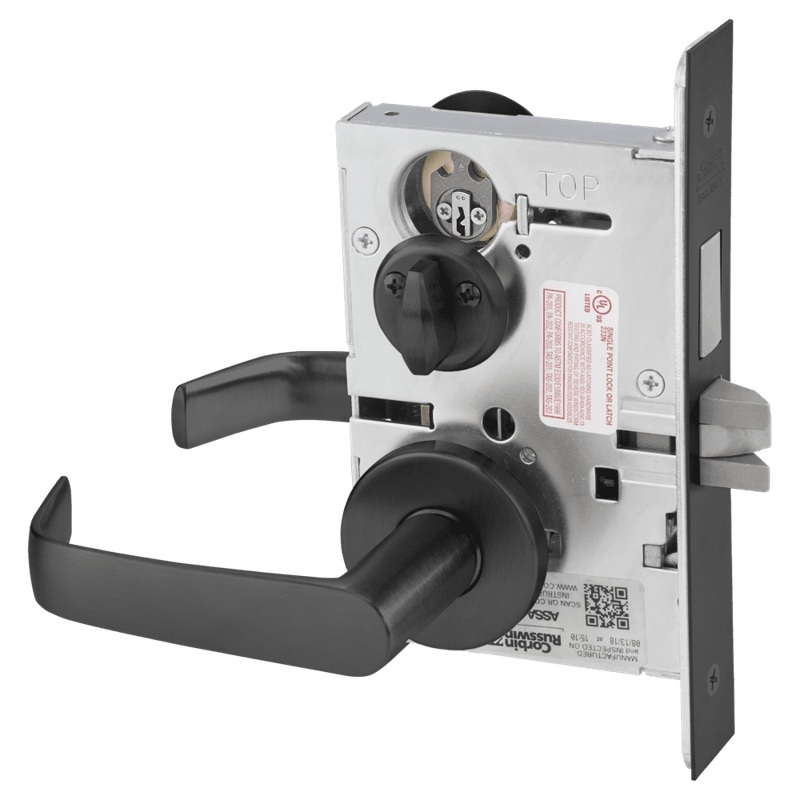

722 - Black Oxidized Bronze
722 - Black Oxidized Bronze

About this item

The Corbin Russwin ML2030 NSA is a Grade 1 privacy mortise lock from the ML2000 series for bedroom and bathroom function in commercial and institutional settings. If you've been searching "ml2030" looking for this lock -the ML2030 is the privacy function (ANSI F19) in the ML2000 family. NSA identifies the trim: N is the Newport lever, S is the sectional escutcheon format, and A is the A rose trim configuration. This is the non-keyed version -no cylinder, no key slot on the outside.



ANSI F19 Privacy Function: How It Works at the Door



ANSI F19 is the privacy/bedroom/bathroom function. The outside lever retracts the latch normally when the deadbolt is not engaged. From inside, a thumbturn throws the deadbolt -when the deadbolt is extended, the outside lever becomes rigid and won't retract the latch. The door is secured.



From inside, the inside lever is always free. Turning it does three things simultaneously: retracts the latchbolt, retracts the deadbolt, and unlocks the outside grip -all in one motion. That single-action release means anyone inside can exit immediately without first turning the thumbturn to retract the deadbolt and then turning the lever. That simultaneous retraction is required behavior for life-safety compliance on egress doors.



From outside, the deadbolt can't be retracted by the outside lever. Access from outside requires either a key (on keyed versions) or the emergency release tool -a small, thin tool inserted into a release hole on the outside escutcheon that mechanically retracts the deadbolt from outside without a key.



The Emergency Release Tool: What the Thimble Wrench Is



If you arrived on this page searching "thimble wrench" -you're looking for the emergency outside release tool for the ML2030 privacy function. The outside escutcheon has a pinhole opening designed for a narrow release tool (sometimes called a thimble wrench or privacy spline tool) that a staff member inserts from outside to retract the deadbolt when someone inside is incapacitated or unable to unlock the door themselves. Contact American Locksets to confirm the correct emergency release tool number for the ML2030 LFIC or standard cylinder configuration.



ML2030 vs Other ML2000 Functions



The ML2030 is one of several ML2000 series functions. The ML2010 is passage -both levers always free, no locking. The ML2057 is storeroom -outside lever always rigid, key only from outside. The ML2030 privacy sits between passage and storeroom: normally both sides are free, but the inside user can lock the outside lever with the thumbturn when privacy is needed. Healthcare exam rooms, restrooms, hotel guest rooms, and private offices are the standard applications.

Specifications



Model: Corbin Russwin ML2030 NSA

Series: ML2000 Series Mortise Lock

ANSI Function: F19 -Privacy/Bedroom or Bathroom

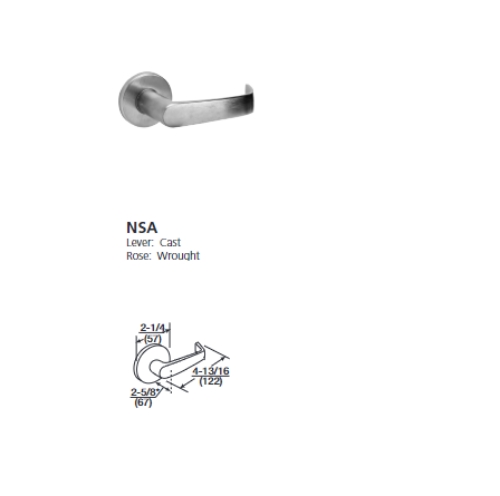

Trim: N = Newport lever, S = Sectional escutcheon, A = A rose

Keying: Non-keyed (NSA -no cylinder)

Latchbolt: 2-piece mechanical, anti-friction insert, 3/4" throw

Deadbolt: One-piece stainless steel, 1" throw

Inside Egress: Simultaneous retraction of latchbolt and deadbolt by inside lever

Emergency Outside Release: Tool access (thimble wrench/privacy spline)

Backset: 2-3/4" (70mm)

Lockcase: Heavy-gauge steel, 5-7/8" x 4" x 15/16"

Front Plate: Heavy-gauge steel, 8" x 1-1/4"

Door Thickness: 1-3/4" standard

Strike: Wrought brass/bronze/stainless, ANSI straight lip, 4-7/8" x 1-1/4"

Handing: Quick Reversible without disassembling lockcase (Patent #6,349,982)

Grade: ANSI/BHMA A156.13 Series 1000, Grade 1

UL: cUL listed for 3-hour fire doors

Warranty: 10 years



American Locksets has stocked Corbin Russwin ML2000 series locks since 2001.



Corbin Russwin ML2030-NSA Mortise Privacy Lock

Privacy Bedroom or Bathroom - ANSI F19

Latchbolt by grip either side unless outside grip locked by thumbturn Deadbolt by thumbturn grip inside or by emergency release tool outside. Inside grip simultaneously retracts latchbolt and deadbolt and unlocks outside grip.

Handing: Quick reversible. The lockset can be re-handed without disassembling the lock case

Door Thickness: 1-3/4" (44mm) standard.

Backset: 2-3/4" (70mm).

Lockcase: Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.

Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcasem front.

Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4"(19mm) throw.

Auxiliary Latchbolt: 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.

Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw.

Hub Knob: stainless steel, 9/32" (7mm) x 9/32" (7mm). Lever: steel, 5/16" (8mm). (Including ) 3/8" (10mm) stainless steel.

Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm). C. to c. knob/lever to thumbturn: 2-7/16" (62mm).

Strike: Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available

Warranty: Ten-year limited.

Model: Corbin Russwin ML2030NSA, ML2030NSA605, ML2030NSA606, ML2030NSA612, ML2030NSA613, ML2030NSA625, ML2030NSA626, ML2030NSA630, ML2030NSA722

Picture of Corbin Russwin ML2030 NSA Privacy, Bedroom or Bathroom Mortise Lock, NS Lever, A Rose
Corbin Russwin ML2030 NSA Privacy, Bedroom or Bathroom Mortise Lock, NS Lever, A Rose

Product code: ML2030 NSA

In Stock

$822.88

$822.88

Certification/Compliance ANSI: Meets A156.13 Series 1000, Operational and Security Grade 1. Meets A117.1 Accessibility Code.

Federal: Meets FF-H-106C.

UL /ULC-UL10C Positive Pressure: All locks listed for A label and lesser class doors, 4' (122cm) x 10' (305cm) single or 8' (244cm) x 10' (305cm) pair. Letter F and UL symbol on armored front indicate listing.

California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard)All levers with returns, return to within 1/2" (13mm) of door face.
