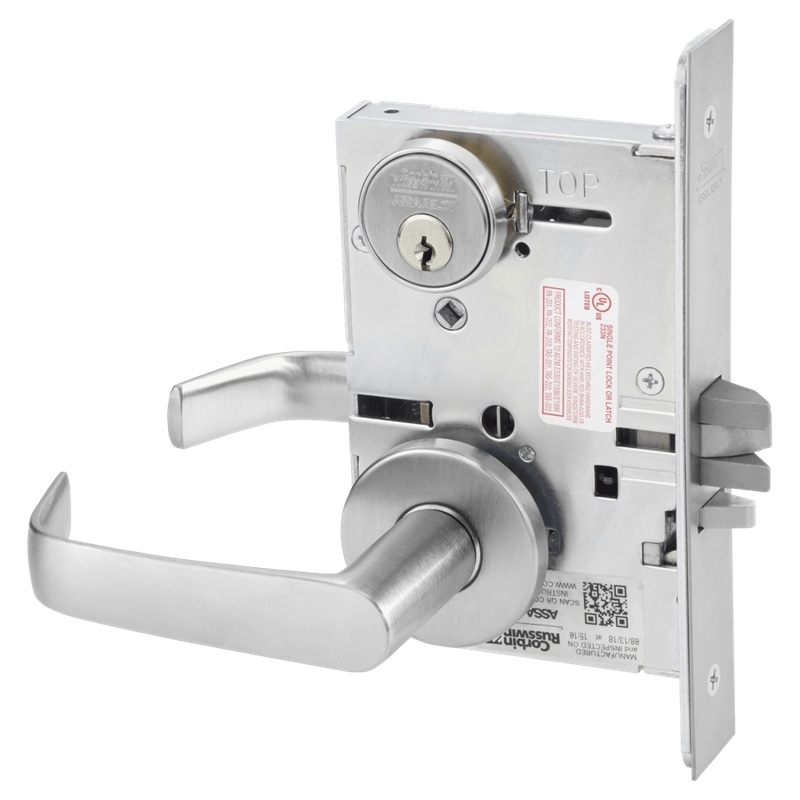

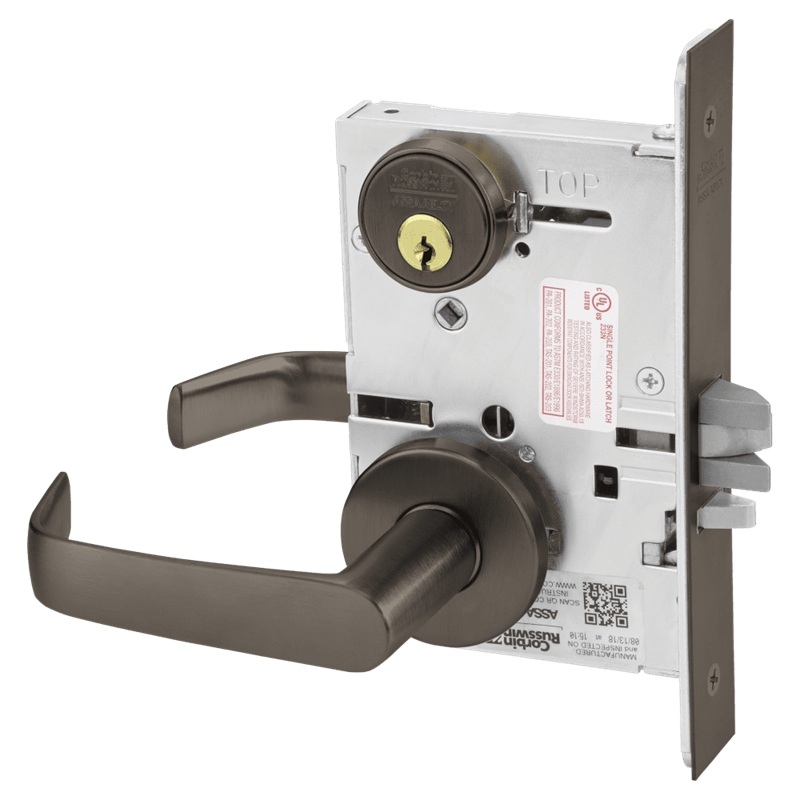

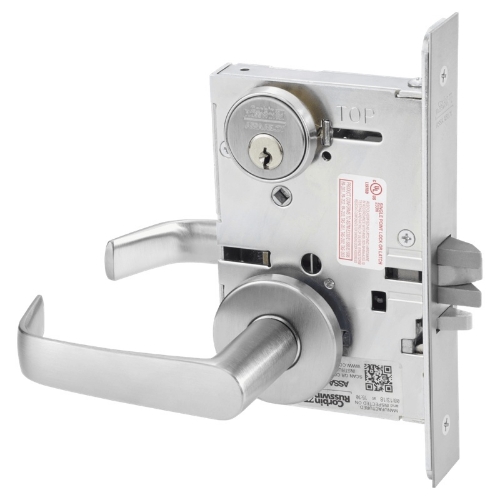

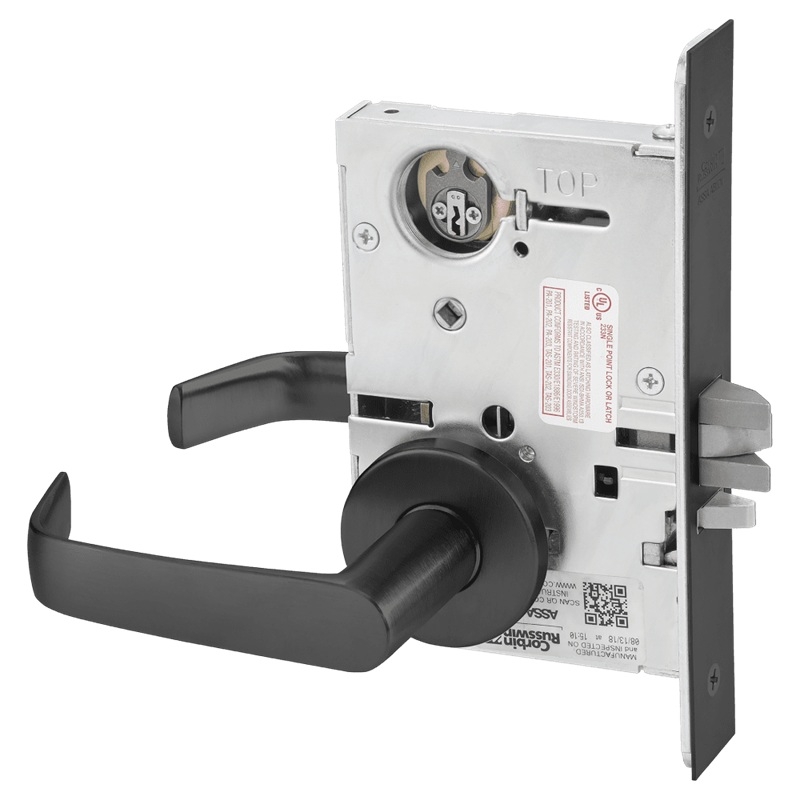

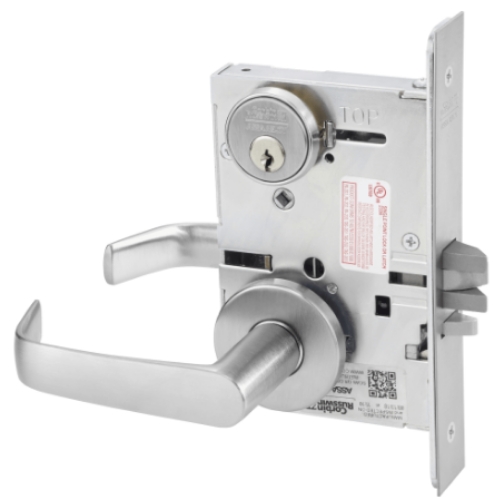

Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever

Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
ML-2057
ML2024-NSA
1Corbin-Russwin-FinishesChart
1-Page2-ML2
1-Page3-ML2
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
ML-2057
ML2024-NSA
1Corbin-Russwin-FinishesChart
1-Page2-ML2
1-Page3-ML2
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
naxt
prev

Product Details

Corbin Russwin ML2057-NSA Mortise Storeroom Lock

Storeroom or Closet - ANSI F07

Latchbolt by grip inside or by key outside. Outside grip always rigid. Auxiliary latch deadlocks latchbolt. Inside grip always free.

Handing: Quick reversible. The lockset can be re-handed without disassembling the lock case

Door Thickness: 1-3/4" (44mm) standard.

Backset: 2-3/4" (70mm).

Lockcase: Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.

Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcasem front.

Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4"(19mm) throw.

Auxiliary Latchbolt9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.

Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw.

Hub Knob: stainless steel, 9/32" (7mm) x 9/32" (7mm). Lever: steel, 5/16" (8mm). (Including ) 3/8" (10mm) stainless steel.

Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm). C. to c. knob/lever to thumbturn: 2-7/16" (62mm).

Strike: Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available

Cylinder: Brass, 6-pin, L4 keyway standard. Optional cylinders available, 7-pin cylinder, Interchangeable core (IC)

Keys: Two nickel silver standard.

Keying Features Available: Master keying, Construction master keying

Warranty: Ten-year limited.

Model: Corbin Russwin ML2057NSA, ML2057NSA605, ML2057NSA606, ML2057NSA612, ML2057NSA613, ML2057NSA625, ML2057NSA626, ML2057NSA630, ML2057NSA722

Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever

SKU: ML2057 NSA

In Stock

$896.50

Finish *

626 - Satin Chrome
626 - Satin Chrome
613 - Oil Rubbed Bronze
613 - Oil Rubbed Bronze
630 - Satin Stainless Steel
630 - Satin Stainless Steel
722 - Black Oxidized Bronze
722 - Black Oxidized Bronze

Cylinder *

Conventional (Standard)
Conventional (Standard)

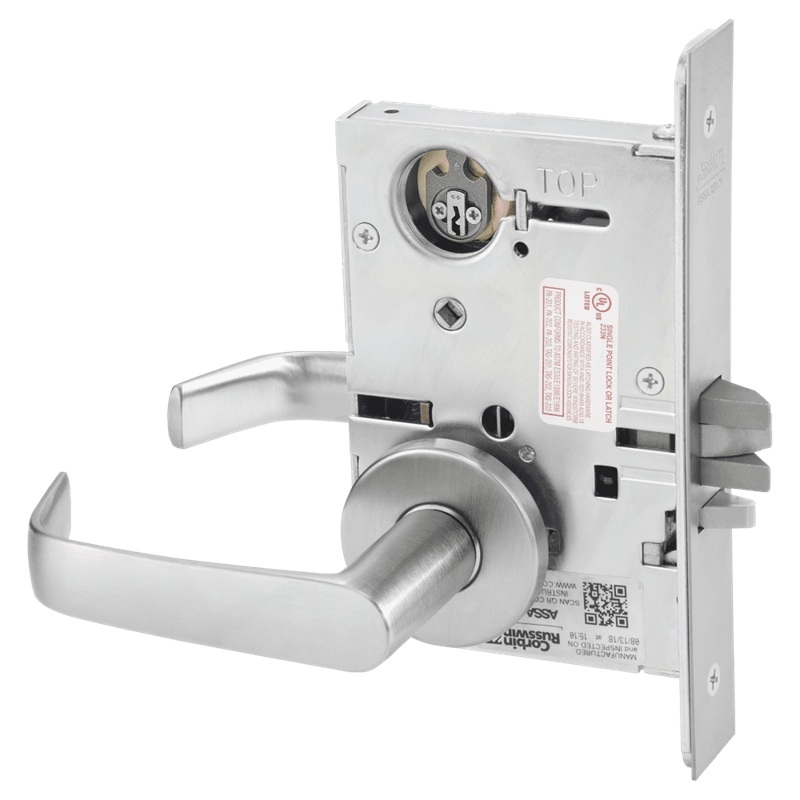

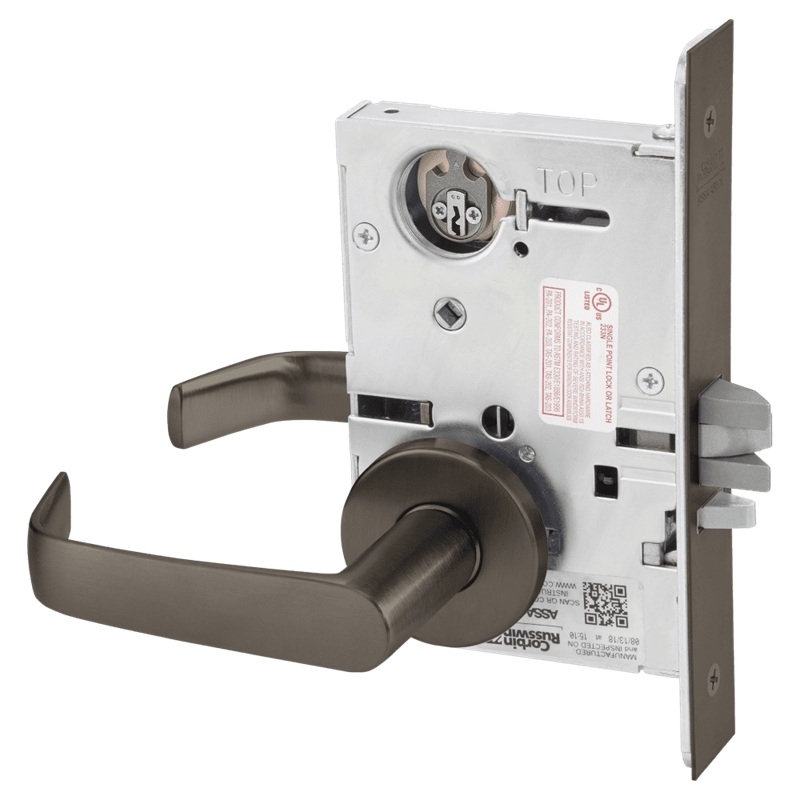

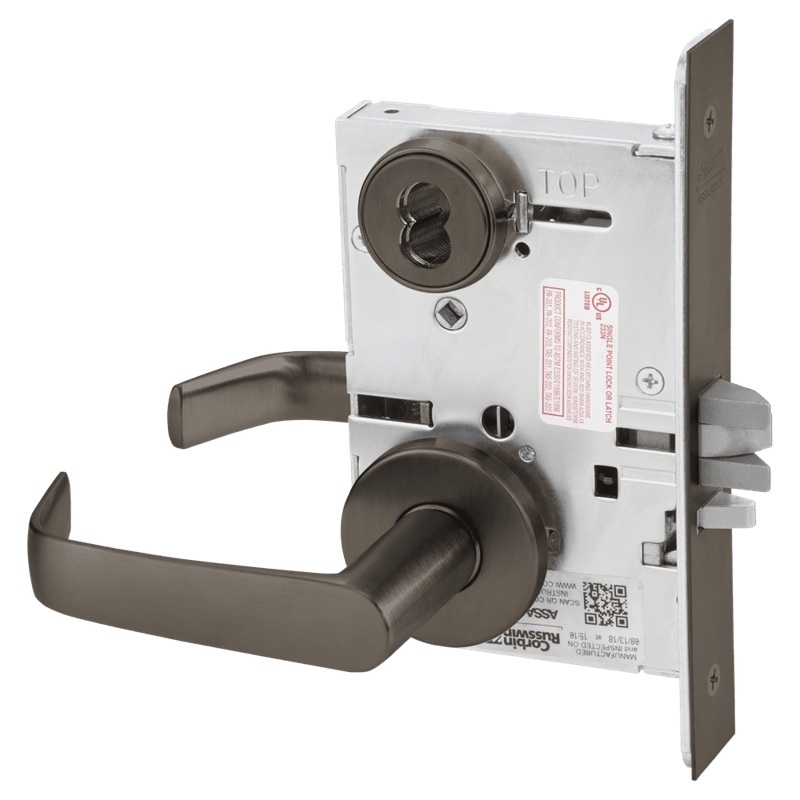

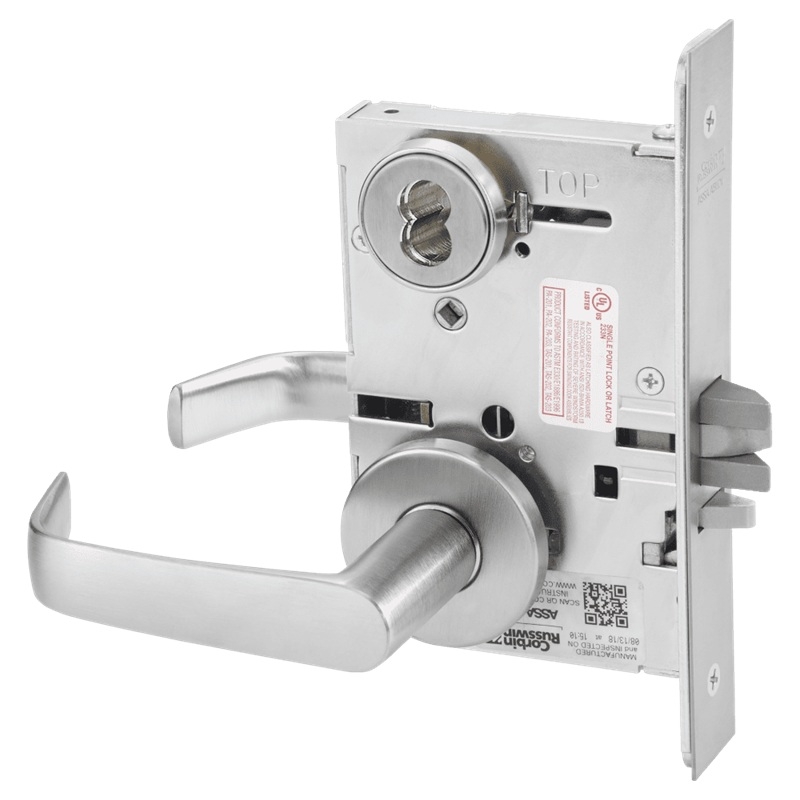

CL6 - Prepared for Interchangeable core, less core
CL6 - Prepared for Interchangeable core, less core
LC - Less Cylinder
LC - Less Cylinder

Keyway *

Keying *

About this item

The Corbin Russwin ML2057 NSA is a Grade 1 storeroom mortise lock from the ML2000 series. The model code breaks down as ML = mortise lock, 2057 = storeroom function (ANSI F07), N = Newport lever, S = sectional escutcheon, A = A rose trim configuration. If you've been searching "ml2057", "corbin russwin ml2057", or "corbin ml2057"this is the product. The ML2000 series is Corbin Russwin's standard Grade 1 mortise platform and the ML2057 is the storeroom/closet function in that family.



ANSI F07 Storeroom Function: What Happens at the Door



The ML2057 is ANSI function F07storeroom/closet. That means the outside lever is always rigid. It won't turn. Turning the outside lever without a key does nothing. The only way to retract the latch from outside is with a key in the outside cylinder. From inside, the lever is always freeanyone inside can grip the lever and exit immediately at any time without a key.



The auxiliary latch deadlocks the latchbolt as soon as the door closes. When the door is in the frame with the auxiliary latch depressed, the latchbolt can't be shimmed or pushed back. You need a key from outside to get in. That's the standard access control configuration for storerooms, medication rooms, server rooms, equipment rooms, and any space where unsupervised public access isn't permitted.

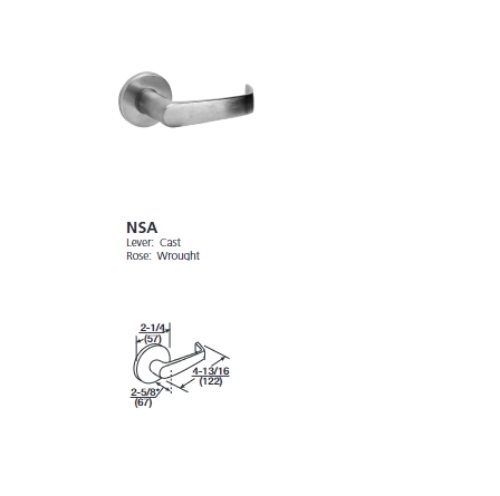

NSA Trim Configuration: Newport Lever and A Rose



The NS in this model means Newport lever in a sectional escutcheon format. The A at the end is the A rose, which is the standard round rose/escutcheon that surrounds the lever on the door face. The Newport lever is a straight horizontal design that meets ADA accessibility requirementsit operates without pinching, grasping, or twisting, and returns to within the required clearance of the door face.



If you've been searching "corbin russwin ml2057 ll 626"LL indicates lever/lever trim on both sides, and 626 is Satin Chrome. The ML2057 NSA 626 is the Satin Chrome finish configuration of this lock.



ML2057 vs ML2010: Understanding the Sibling Functions



The ML2010 appearing in this page's search data is a different ML2000 series functionML2010 is the passage function (ANSI F01), where both levers are always free and there's no locking. The ML2057 is the storeroom version where outside access requires a key. Both use the same lockcase platform, so if your project has a mix of passage and storeroom doors, the ML2000 series handles both within a single hardware schedule.



Full Specifications



Model: Corbin Russwin ML2057 NSA

Series: ML2000 Series Mortise Lock

ANSI Function: F07Storeroom/Closet

Lever: Newport (N), ADA compliant

Trim: Sectional escutcheon (S), A Rose

Backset: 2-3/4" (70mm)

Lockcase: Heavy-gauge steel, 5-7/8" x 4" x 15/16", zinc dichromate plated

Front Plate: Heavy-gauge steel, 8" x 1-1/4" x 3/32"

Latchbolt: 2-piece mechanical, anti-friction insert, 3/4" throw

Auxiliary Latchbolt: 9/16" effective throw, 3/8" deadlocking

Deadbolt: One-piece stainless steel, 1" throw

Strike: Wrought brass/bronze/stainless, ANSI straight lip, 4-7/8" x 1-1/4"

Cylinder: Brass, 6-pin, L4 keyway standard (LC, CL6, SFIC options available)

Keys: Two nickel silver standard

Handing: Handed; Quick Reversible without disassembling lockcase

Door Thickness: 1-3/4" standard

Grade: ANSI/BHMA A156.13 Series 1000, Grade 1

UL: cUL listed for 3-hour fire doors

ADA: Compliant per national codes

Warranty: 10 years



American Locksets has stocked Corbin Russwin ML2000 series locks since 2001.



Corbin Russwin ML2057-NSA Mortise Storeroom Lock

Storeroom or Closet - ANSI F07

Latchbolt by grip inside or by key outside. Outside grip always rigid. Auxiliary latch deadlocks latchbolt. Inside grip always free.

Handing: Quick reversible. The lockset can be re-handed without disassembling the lock case

Door Thickness: 1-3/4" (44mm) standard.

Backset: 2-3/4" (70mm).

Lockcase: Heavy-gauge chrome plated steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm).

Front: Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors.

Armored Front: Wrought brass, bronze or stainless steel attached by machine screws to lockcasem front.

Latchbolt: 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4"(19mm) throw.

Auxiliary Latchbolt9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking.

Deadbolt: One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw.

Hub Knob: stainless steel, 9/32" (7mm) x 9/32" (7mm). Lever: steel, 5/16" (8mm). (Including ) 3/8" (10mm) stainless steel.

Spacing: C. to c. knob/lever to cylinder: 3-5/8" (92mm). C. to c. knob/lever to thumbturn: 2-7/16" (62mm).

Strike: Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available

Cylinder: Brass, 6-pin, L4 keyway standard. Optional cylinders available, 7-pin cylinder, Interchangeable core (IC)

Keys: Two nickel silver standard.

Keying Features Available: Master keying, Construction master keying

Warranty: Ten-year limited.

Model: Corbin Russwin ML2057NSA, ML2057NSA605, ML2057NSA606, ML2057NSA612, ML2057NSA613, ML2057NSA625, ML2057NSA626, ML2057NSA630, ML2057NSA722

Picture of Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever
Corbin Russwin ML2057 NSA Storeroom or Closet Mortise Lock, NS Lever

Product code: ML2057 NSA

In Stock

$896.50

$896.50

Certification/Compliance ANSI: Meets A156.13 Series 1000, Operational and Security Grade 1. Meets A117.1 Accessibility Code.

Federal: Meets FF-H-106C.

UL /ULC-UL10C Positive Pressure: All locks listed for A label and lesser class doors, 4' (122cm) x 10' (305cm) single or 8' (244cm) x 10' (305cm) pair. Letter F and UL symbol on armored front indicate listing.

California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard)All levers with returns, return to within 1/2" (13mm) of door face.
