Corbin Russwin ML2060 Mortise Privacy Lock

About this item

The Corbin Russwin ML2060 is the ANSI Function F22 privacy configuration within the ML2000 Series Grade 1 commercial mortise lock family. It is built for healthcare exam rooms, hotel guestrooms, office consultation rooms, accessible restrooms, and any application where interior occupants require one-motion privacy locking from inside while facility staff retain emergency access from the exterior. American Locksets is an authorized ASSA ABLOY Corbin Russwin dealer stocking the ML2060 with same-day shipping and free shipping on orders over $300.

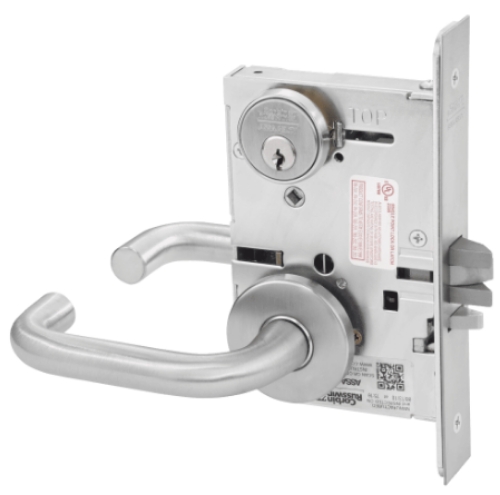

Corbin Russwin ML2060 Mortise Privacy Lock, Grade 1, ANSI Function F22

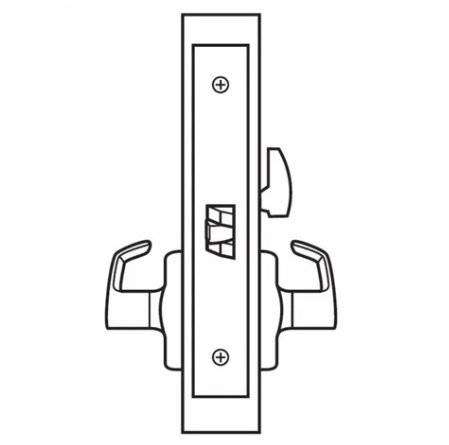

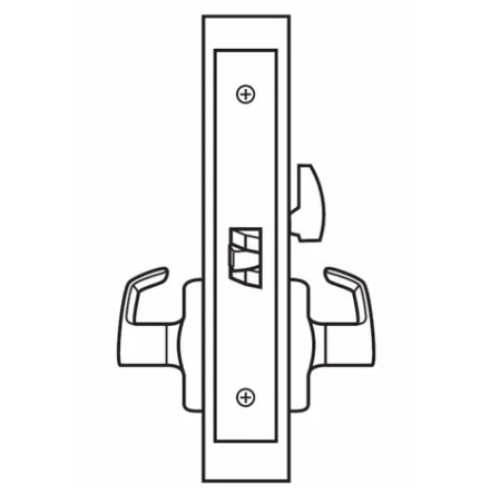

The ML2060 operates under ANSI F22. The latchbolt retracts by grip from either side, except when the outside grip is locked by the thumbturn on the inside. Operating the inside grip, closing the door, or using an emergency key from the exterior all unlock the outside grip. The inside grip is always free for immediate egress. That behavioral combination covers the two competing requirements on a privacy door: genuine lockable privacy from inside, and reliable staff access in medical emergencies or safety incidents without forcing the door.

The ML2060 cannot be specified with M19S or M19SN trim options. Confirm trim selection before ordering.

ML2060 Function F22 vs. Other Corbin Russwin Privacy Functions

The ML2000 Series covers several privacy function variants and choosing the correct one matters on a hardware schedule.

The ML2060 uses Function F22, where the inside thumbturn locks the outside grip and the inside grip is always free. This is the standard choice for hotel rooms, healthcare consultation rooms, and office privacy doors.

The ML2020 uses Function F02, a bedroom/bathroom privacy function where the deadbolt controls access rather than a thumbturn locking the grip. The ML2030 uses Function F19, another thumbturn-controlled privacy function with slightly different egress behavior. The ML2069 uses Function F26 for institutional privacy settings. Match the function to the application before specifying, not to the price point.

Mechanical Specifications

The ML2000 lock case is heavy-gauge steel measuring 5-7/8 inches (149mm) high by 4 inches (102mm) wide by 15/16 inch (24mm) deep. The front plate is heavy-gauge steel, 8 inches (203mm) by 1-1/4 inches (32mm), accommodating flat doors and doors beveled up to 1/8 inch (3mm) in 2 inches (51mm). Wide front option D138 is available for 1-3/8 inch (35mm) doors.

The armored front is wrought brass, bronze, or stainless steel, attached by machine screws to the lock case front. The ML2000VR vandal-resistant configuration uses security Torx screws.

Key component specs:

• Backset: 2-3/4 inch (70mm) standard

• Door thickness: 1-3/4 inch (44mm) standard, optional thicknesses available

• Latchbolt: 2-piece mechanical with anti-friction insert, 5/8 inch (16mm) by 1 inch (25mm) by 3/4 inch (19mm) throw

• Auxiliary latchbolt: 9/16 inch (14mm) effective throw, 3/8 inch (10mm) effective auxiliary latch deadlocking

• Deadbolt: One-piece stainless steel, 19/32 inch (15mm) by 1-1/4 inch (32mm) by 1 inch (25mm) throw

• Strike: ANSI straight lip standard, 4-7/8 inch (124mm) by 1-1/4 inch (32mm), 1-1/8 inch (29mm) lip to center

Patented Quick Reversible Latchbolt and UL Cycle Performance

The ML2060 includes Corbin Russwin's patented Quick Reversible feature, which allows the lock to be re-handed without disassembling the lock case. On multi-door projects, this eliminates the need to pre-specify handling at the factory or return hardware for re-configuration in the field. One SKU covers both handed applications.

UL independent cycle testing on the ML2000 Series was completed at 14.5 million cycles, verified under ID V875753. That number significantly exceeds the 1 million cycle Grade 1 certification requirement under ANSI/BHMA A156.13. For high-traffic institutional doors where the lock needs to outlast the renovation cycle, that margin matters. The lock carries a 10-year manufacturer warranty and UL listing for use on 3-hour fire-rated doors. Windstorm and hurricane certification applies, confirming local code requirements at time of specification.

Cylinder Compatibility and Trim Options

The ML2060 accepts Corbin Russwin mortise cylinders directly and is compatible with cylinders from most other manufacturers, including Schlage, Sargent, Falcon, and others, through the standard mortise cylinder format. For maximum key control, Corbin Russwin Pyramid and Access 3 high-security cylinders are available as cylinder options. The trim is through-bolted to the lock case for proper alignment and increased attack resistance.

The current listing at American Locksets is the LWA configuration, featuring the LW lever and A rose trim in 626 Satin Chrome. Additional lever styles, rose designs, and escutcheon options are available across the ML2000 trim catalog.

For the complete ML2000 function range, see the full Corbin Russwin ML2000 Series collection. For all available lever and trim configurations, browse ML2000 All Levers. The complete mortise locks and commercial locks catalogs cover the full range of hardware stocked by American Locksets as authorized dealers.
