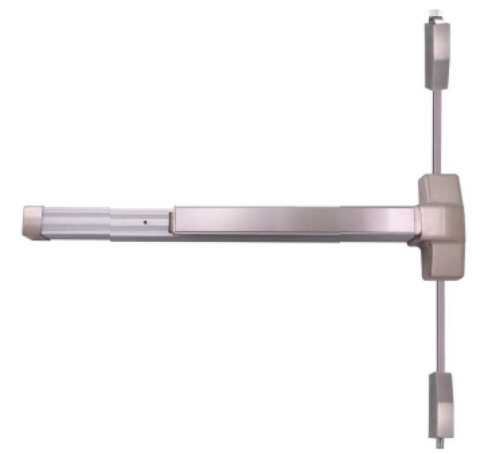

Design Hardware DH-1000V-33-32D Heavy Duty Vertical Rod Exit Device, With Hex Key Dogging - Satin Stainless Steel

Design Hardware DH-1000V-33-32D Heavy Duty Vertical Rod Exit Device,With Hex Key Dogging - Satin Stainless Steel

ANSI:Meets ANSI - A156.3 - Grade 1 Standards

UL Listings:UL Listed for Panic Exit Hardware

ADA:Meets ADA requirements ANSI A117.1 with Lever Trim

Handing:Non Handed - Completely Reversible

Construction:Heavy Duty Extruded Anodized Aluminum Channel & Steel Chassis

Marine Grade:Marine Grade 316 Stainless Steel option available

Top Latch:U Shaped Top Latch for Secure Engagement with strike (not electric strike compatible)

Bottom Latch:Drop Bolt Style Bottom Latch Secures into flat strike & hole in the floor

Dogging:5/32" Hex Key Dogging Standard on Panic Exit Hardware

Cylinder Dogging:Cylinder Dogging Kits available for new or existing exit devices

Device Lengths:33" for 3'-0" wide doors and 42" for 3-8" to 4'-0" wide doors

Min. Door Width:33" device can be cut down to fit on 2-8 wide door 42" device can be cut down to fit on 3'-4" wide door

Door Heights:7"-0" Standard - Extended Top Rods available for up to 10'-0" tall doors

Center Case Dim:8" Height x 2 7/8" Wide x 2 13/16" Thick - 4 1/2" Minimum stile required

Mechanism Case Dim:2 3/16" Height x 2 3/16" Wide

Projection:3 3/8" Undogged - Pushbar Neutral & 2 13/16" Dogged - Pushbar Depressed

Fasteners:Wood, Machine & Self Tapping Machine Screws (F1000V includes thru bolts)

Trim & Accessories:Latch filler included, Exterior Trims, Shim Kits & other accessories available

Warranty:Limited Lifetime Warranty
