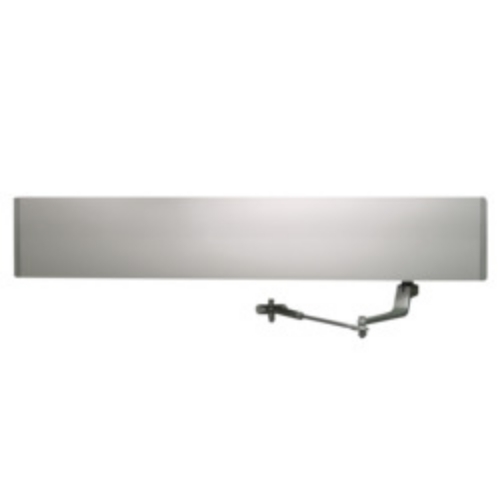

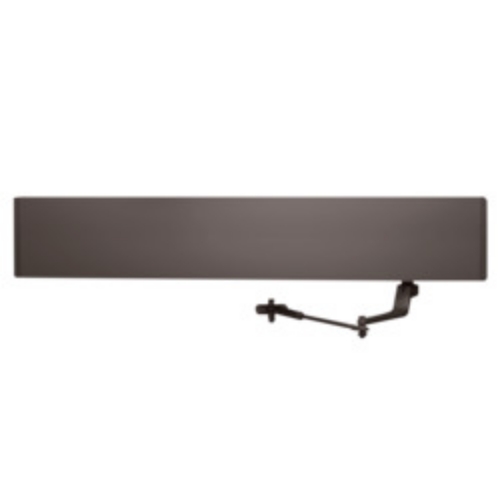

Detex AO19-1 Low Energy Automatic Door Operators for Single Doors

Detex AO19-*1 Low Energy Automatic Door Operators for Single Doors*- For 36"Doors

Finish - AL - Clear Finish

The AO19 Series Automatic Operator for single doors is an easy to install, heavy duty product for high use and high abuse low energy applications. The AO19 Series meets requirements for ANSI/BHMA A156.19 (American National Standard for Power Assist and Low Energy Power Operated Doors) and provides standard features that meet the requirements of the American Disabilities Act.

 Benefits

Economical operator provides safe and easy access in medium to high-traffic and security areasProvides ADA compliant access to handicap applicationsQuiet operationHanger plate allows quick installationSelf-contained unit in an extruded case allows easy access for maintenance and adjustmentsWorks with existing access control, locking and computer signal devicesReduced service calls due to heavy-duty construction3-way low-voltage ON/OFF/HOLD switch for ease of service and setup115VAC power plug-in mounted in headerEasy manual useFeatures

Available in single, pair (twin) for independent, simultaneous and dual egress openingsPower close applies a reverse power to aid in latch check position. Must be selected to activate.Single voltage source required to operateAdjustable delayed activation for sequenced vestibule doorsReverse on obstruction stalls a door during closing cycle and re-activates to open if an obstruction is sensed anytime before the latch position. Must be selected to activate.Adjustable closing speedPush & Go (Use for Handicap) activates when door is manually pushed to open. Must be selected to activate.Electric lock relay provides an adjustable delay before door opens to unlock an electric strike, maglock or other types of electric locks - prevents bindingTechnical Information

Power Requirements -

 115VAC 60 HZ 3 amps Motor  115VDC rectified  1/8 hp  60:1 gearbox

Module

Activation input terminalsForm C lock switch terminalsSafety lock-out built in17 additional features standard on boardEnclosure -

 7" h x 4 1/2" d  Approximately 50 lbs  Aluminum extrusion  Push reveal depth up to 11" with standard arm. Extended arm available.  Pull reveal depth up to 5"

Detex Limited Warranty

3 Year Mechanical / 1 year Electrical Limited Manufacturers Warranty

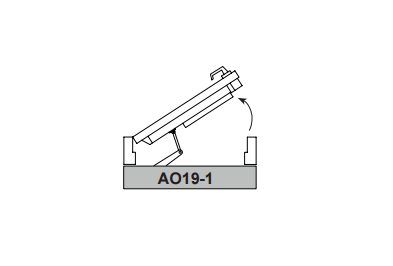

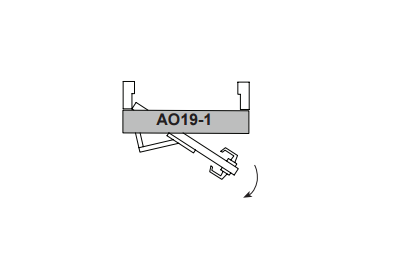

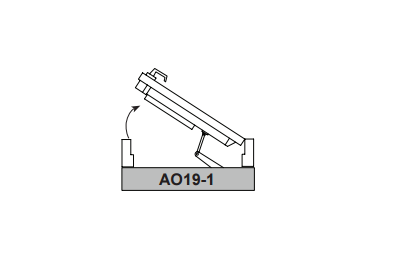

Model:Detex AO19, AO19-1, AO19-1xLH Push, AO19-1xRH Push, AO19-1xLH Pull, AO19-1xRH Pull

**

Listings and Approvals

Cerified to ANSI/UL 325 Tested - ANSI 156.19

Meets ADA requirements

Certified to CAN/CSA 247-92

3-Hour Fire Listed
