LCN 9542 Senior Swing Closer (Push Side)

LCN 9542 Senior Swing Closer (Push Side)

SINGLE DOOR, SURFACE MOUNT (PUSH), OFFSET PIVOT/BUTT HINGE

Features & Benefits

****Push 'N Go permits non-switch activation Power Boost provides additional latching force Electromechanical unit with microprocessor control Digital keypad for easy setup Meets International Building Code requirements and ANSI A156.19 UL approved for fire doorsSpecifications9540 series

operator is shipped with motor gearbox, control box, standard arm, header, and mounting hardware. Actuators available separately Single door, surface mounted.

Meets ADA requirements (power mode only).

Handed product.

36" header length is standard.

Adjustable hold open period of 2 to 32 seconds in automatic or manual mode.

9540 Seriesis fully compliant with UL 325 & UL 1998 and meets the provisions of ANSI A156.19. The 9530 Series is UL listed for fire-rated applications. The 9530 Series also meets the provisions of the Americans with Disabilities Act.

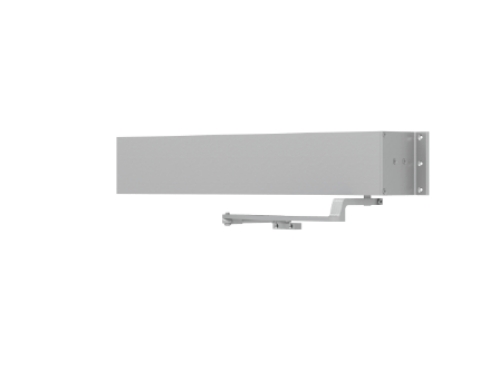

Model:9542-ANCLR Alum LH 36", 9542-ANDKBAlum LH 36", 9542-ANCLR Alum RH 36", 9542-ANDKBAlum RH 36"

Related Categories

• Power Operator
