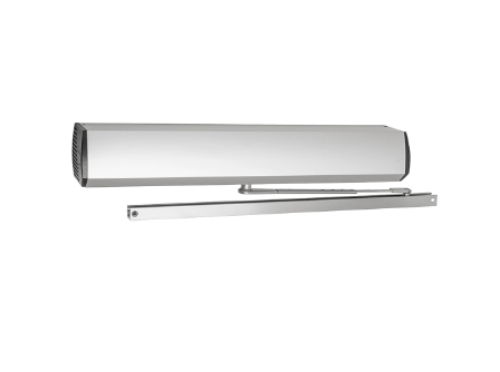

LCN 9131 Benchmark Closer - Pull Side

LCN 9131 Benchmark Closer - Pull Side - Premium Controller

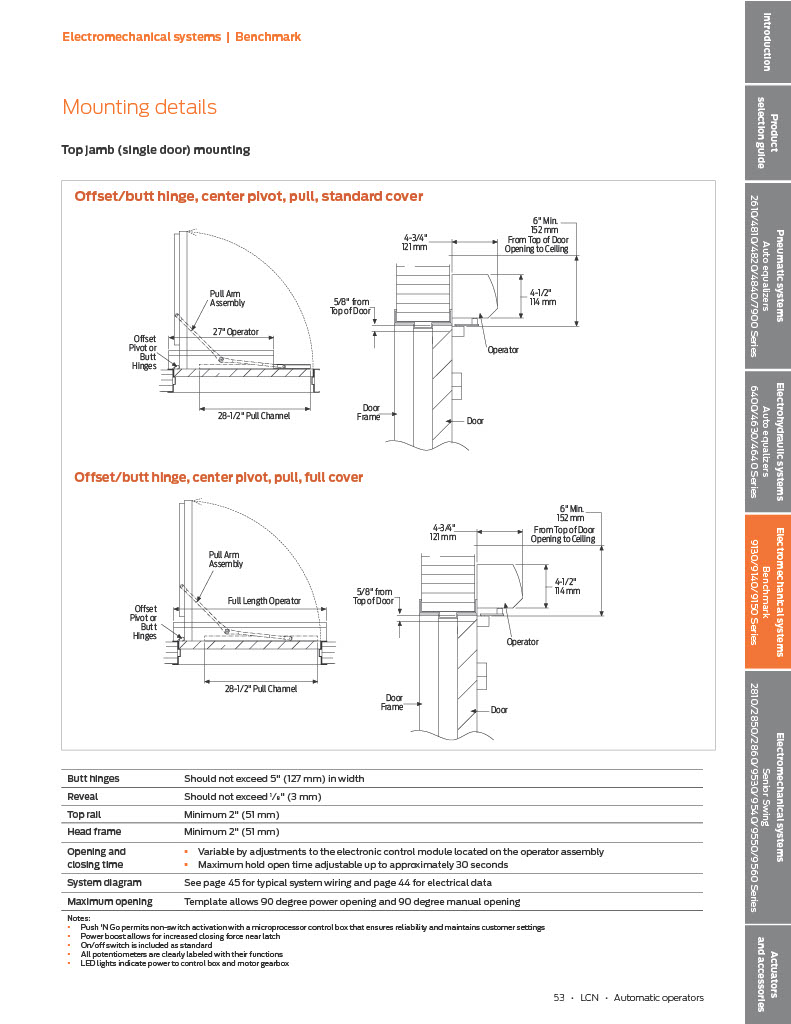

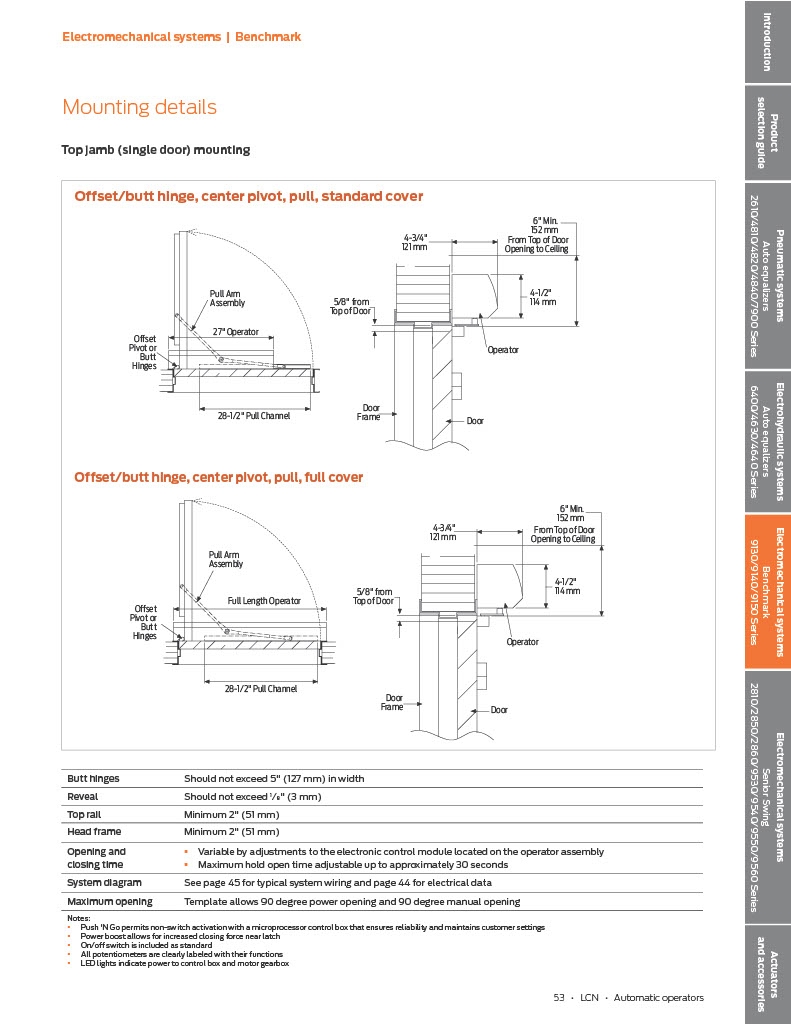

SINGLE DOOR, SURFACE MOUNT (PULL), OFFSET PIVOT/BUTT HINGE

Features & Benefits

****PushN Go permits non-switch activation Microprocessor control box ensures reliability and maintains customer settings Tested internally to over 3,000,000 cycles Power Boost allows for increased closing force near latch 9130 Seriesis fully compliant with UL325 and meets the provisions of ANSI A156.19. The 9130 Series is UL listed for fire-rated applications. The 9130 Series also meets the provisions of the Americans with Disabilities Act.

Specifications

***9130 series operator is shipped with motor gearbox, control box, mounting plate, standard arm, metal cover, standard track, wood and machine screws Single interior door, surface mounted ADA compliant On/Off switch included as standard Non-handed for either right or left swinging door 27cover is standard. Full length covers available up to 49for single doors All potentiometers clearly labeled with their functions LED lights indicate power to control box and motor gearbox  Model:*LCN 9130 Series,9131PC, 9131-STD PC ANCLR, 9131-STD PC ANBRZ, 9131-695, 9131-ANCLR

Related Categories

• Power Operator
