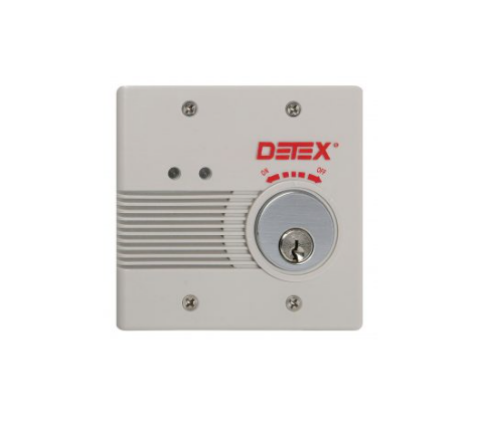

Detex EAX-2500S AC/DC External Powered Wall Mount Exit Alarm - Surface Mount

Detex EAX-2500S AC/DC External Powered Wall Mount Exit Alarm - Surface Mount

EAX-2500S- Surface Mount AC/DC-Powered Alarm Gray Finish (std.) (EA-561 Warning Sign and Back Box Included) - Does not include, but requires Magnetic Door Contacts (p. 129) and Transformer (p. 131)

Does Not Include, but Requires: Magnetic Door Contacts & Transformer - See Below

Benefits

- Field selectable features allow customer to choose status indicators and auto rearm options

- 100dB piezo horn provides security for restricted doors

- Easy to install using ordinary tools to save time and money

- New graphics on cover are easy to understand and make key operation simple

- Available in either gray or black to blend with any décor

Features

- Using 4"x4" double switch/outlet box

- Patented cam assembly automatically adjusts for different size cylinders without spacers

- Inside Key Control uses mortise cylinder with standard Yale cam

- AC/DC hardwired power with optional 9VDC backup battery

- Low battery alert is field selectable

- Silent arming feature is field selectable

- Tamper resistant housing and cover protects electronics

- Extended bypass allows alarm to remain silenced when door is open and automatically rearm upon closing of door

- Relay output for signaling external accessories

Detex Limited Warranty

3 Year Limited Manufacturers Warranty

Model:Detex 2500S EAX 2500S,  EAX2500S, , EAX-2500S, EAX-2500SBK,   EAX-2500S-BK

Mechanical Options

KS - Key Stop (Key removed only when armed)

EAX-2500 Flush or Surface

EAX-2500SK1 - Complete kit contains alarm, warning sign, surface back box, surface magnetic switch and 24VAC transformer (add suffix “xMC65 or xIC7" to include factory installed  cylinder)

EAX-2500FK1 - Complete kit contains ala m, warning sign, flush back box, flush magnetic switch and 24VAC transformer (add suffix “xMC65 or xIC7" to include factory installed cylinder)
