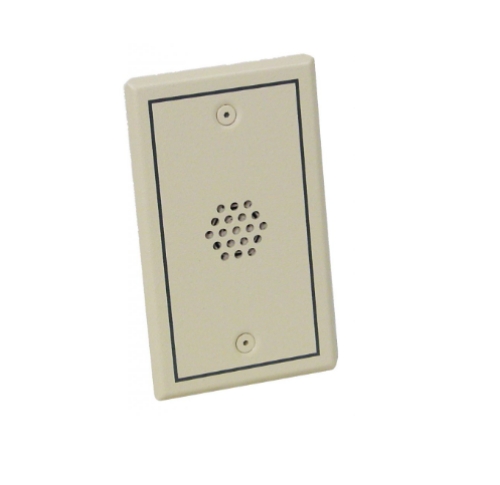

Detex EAX-411SK Surface Mount AC/DC Door Prop Alarm Kit, Back Box, Surface Magnetic Switch Contacts and 24VAC Transformer Included

Detex EAX-411SK Surface Mount AC/DC Door Prop Alarm Kit, Back Box, Surface Magnetic Switch Contacts and 24VAC Transformer Included

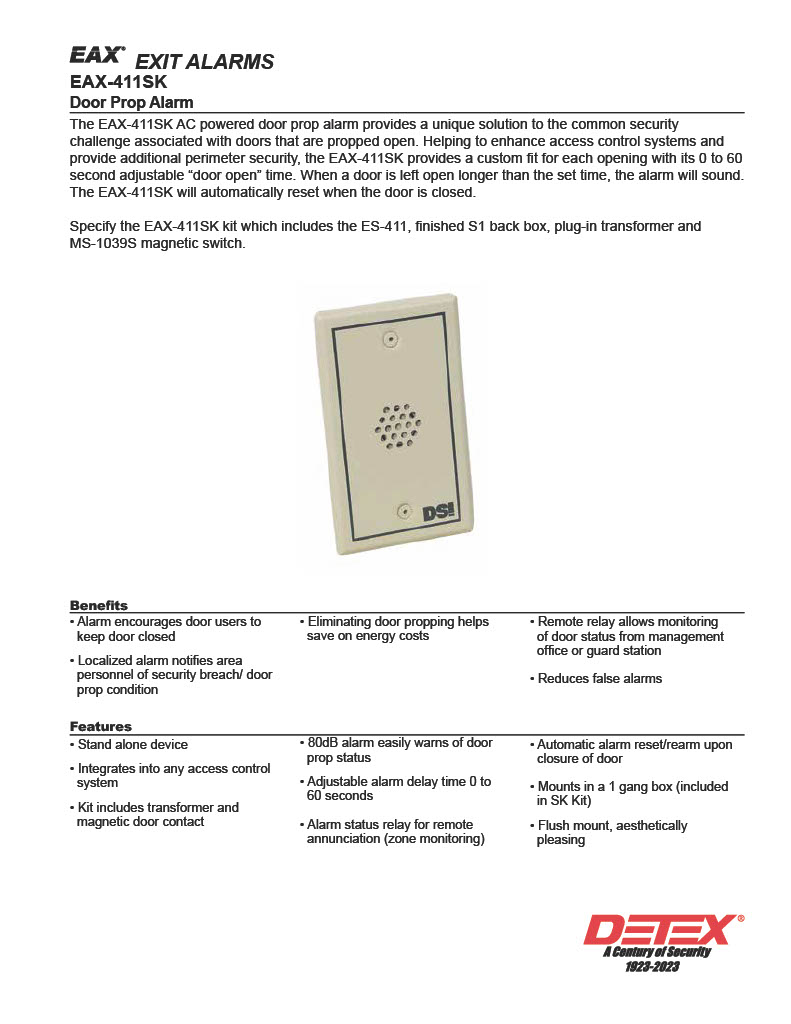

The EAX-411SK AC powered door prop alarm provides a unique solution to the common security challenge associated with doors that are propped open. Helping to enhance access control systems and provide additional perimeter security, the EAX-411SK provides a custom fit for each opening with its 0 to 60 second adjustable "door open" time. When a door is left open longer than the set time, the alarm will sound. The EAX-411SK will automatically reset when the door is closed.

EAX-411SKkit includes the ES-411, finished S1 back box, plug-in transformer and MS-1039S magnetic switch.

Benefits

- Alarm encourages door users to keep door closed - Localized alarm notifies area personnel of security breach/ door prop condition - Eliminating door propping helps save on energy costs - Remote relay allows monitoring of door status from management office or guard station  - Reduces false alarms

Features

- Stand alone device - Integrates into any access control system  - Kit includes transformer and magnetic door contact - 80dB alarm easily warns of door prop status  - Adjustable alarm delay time 0 to 60 seconds  - Alarm status relay for remote annunciation (zone monitoring)  - Automatic alarm reset/rearm upon closure of door  - Mounts in a 1 gang box (included in SK Kit) - Flush mount, aesthetically pleasing

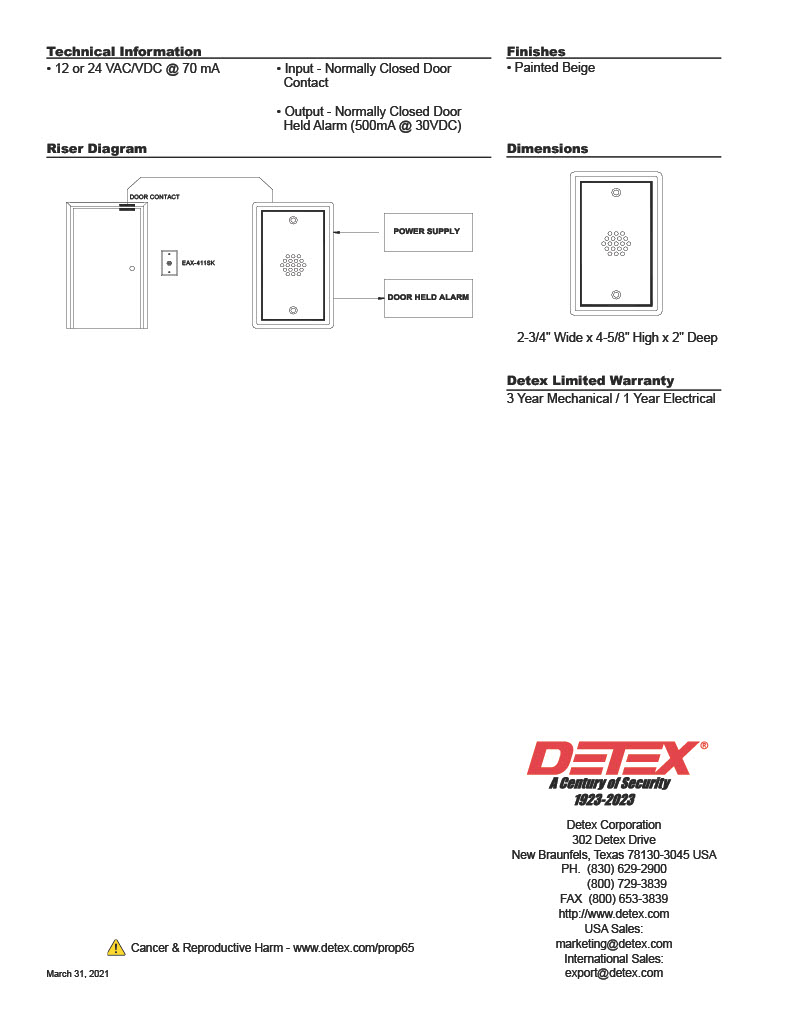

Technical Information

- 12 or 24 VAC/VDC @ 70 mA - Input - Normally Closed Door Contact  - Output - Normally Closed Door Held Alarm (500mA @ 30VDC)

Finishes:Painted Beige

Dimensions:2-3/4" Wide x 4-5/8" High x 2" Deep

Detex Limited Warranty:3 Year Limited Manufacturers Warranty
