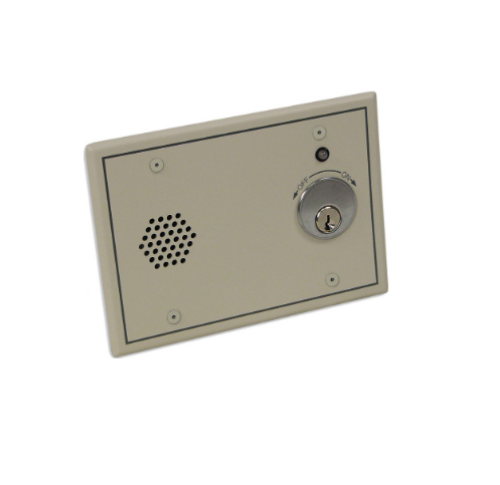

Detex EAX-4200SK Surface Mount AC/DC Exit Alarm Door Prop Alarm Kit, Back Box, Surface Magnetic Switch Contacts and 24VAC Transformer and Rim Cylinder Included

Detex EAX-4200SK Surface Mount AC/DC Exit Alarm Door Prop Alarm Kit, Back Box, Surface Magnetic Switch Contacts and 24VAC Transformer and Rim Cylinder Included

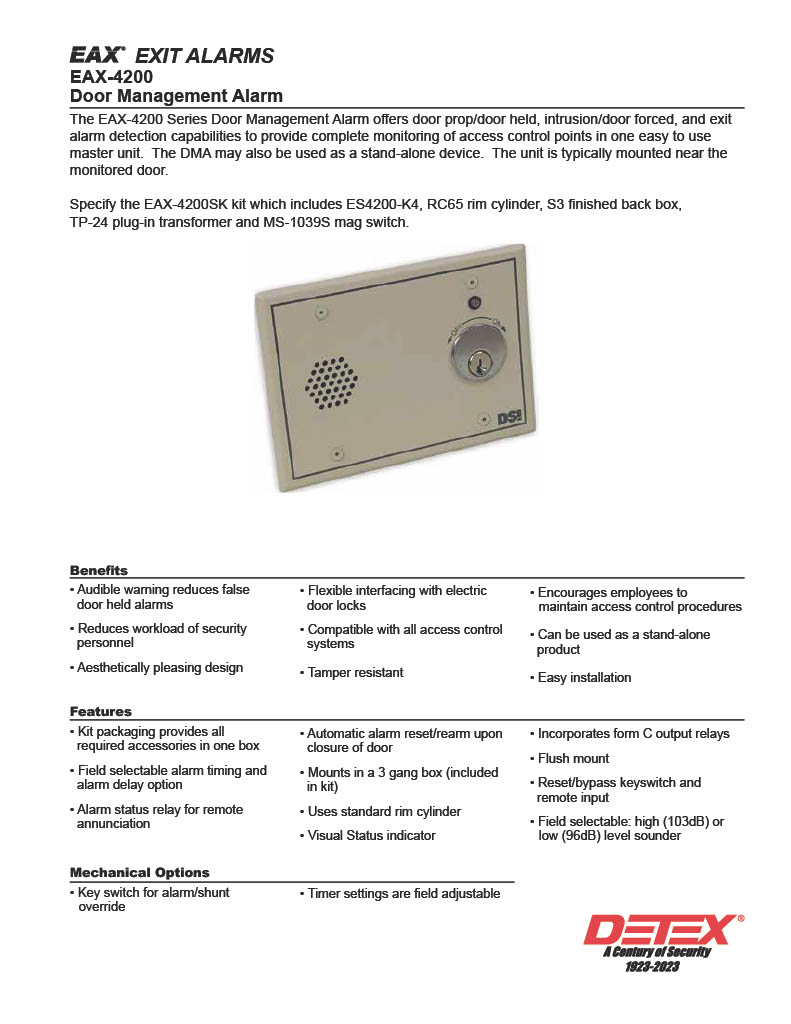

EAX-4200SKkit includes ES4200-K4, RC65 rim cylinder, S3 finished back box, TP-24 plug-in transformer and MS-1039S mag switch.

Benefits

• Flexible interfacing with electric door locks
• Compatible with all access control systems
• Tamper resistant
• Encourages employees to maintain access control procedures
• Can be used as a stand-alone product
• Easy installation
• Audible warning reduces false door held alarms
• Reduces workload of security Personnel
• Aesthetically pleasing design

Features

- Kit packaging provides all required accessories in one box - Field selectable alarm timing and alarm delay option - Alarm status relay for remote annunciation  - Automatic alarm reset/rearm upon closure of door - Mounts in a 3 gang box (included in kit)  - Uses standard rim cylilnder - Visual Status indicator - Incorporates form C output relays  - Flush mount  - Reset/bypass keyswitch and remote input  - Field selectable: high (103dB) or low (96dB) level sounder

Mechanical Options - Key switch for alarm/shunt override - Timer settings are field adjustable

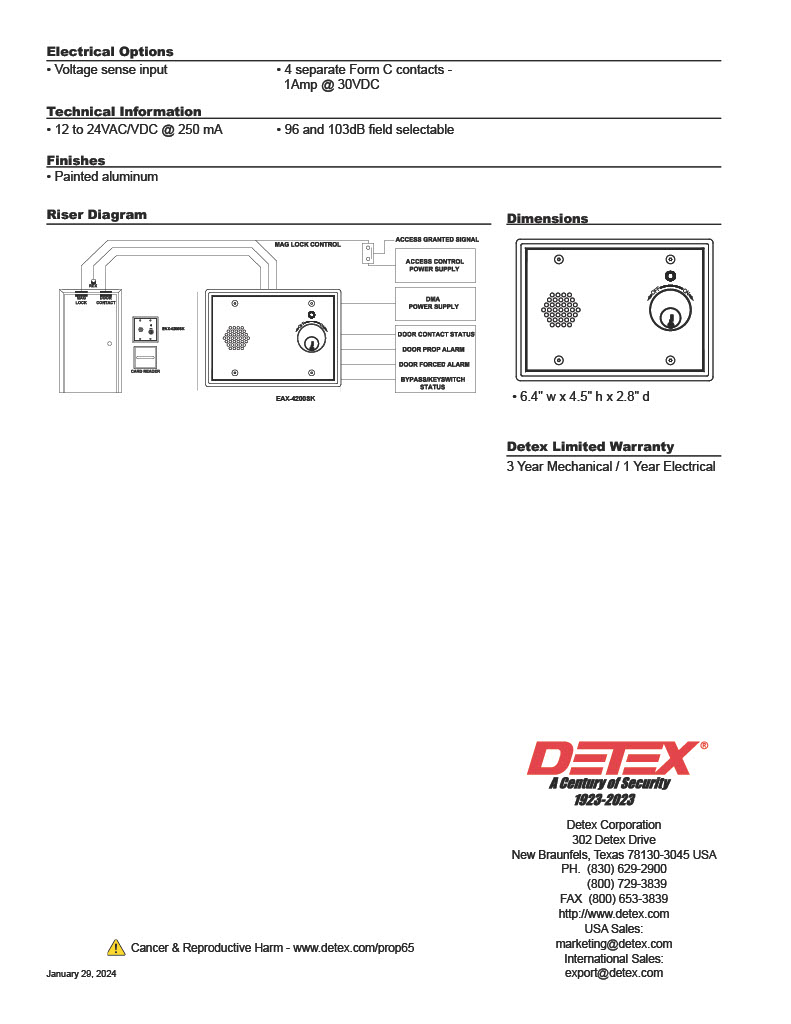

Electrical Options

- Voltage sense input - 4 separate Form C contacts - 1Amp @ 30VDC

Technical Information

- 96 and 103dB field selectable - 12 to 24VAC/VDC @ 250 mA

Finishes:Painted aluminum

Dimensions:6.4" w x 4.5" h x 2.8" d

Detex Limited Warranty:3 Year Limited Manufacturer's Warranty
