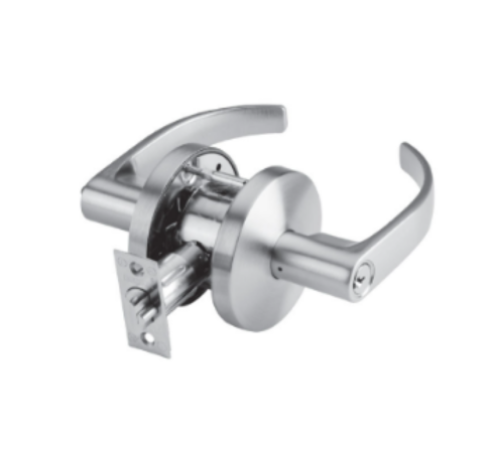

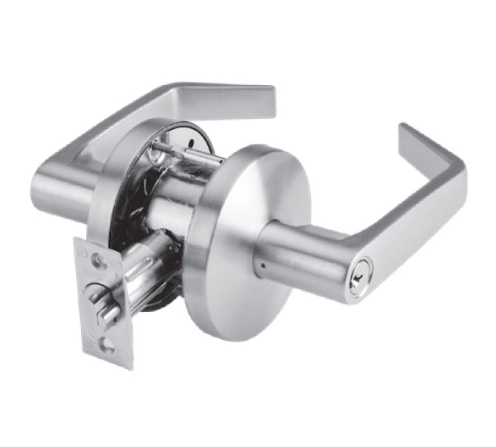

Dormakaba C570 LCC Classroom Lever Lock

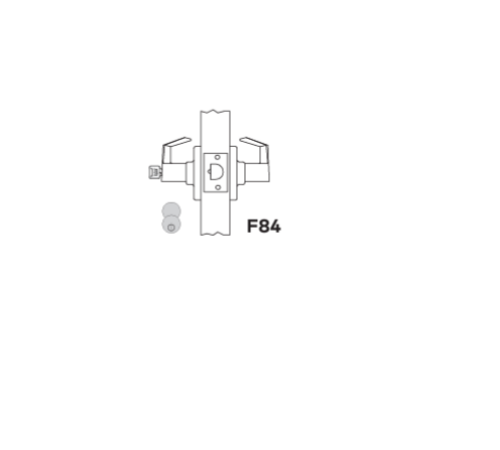

Dormakaba *C570 Classroom Lever Lock -* ANSI F84

Deadlocking latch bolt operated by trim either side, except when outside trim locked by key outside. - Outside trim locked or unlocked by key outside. - When outside trim locked, latch bolt operated by trim inside.

 Lever Style:LCC.

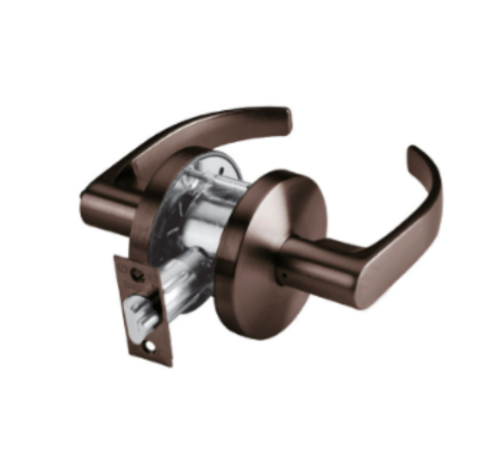

Finish:626 - Satin Chrome, 613 -Dark Oxidized Satin Bronze Finish

ANSI/BHMAA156.2 Series 4000 Grade 2.

Door Ranges:Lever and knob designs fit 1-3/8" - 1-7/8" (35 mm - 48 mm) standard.

Backset: **2-3/4" (70mm) standard.

Strike:ANSI 1-1/4" x 4-7/8" square strike 1-1/8" lip length strike standard.

Cylinder:will be provided in DORMA standard keyway with two (2) nickel silver keys.

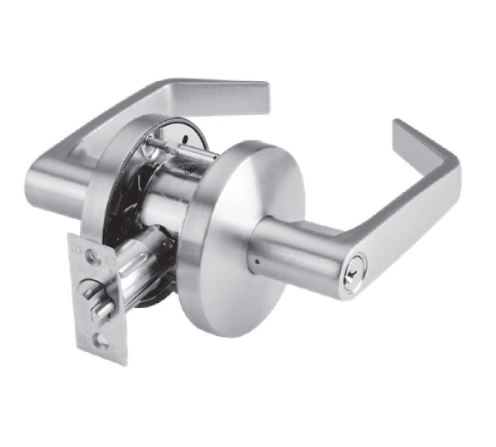

Model:Dormakaba C570, C570LRC, C570LCC, C570LRC626, C570LCC626

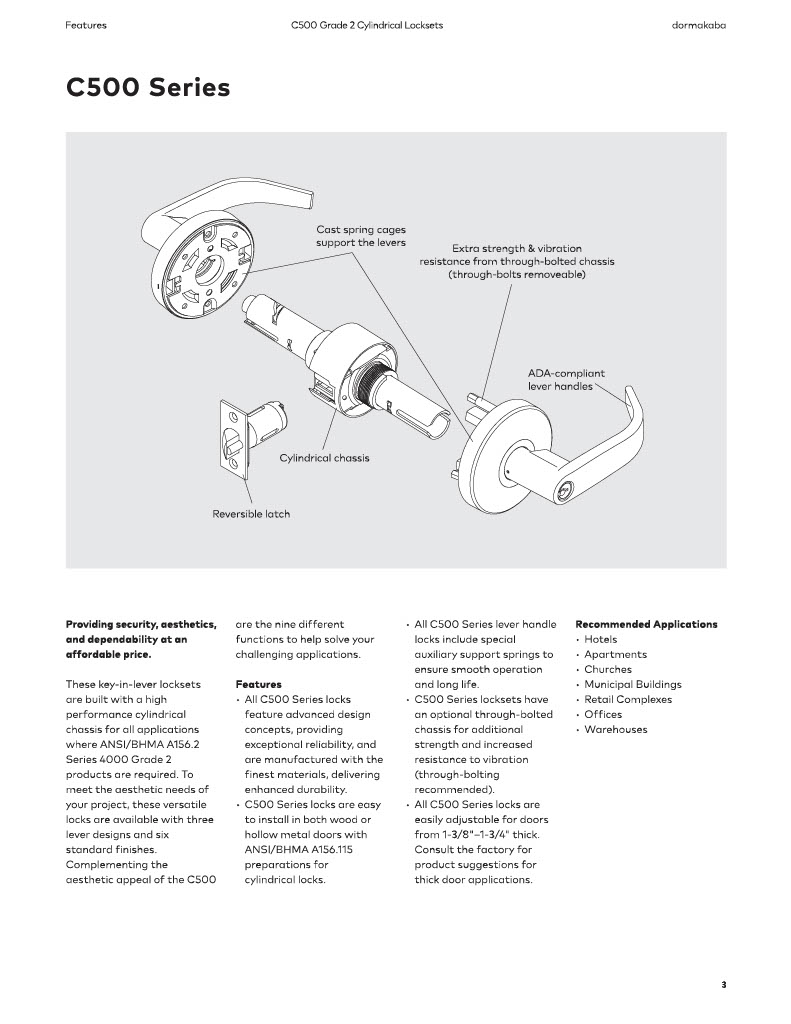

Technical Details- Non-handed for simple installation. - Key-in-lever lock is throughbolted for additional strength and security.- Thru bolts removable for retrofit applications.- Lock chassis constructed of steel, stainless steel and precision castings for superior strength and corrosion resistance.- Stainless steel latch bolt.- Auxiliary deadlocking latch bolt for preventing manipulation when door is closed (all keyed functions).

Listings & Approvals:UL/CUL listed 3 hour fire rated. Locks are listed for A label and lesser class doors. Meets A117.1 accessibility code and ADA requirements for barrier-free accessibility.
