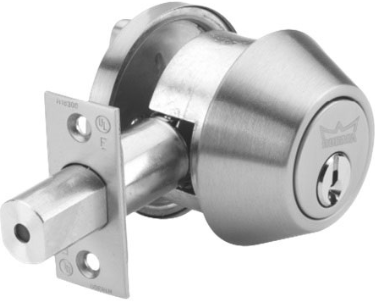

Dormakaba DB660D Cylinder x Thumbturn Deadbolt, Conventional Cylinder

Dormakaba *DB660 Cylinder x Thumbturn Deadbolt -ANSI-*E2152

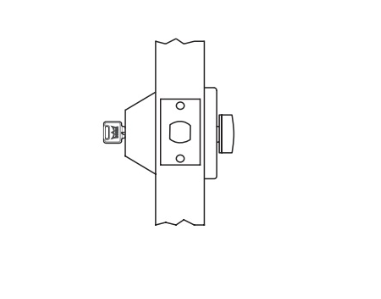

Dead bolt operated by key outside or by turn inside.

DB600 Grade 2 Tubular Auxiliary Dead Bolt.

Dead bolt front manufactured from stainless steel, brass, or bronze, depending on the selected finish.

Stainless steel, brass, or bronze strikes.

Adjustable 2-3/8" 2-3/4" backset, 1" throw dead bolt with hardened steel roller.

Solid steel reinforced strike plate with 2" screws.

Certifications:

The DORMA DB600 is certified to the requirements of ANSI A156.5 2001 Grade 2.

The DORMA DB600 is U.L./C.U.L. listed as 3-hour fire rated auxiliary lock.

Standard Configuration:Dead Bolts are packed standard with an adjustible 2-3/8" 2-3/4" backset and 1-1/8" x 2-3/4" strike, cylinders will be provided in DORMA standardCkeyway with two (2) nickel silver keys. Other options available from stock. Please specify.

Warranty:One (1) year limited warranty.

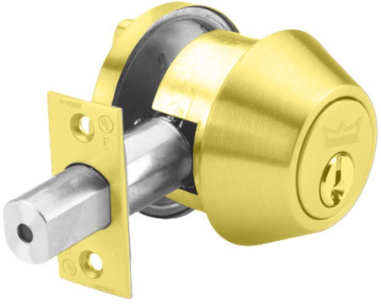

Finish: 630 - Satin Stainless Steel, 605 - Bright Brass, 613 - Oil Rubbed Bronze

Model:Dormakaba, DB660630, DB660605, DB660613

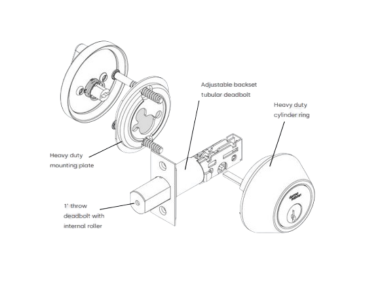

The 1" throw dead bolt includes a hardened steel roller to prevent sawing through the bolt. The heavy duty cylinders are through-bolted, with reinforced cylinder rings to protect against physical attack. Brass 6-pin cylinders are provided for security and durability. The solid steel strike plate reinforcement with 2" screws protects the door jamb against a kick-in attack.
