Dormakaba D862 Double Cylinder Deadbolt

Dormakaba *D862 Cylinder x Cylinder Deadbolt -ANSI-*E2141

Dead bolt operated by key either side Bolt automatically deadlocks when fully thrown.

D800 Grade 1 Tubular Auxiliary Dead Bolt.

Heavy Duty brass cylinder in a hardened steel housing.

Dead bolt front manufactured from stainless steel.

Solid steel strike.

1" throw dead bolt.

Solid steel reinforced strike plate with 3" screws for wood jamb installations.

Certifications:

The DORMA D800 is certified to the requirements of ANSI/BHMA A156.5 Grade 1.

The DORMA D800 is U.L. listed as 3-hour fire rated auxiliary lock.

Standard Configuration:Dead Bolts are packed standard with 2-3/4" backset and 1-1/8" x 2-3/4" strike, cylinders will be provided in DORMA standardCkeyway with two (2) nickel silver keys.

Warranty:Ten (10) year limited warranty.

Finish:626 - Satin Chrome, 605 - Bright Brass, 606 - Satin Brass, 613 - Oil Rubbed Bronze

Model:Dormakaba , D862626, D862605, D862606, D862613

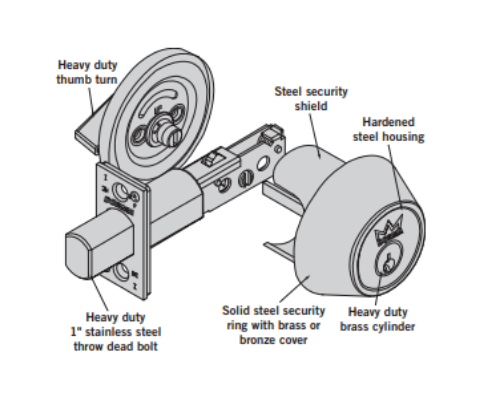

The D800 Series are Grade 1 dead bolts. The large dead bolt is made from stainless steel for strength and corrosion resistance. A heavy duty brass cylinder in a hardened steel housing surrounded by a heavy steel spin ring complete the security package in the door. This is coupled with a solid steel strike for use in a hollow metal frame and an additional reinforcing plate with 3" screws for wood jamb installations. All of these features provide an exceptionally strong and secure dead bolt.
