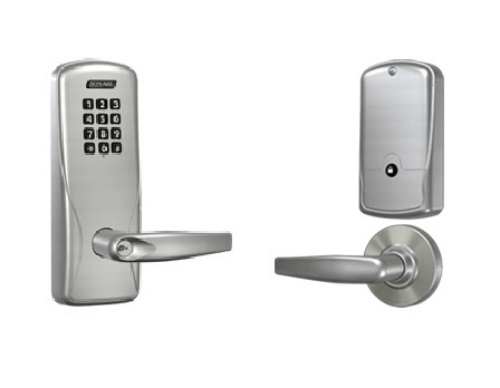

Schlage CO-100-CY-40-KP Cylindrical Keypad Electronic Lock - Privacy Function

CO-100-CY-40-KP

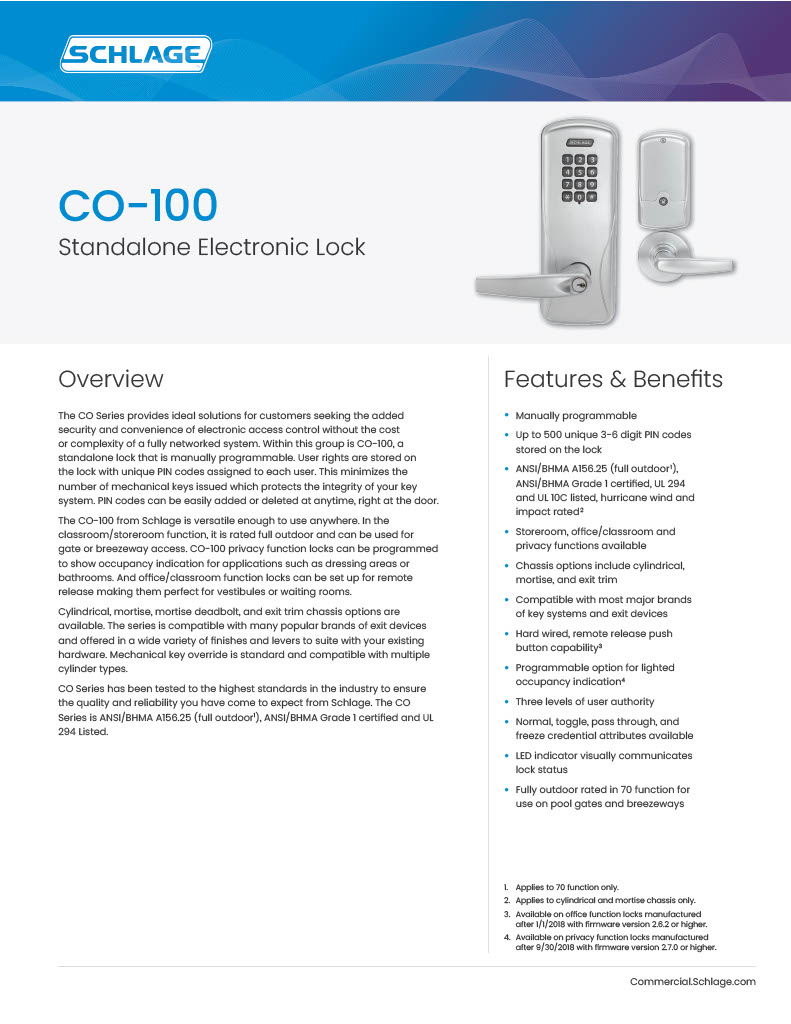

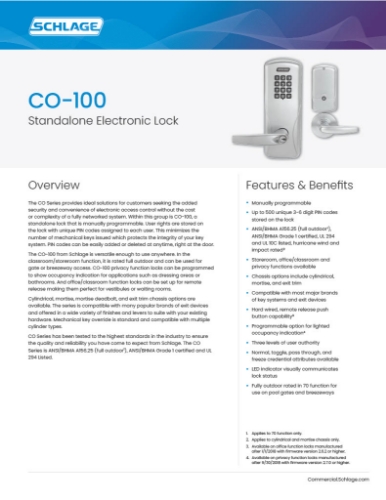

1-Page1-CO-100

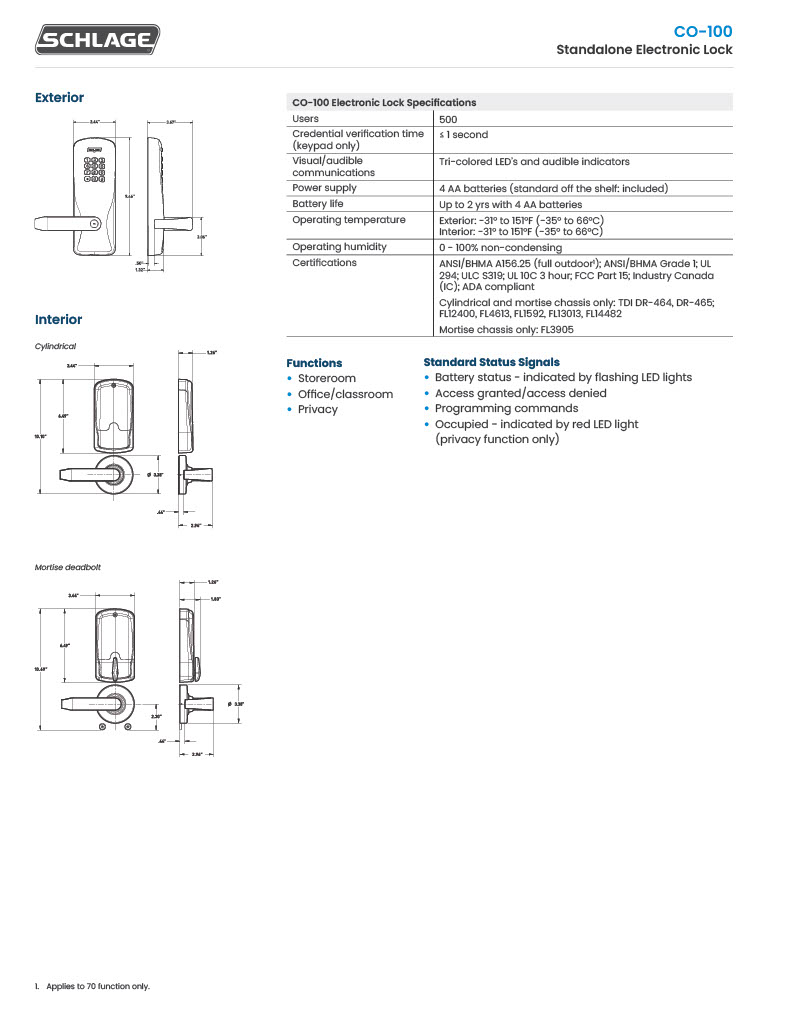

1-Page2-CO-100

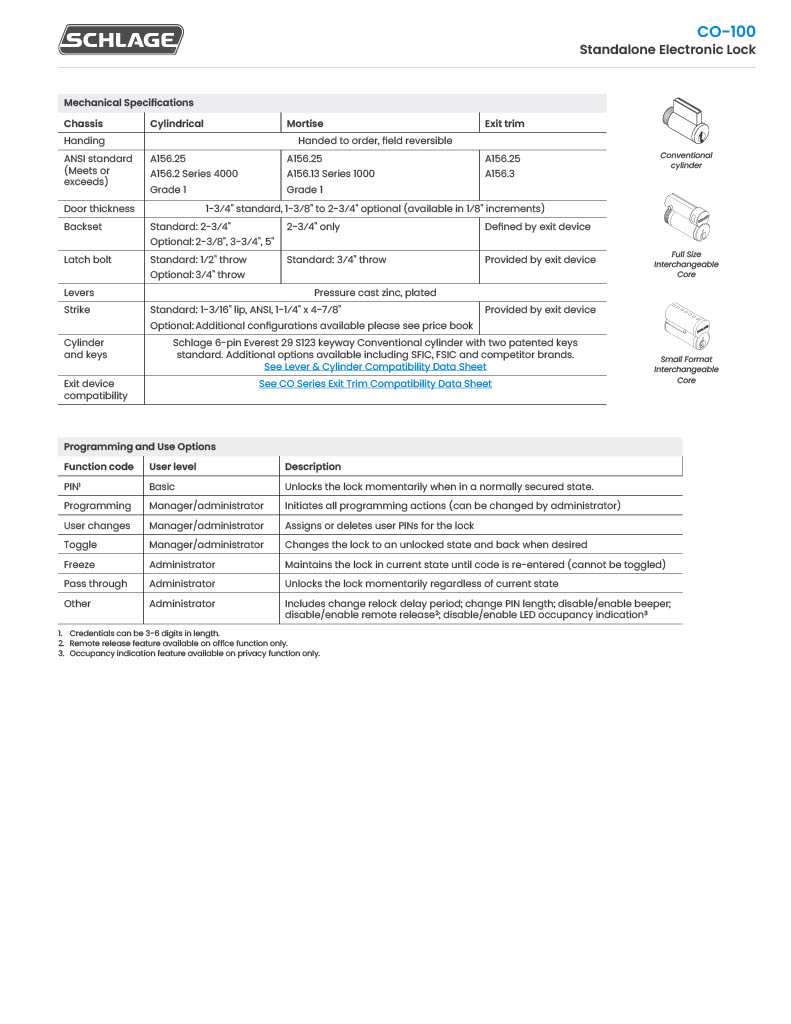

1-Page3-CO-100

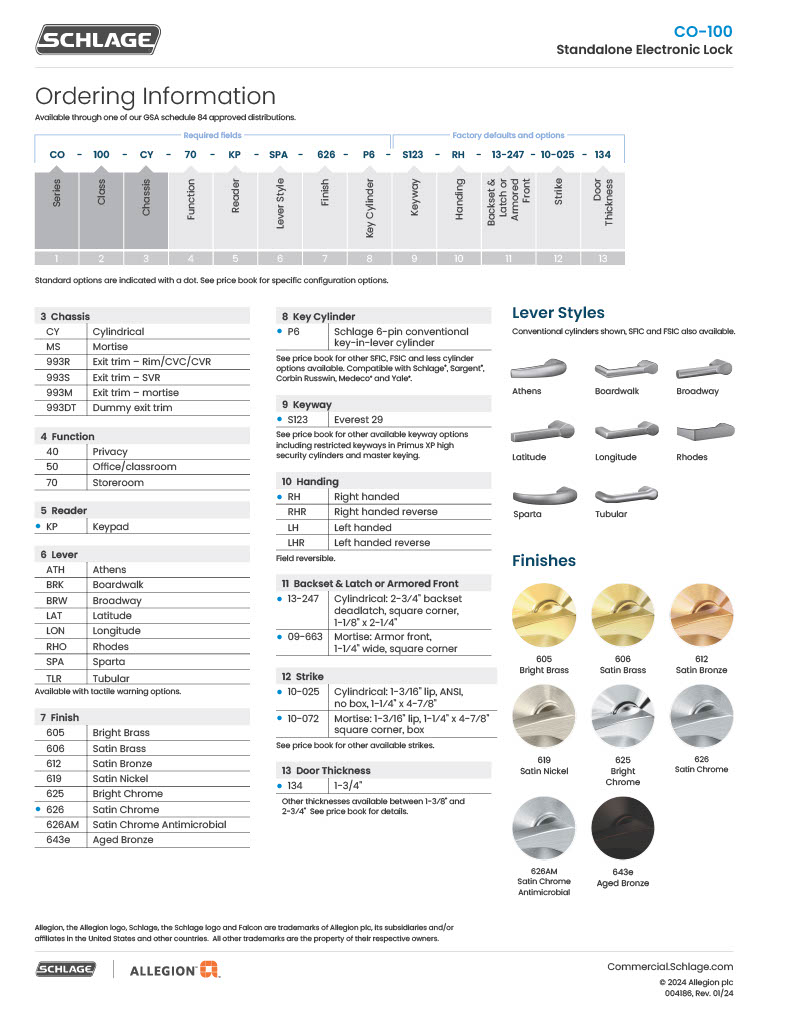

1-Page4-CO-100
CO-100-CY-40-KP
1-Page1-CO-100
1-Page2-CO-100
1-Page3-CO-100
1-Page4-CO-100
naxt
prev

Product Details

Schlage CO-100-CY-40-KP Cylindrical Keypad Electronic Lock - Privacy Function Lever Styles:

**

**

**



Privacy function (40)

Unlocks with a valid credential, and relocks automatically

Allows the user to press the inside button to leave door unlocked, eliminating the need for a credential to open the door

The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock.*Unique PIN codes can be assigned to each user.*This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime right at the door.

Manually Programmable

**12 button keypad

Up to 500 unique 3-6 digit PIN codes stored on the lock**

Normal, toggle, pass through, and freeze credential attributes available

Mechanical key override is standard and compatible with multiple cylinder types

**Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries

Operating Temperature: Exterior -31to 151 F (-35to 66 C) - Interior 32to 120 F (0to 49 C) due to battery

Operating Humidity: 0 - 100% non-condensing**

ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 listed**

*Door Thickness:1-3/4standard, 1-3/8to 2-3/4optional (available in 1/8increments)*

*Backset:2-3/4˝ standard, 2-3/8˝, 3-3/4˝ and 5˝ optional*

*Latch Bolt:1/2˝ throw security latch standard 3/4throw optional*

*Levers:Pressure cast zinc, plated to match finish symbols*

*Strike:ANSI curved lip strike 1-1/4˝ x 4-7/8˝ x 1-3/16˝ lip  to center standard, optional strikes, lip lengths and  ANSI strike box available*

Model: Schlage CO100CY40KPRHO605PD, CO100CY40KPRHO606PD, CO100CY40KPRHO612PD, CO100CY40KPRHO625PD, CO100CY40KPRHO626PD, CO100CY40KPRHO643EPD, CO100CY40KPRHO605BD, CO100CY40KPRHO606BD, CO100CY40KPRHO612BD, CO100CY40KPRHO625BD, CO100CY40KPRHO626BD, CO100CY40KPRHO643EBD, CO100CY40KPRHO605JD, CO100CY40KPRHO606JD, CO100CY40KPRHO612JD, CO100CY40KPRHO625JD, CO100CY40KPRHO626JD, CO100CY40KPRHO643EJD

Schlage CO100CY40KPSPA605PD, CO100CY40KPSPA606PD, CO100CY40KPSPA612PD, CO100CY40KPSPA625PD, CO100CY40KPSPA626PD, CO100CY40KPSPA643EPD, CO100CY40KPSPA605BD, CO100CY40KPSPA606BD, CO100CY40KPSPA612BD, CO100CY40KPSPA625BD, CO100CY40KPSPA626BD, CO100CY40KPSPA643EBD, CO100CY40KPSPA605JD, CO100CY40KPSPA606JD, CO100CY40KPSPA612JD, CO100CY40KPSPA625JD, CO100CY40KPSPA626JD, CO100CY40KPSPA643EJD

Schlage CO100CY40KPATH605PD, CO100CY40KPATH606PD, CO100CY40KPATH612PD, CO100CY40KPATH625PD, CO100CY40KPATH626PD, CO100CY40KPATH643EPD, CO100CY40KPATH605BD, CO100CY40KPATH606BD, CO100CY40KPATH612BD, CO100CY40KPATH625BD, CO100CY40KPATH626BD, CO100CY40KPATH643EBD, CO100CY40KPATH605JD, CO100CY40KPATH606JD, CO100CY40KPATH612JD, CO100CY40KPATH625JD, CO100CY40KPATH626JD, CO100CY40KPATH643EJD

Schlage CO100CY40KPTLR605PD, CO100CY40KPTLR606PD, CO100CY40KPTLR612PD, CO100CY40KPTLR625PD, CO100CY40KPTLR626PD, CO100CY40KPTLR643EPD, CO100CY40KPTLR605BD, CO100CY40KPTLR606BD, CO100CY40KPTLR612BD, CO100CY40KPTLR625BD, CO100CY40KPTLR626BD, CO100CY40KPTLR643EBD,

Schlage CO-100-CY-40-KP Cylindrical Keypad Electronic Lock - Privacy Function

SKU: CO100CY40KP

In Stock
Picture for manufacturer Schlage
icon Chat

$492.78

Lever *

RHO - Rhodes Lever
RHO - Rhodes Lever
SPA - Sparta Lever
SPA - Sparta Lever
ATH - Athens Lever
ATH - Athens Lever
TLR - Tubular Lever
TLR - Tubular Lever

Finish *

626 - Satin Chrome
626 - Satin Chrome
605 - Bright Brass [+$86.73]
605 - Bright Brass [+$86.73]
606 - Satin Brass [+$86.73]
606 - Satin Brass [+$86.73]
612 - Satin Bronze [+$86.73]
612 - Satin Bronze [+$86.73]
643E - Aged Bronze [+$86.73]
643E - Aged Bronze [+$86.73]
625 - Bright Chrome [+$86.73]
625 - Bright Chrome [+$86.73]

Cylinder *

About this item

The Schlage CO-100-CY-40-KP is a standalone electronic keypad lock in the CO Series - cylindrical body, privacy function, keypad access. If you landed here searching "schlage co-100", "co-100-cy", "co lock", or "40 kp", here's how the model number reads: CO Series, 100 series programming platform, CY for cylindrical chassis, 40 for the privacy function, KP for keypad. No network. No server. It just works from a PIN and a battery.



What Function 40 Privacy Means



Most electronic access locks work one way - enter a code, door opens. The CO-100 function 40 is different. It's a privacy lock, and the control lives on the inside.



There's a pushbutton on the inside housing. Someone inside presses it once and the keypad on the outside stops working - no code will open that door from the pull side. The person inside is secure. They unlock it by pressing the same button a second time, or the privacy status clears automatically when the door opens. That's it.



This is what you'd spec for single-occupancy restrooms, nursing bays, fitting rooms, dressing areas - spaces where temporary individual occupancy means the outside needs to go dark. The CO-100 privacy function can also be programmed to display occupancy indication on the outside, giving staff a visual cue that the space is in use.



500 Codes, No Network Needed



The lock stores up to 500 individual PIN codes, each between 3 and 6 digits. Programming happens at the lock itself. There's no app, no cloud subscription, no IT department required. For a small facility or a single secured private space, you set it up, hand out codes, and it runs. Four AA batteries power the whole thing for up to two years.



Key override comes standard. The lock ships with a mechanical cylinder that accepts a physical key - useful when someone forgets their code, when maintenance needs access, or when a code needs to be bypassed quickly. That cylinder is compatible with multiple key systems, so it can fit into an existing master key program rather than creating a standalone credential.



CY Chassis: What That Means for Your Door



CY means cylindrical. The lock installs in a standard ANSI 161 cylindrical door preparation - the same prep your building uses for most interior commercial locks. No special machining, no mortise pocket, no recutting. If you're replacing an existing cylindrical lever lock on a privacy door, the CO-100-CY drops into the same holes.



The CO-100 platform also comes in mortise (M), mortise deadbolt (MD), and exit trim chassis. The electronic guts and programming platform are the same across all chassis types - only the lockbody changes. So if your project has some mortise-prepped doors alongside cylindrical ones, both can run the same CO-100 credential system.



IC Core Options



Standard configurations use a conventional key cylinder. If your facility runs SFIC (Small Format Interchangeable Core), specify the -B suffix variant. If you're on FSIC (Full Size Interchangeable Core), specify the -J suffix. Both options sell less core - your existing cores drop in after installation and the lock integrates into your current key system immediately.



Specifications



Model: Schlage CO-100-CY-40-KP

Series: CO-100 Series Standalone Electronic Lock

Chassis: CY - Cylindrical, ANSI 161 door prep

Function: 40 - Privacy with interior pushbutton (IPB)

Access: KP - Keypad

Code Capacity: Up to 500 individual 3-6 digit PINs

Privacy Mode: Interior pushbutton disables exterior keypad; cleared by second press or door opening

Battery: 4 AA included, up to 2-year life

Key Override: Mechanical, standard

Grade: ANSI/BHMA A156.25 Grade 1, UL 294 Listed

Operation: Standalone, no network required

IC Options: Standard; SFIC (-B); FSIC (-J)

Applications: Restrooms, nursing stations, fitting rooms, dressing rooms



American Locksets has stocked Schlage CO Series electronic locks since launch.



Resources

Schlage CO-100-CY-40-KP Cylindrical Keypad Electronic Lock - Privacy Function Lever Styles:

**

**

**



Privacy function (40)

Unlocks with a valid credential, and relocks automatically

Allows the user to press the inside button to leave door unlocked, eliminating the need for a credential to open the door

The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock.*Unique PIN codes can be assigned to each user.*This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime right at the door.

Manually Programmable

**12 button keypad

Up to 500 unique 3-6 digit PIN codes stored on the lock**

Normal, toggle, pass through, and freeze credential attributes available

Mechanical key override is standard and compatible with multiple cylinder types

**Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries

Operating Temperature: Exterior -31to 151 F (-35to 66 C) - Interior 32to 120 F (0to 49 C) due to battery

Operating Humidity: 0 - 100% non-condensing**

ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 listed**

*Door Thickness:1-3/4standard, 1-3/8to 2-3/4optional (available in 1/8increments)*

*Backset:2-3/4˝ standard, 2-3/8˝, 3-3/4˝ and 5˝ optional*

*Latch Bolt:1/2˝ throw security latch standard 3/4throw optional*

*Levers:Pressure cast zinc, plated to match finish symbols*

*Strike:ANSI curved lip strike 1-1/4˝ x 4-7/8˝ x 1-3/16˝ lip  to center standard, optional strikes, lip lengths and  ANSI strike box available*

Model: Schlage CO100CY40KPRHO605PD, CO100CY40KPRHO606PD, CO100CY40KPRHO612PD, CO100CY40KPRHO625PD, CO100CY40KPRHO626PD, CO100CY40KPRHO643EPD, CO100CY40KPRHO605BD, CO100CY40KPRHO606BD, CO100CY40KPRHO612BD, CO100CY40KPRHO625BD, CO100CY40KPRHO626BD, CO100CY40KPRHO643EBD, CO100CY40KPRHO605JD, CO100CY40KPRHO606JD, CO100CY40KPRHO612JD, CO100CY40KPRHO625JD, CO100CY40KPRHO626JD, CO100CY40KPRHO643EJD

Schlage CO100CY40KPSPA605PD, CO100CY40KPSPA606PD, CO100CY40KPSPA612PD, CO100CY40KPSPA625PD, CO100CY40KPSPA626PD, CO100CY40KPSPA643EPD, CO100CY40KPSPA605BD, CO100CY40KPSPA606BD, CO100CY40KPSPA612BD, CO100CY40KPSPA625BD, CO100CY40KPSPA626BD, CO100CY40KPSPA643EBD, CO100CY40KPSPA605JD, CO100CY40KPSPA606JD, CO100CY40KPSPA612JD, CO100CY40KPSPA625JD, CO100CY40KPSPA626JD, CO100CY40KPSPA643EJD

Schlage CO100CY40KPATH605PD, CO100CY40KPATH606PD, CO100CY40KPATH612PD, CO100CY40KPATH625PD, CO100CY40KPATH626PD, CO100CY40KPATH643EPD, CO100CY40KPATH605BD, CO100CY40KPATH606BD, CO100CY40KPATH612BD, CO100CY40KPATH625BD, CO100CY40KPATH626BD, CO100CY40KPATH643EBD, CO100CY40KPATH605JD, CO100CY40KPATH606JD, CO100CY40KPATH612JD, CO100CY40KPATH625JD, CO100CY40KPATH626JD, CO100CY40KPATH643EJD

Schlage CO100CY40KPTLR605PD, CO100CY40KPTLR606PD, CO100CY40KPTLR612PD, CO100CY40KPTLR625PD, CO100CY40KPTLR626PD, CO100CY40KPTLR643EPD, CO100CY40KPTLR605BD, CO100CY40KPTLR606BD, CO100CY40KPTLR612BD, CO100CY40KPTLR625BD, CO100CY40KPTLR626BD, CO100CY40KPTLR643EBD,

CO-100-CY-40-KP
Schlage CO-100-CY-40-KP Cylindrical Keypad Electronic Lock - Privacy Function

Product code: CO100CY40KP

In Stock

$492.78

$492.78

Users: 500

Credential Verification Time: ≤ 1 second

Visual/Audible Communications Tri-colored LEDs & audible indicators

Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries, Battery Status - indicated by blinking lights

Operating Temperature - Exterior -31  to 151 F (-35  to 66 C)

Operating Temperature - Interior 32  to 120 F (0  to 49 C) due to battery

Operating Humidity: 0 - 100% non-condensing

Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10 C, FCC Part 15, ADA and RoHS

CO-100-CY-40-KP
Schlage CO-100-CY-40-KP Cylindrical Keypad Electronic Lock - Privacy Function

Product code: CO100CY40KP

In Stock

$492.78

$492.78

Schlage CO-100-CY-40-KP Cylindrical Keypad Electronic Lock - Privacy Function
