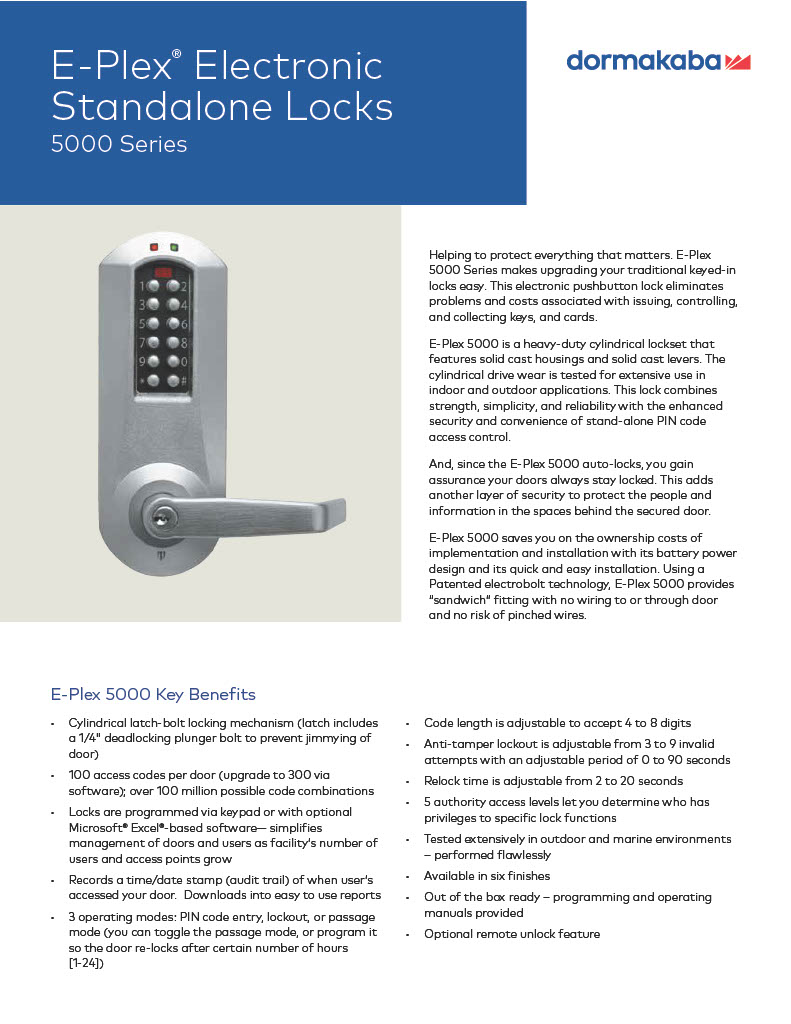

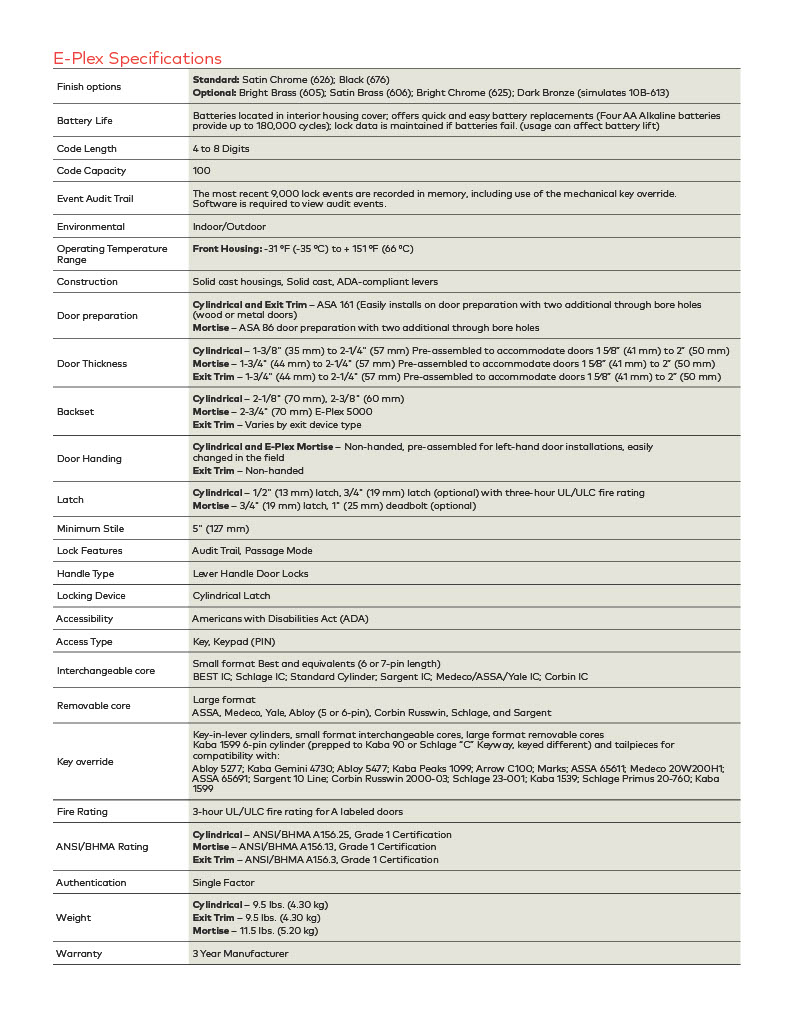

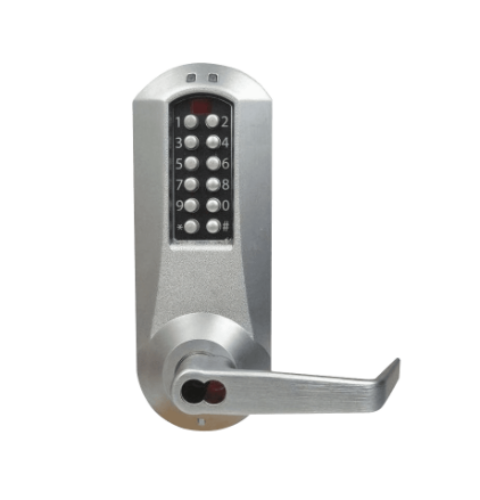

Dormakaba E5031SWL, Electronic Pushbutton Lock, IC Core for Schlage

Dormakaba* 5000 E5031-S-WL*

Key Override - Interchangeable Core for "Schlage" Removable Core, Core not Included

Electronic pushbutton lock - 100 access codes per door (upgrade to 300 via software).

Locks are programmed via keypad or with optional Microsoft Excel based software - Simplifies management of doors and users

Non Handed: pre-assembled for left hand door - easily changed in the field

Three Operation Modes: PIN access Lockout Passage can be toggled on/off or can be pre-programmed to relock after a certain number of hours

Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.

Batteries located in interior housing cover; offers quick and easy battery replacements (Four AA Alkaline batteries provide up to 180,000 cycles); lock data is maintained if batteries fail

Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for exten- sive use in indoor and outdoor applications

Cylindrical latch with 3-hour UL/ULC fire rating

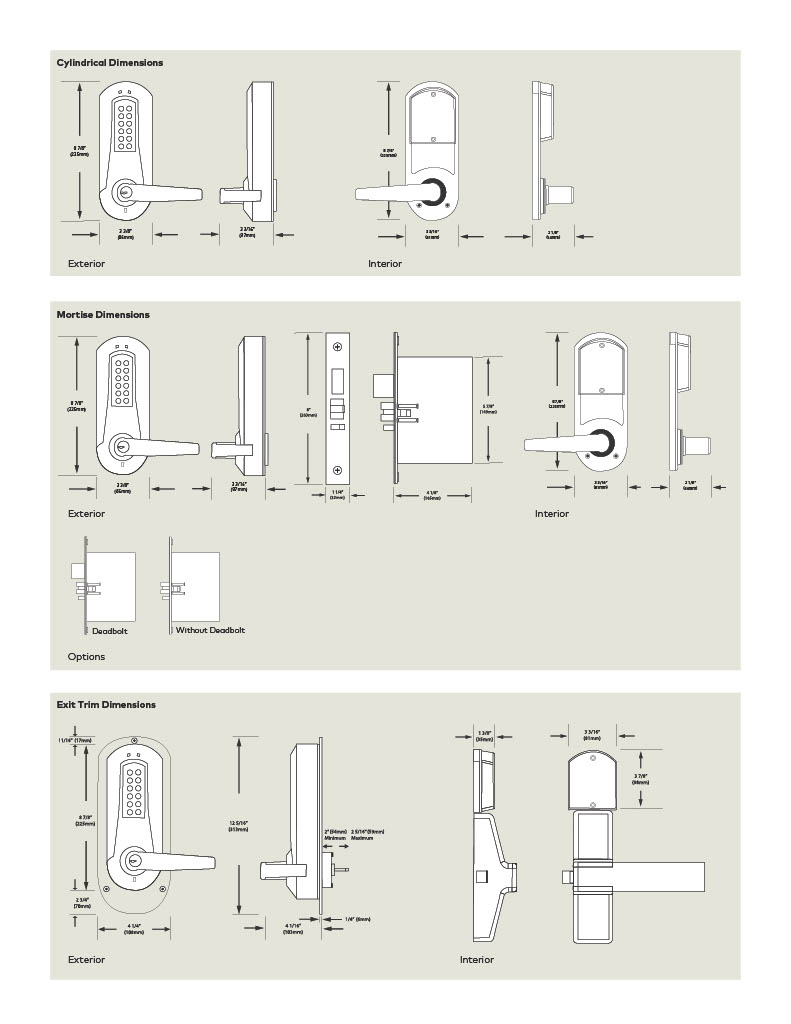

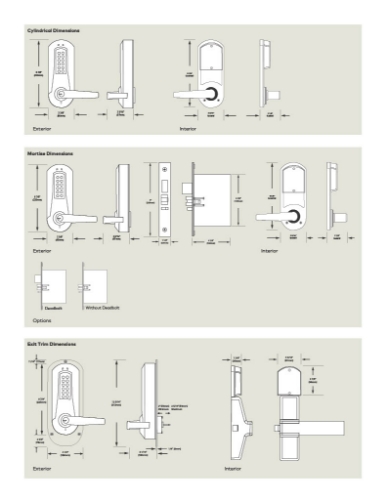

Door Thickness: 1 3⁄8" (35 mm) to 2 1⁄4" (57 mm) Pre-assembled to accommodate doors 1 5⁄8" (41 mm) to 2" (50 mm)

ANSI/BHMA A156.25, Grade 1 Certified

Indoor/Outdoor Approved Front Housing: -31F (-35C) to + 151F (66C) Rear Housing: -31F (-35C) to + 130F (55C)

Warranty: Three-year warranty from date of installation; built-in warranty counter in lock memory

Model:Dormakaba Ilco E5031SWL62641, E5031SWL626, E5031SWL26D41, E5031SWL26D, Simplex Eplex 5000, E Plex 5031, E5031, E503126D
