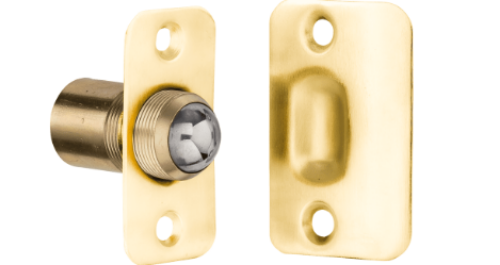

Ives Dual Adjustable 349 Ball Catch

**Ives 349 Ball Catch

**For catch in door installations.

Radiused corners allow easy installation with a router.

Dual adjustment for door clearance and holding strength.

Lip strike is designed for use where strike is mounted in jamb.

Free rolling ball insures smooth, positive and trouble-free action.

Adjustable threaded barrel compensates for various door clearances.

Adjustable spring tension.

Made from wrought brass.

**Dimensions

**Face Plate: 1" Wide x 2-1/8" High

Bore: 7/8" Diameter x 1-3/8" Deep

Strike: 1-3/8" Wide x 2-1/8" High, Lip to center- 7/8"

Finishes: B3 - Brass Material - Bright Brass (605)  B4 - Brass Material - Satin Brass (606)  B5 - Brass Material - Antique Brass (609)  B10 - Bronze Material - Satin Bronze (612)  B10B - Bronze Material - Oil Rubbed Bronze (613)  B15 - Brass Material - Satin Nickel (619)  B26 - Brass Material - Polished Chrome Plated (625)  B26D - Brass Material - Satin Chrome Plated (626)  B716 - Brass/Bronze Material - Aged Bronze

Model: 349B3, 349B4, 349B5, 349B10, 349B10B, 349B15, 349B26, 349B26D, 349B716
