Keypad/Prox Locks
Electronic Keypad/Proximity Lock
Dormakaba Electric Keypad/Proximity Locks
Dormakaba Eplex 5000 Series

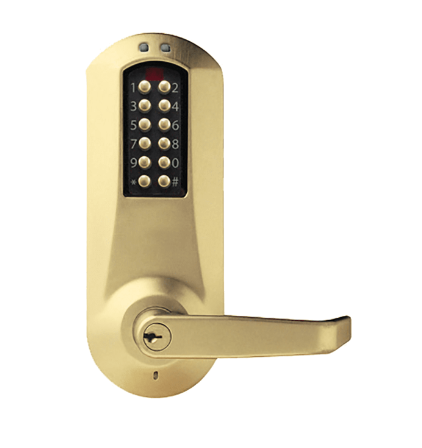

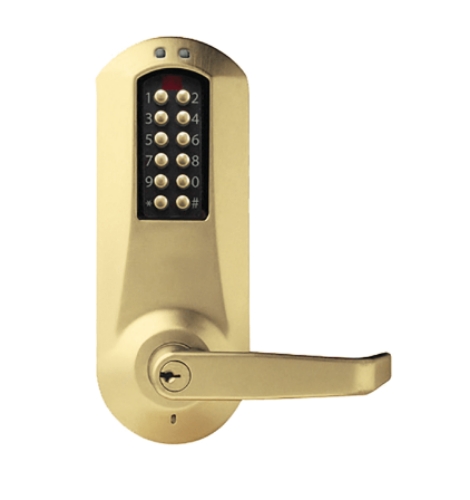

Dormakaba E5031XSWL-606-41, Electronic Pushbutton Lock, Satin Brass

Dormakaba E5031XSWL-606-41, Electronic Pushbutton Lock, Satin Brass

E5031XSWL-606-41

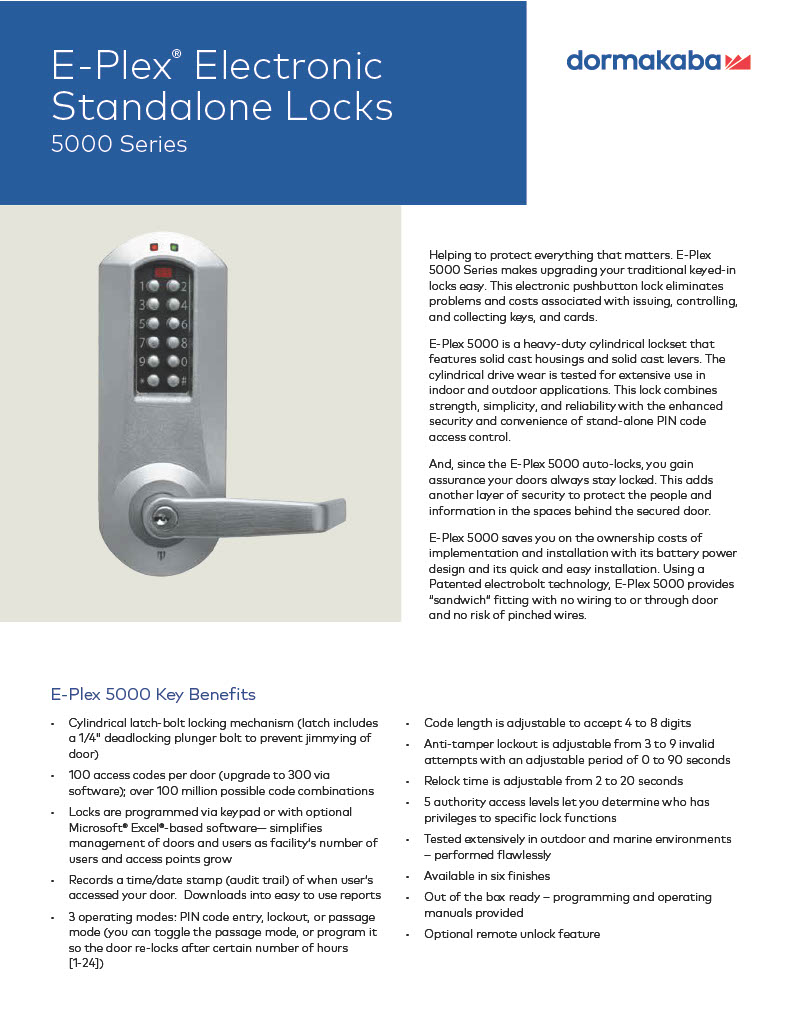

1-Page1-PLEX-5000

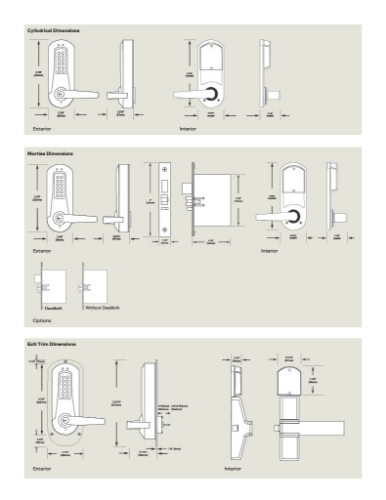

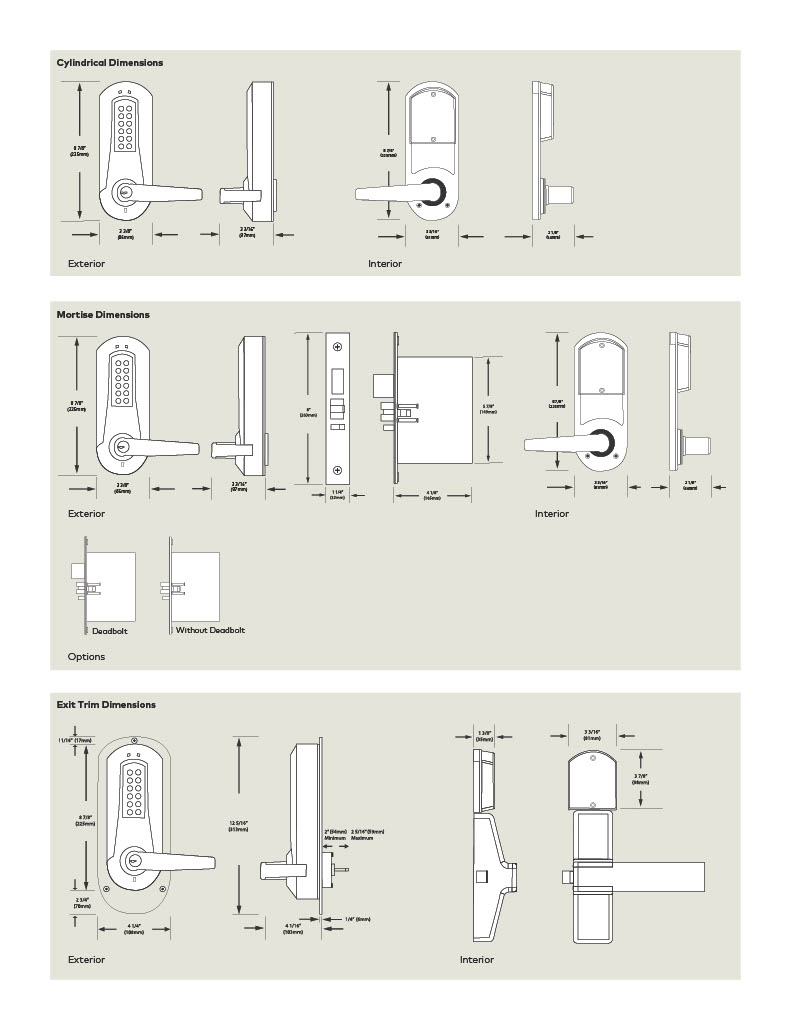

1-Page2-PLEX-5000

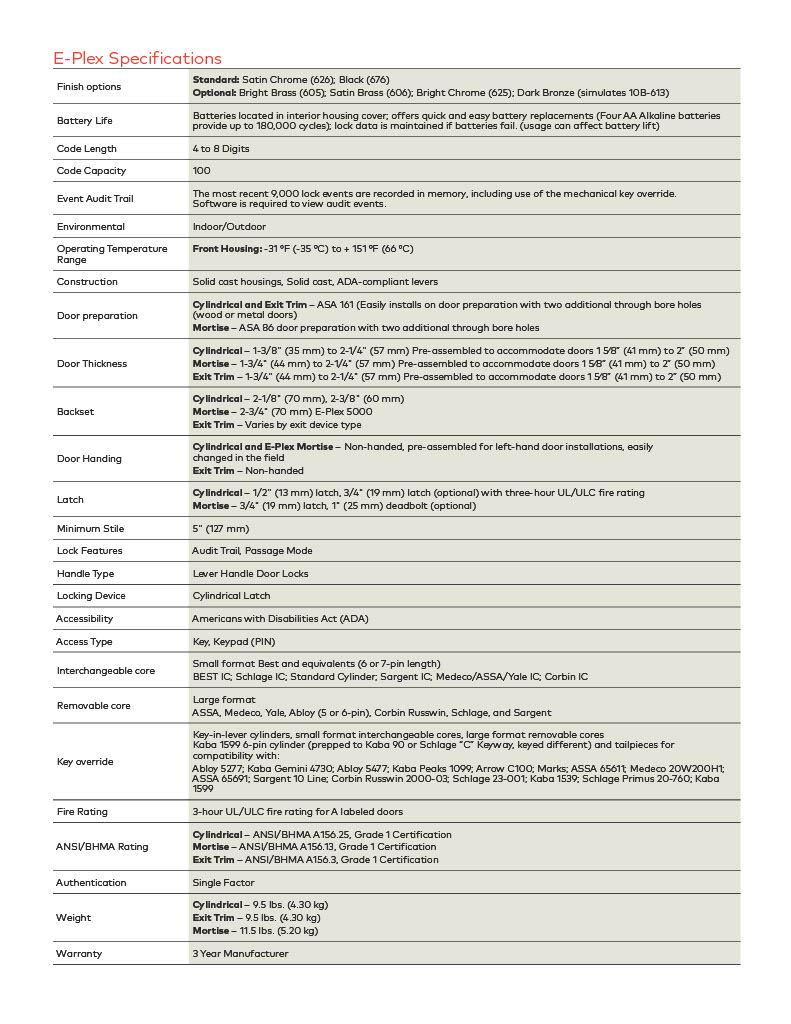

1-Page3-PLEX-5000

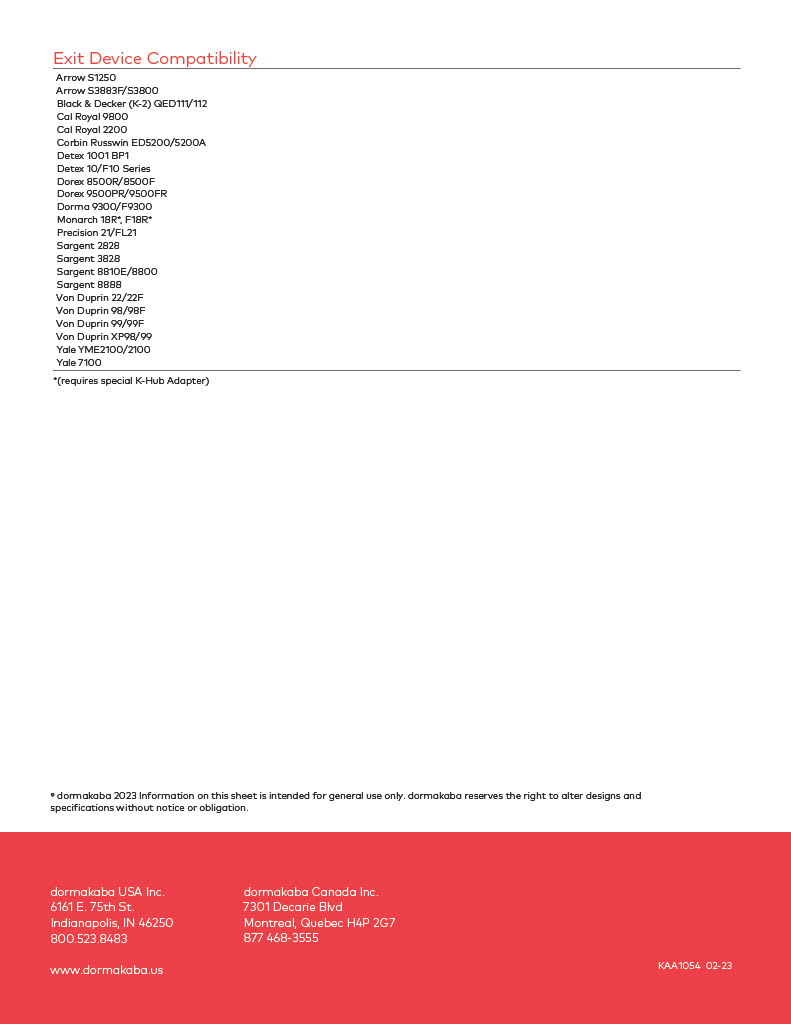

1-Page4-PLEX-5000

E5031XSWL-606-41

1-Page1-PLEX-5000

1-Page2-PLEX-5000

1-Page3-PLEX-5000

1-Page4-PLEX-5000

Product Details

Dormakaba *5000 E5031-XS-LL*

Key Override - Kaba 6 Pin Cylinder Schlage "C" Keyway, Cylinder Included

Electronic pushbutton lock - 100 access codes per door (upgrade to 300 via software).

Locks are programmed via keypad or with optional Microsoft Excel based software - Simplifies management of doors and users

Non Handed: pre-assembled for left hand door - easily changed in the field

Three Operation Modes: PIN access Lockout Passage can be toggled on/off or can be pre-programmed to relock after a certain number of hours

Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.

Batteries located in interior housing cover; offers quick and easy battery replacements (Four AA Alkaline batteries provide up to 180,000 cycles); lock data is maintained if batteries fail

Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for exten- sive use in indoor and outdoor applications

Cylindrical latch with 3-hour UL/ULC fire rating

Door Thickness: 1 3⁄8" (35 mm) to 2 1⁄4" (57 mm) Pre-assembled to accommodate doors 1 5⁄8" (41 mm) to 2" (50 mm)

ANSI/BHMA A156.25, Grade 1 Certified

Indoor/Outdoor Approved Front Housing: -31F (-35C) to + 151F (66C) Rear Housing: -31F (-35C) to + 130F (55C)

Warranty: Three-year warranty from date of installation; built-in warranty counter in lock memory

Model:DormakabaIlco E5031XSWL60641, E5031XSWL606, E5031XSWL0441, E5031XSWL04, Simplex Eplex 5000, E Plex 5031, E5031, E5031606

Dormakaba E5031XSWL-606-41, Electronic Pushbutton Lock, Satin Brass

SKU: E5031XSWL60641

In Stock

$881.05

$1,315.00

You saved $433.95

About this item

Dormakaba 5000 Series is a Heavy Duty Commercial Grade 1 Certified Electronic Keypad Lockset with 100 Access Codes, No Wiring, No Keys, Long Battery Life, Programmable Features, Multiple Authority Levels, Easy to Install

Resources

E-Plex_5000_Fact_Sheet.pdf

Dormakaba *5000 E5031-XS-LL*

Key Override - Kaba 6 Pin Cylinder Schlage "C" Keyway, Cylinder Included

Electronic pushbutton lock - 100 access codes per door (upgrade to 300 via software).

Locks are programmed via keypad or with optional Microsoft Excel based software - Simplifies management of doors and users

Non Handed: pre-assembled for left hand door - easily changed in the field

Three Operation Modes: PIN access Lockout Passage can be toggled on/off or can be pre-programmed to relock after a certain number of hours

Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.

Batteries located in interior housing cover; offers quick and easy battery replacements (Four AA Alkaline batteries provide up to 180,000 cycles); lock data is maintained if batteries fail

Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for exten- sive use in indoor and outdoor applications

Cylindrical latch with 3-hour UL/ULC fire rating

Door Thickness: 1 3⁄8" (35 mm) to 2 1⁄4" (57 mm) Pre-assembled to accommodate doors 1 5⁄8" (41 mm) to 2" (50 mm)

ANSI/BHMA A156.25, Grade 1 Certified

Indoor/Outdoor Approved Front Housing: -31F (-35C) to + 151F (66C) Rear Housing: -31F (-35C) to + 130F (55C)

Warranty: Three-year warranty from date of installation; built-in warranty counter in lock memory

Model:DormakabaIlco E5031XSWL60641, E5031XSWL606, E5031XSWL0441, E5031XSWL04, Simplex Eplex 5000, E Plex 5031, E5031, E5031606

E5031XSWL-606-41

Dormakaba E5031XSWL-606-41, Electronic Pushbutton Lock, Satin Brass

Product code: E5031XSWL60641

In Stock

$1,315.00

$881.05

E5031XSWL-606-41

Dormakaba E5031XSWL-606-41, Electronic Pushbutton Lock, Satin Brass

Product code: E5031XSWL60641

In Stock

$1,315.00

$881.05
